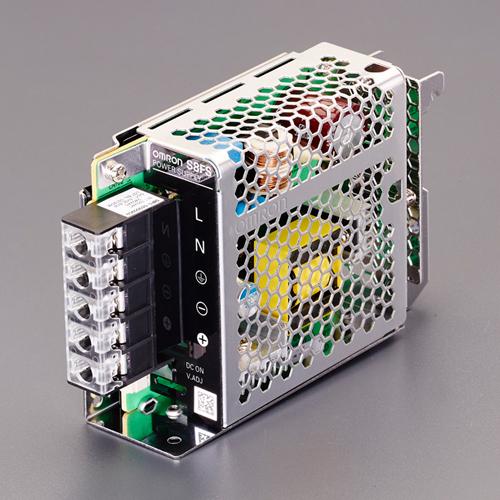

ESCO Switching Power Supply (Rail Mount) DC12V/30W EA940DN-76A
JAN
4550061436837
ASIN
B08VPGWBXP
Maker
Model No.
EA940DN-76A
Color
Size
Description
Brand Name: Esco
Model: S8FS-G03012CD
Efficiency: 84% typ. (at AC100V input) 86% typ. (at AC200V input) 86% typ. (at AC230V input)
Output Voltage: DC12V, Output Capacity: 30W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 3A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 60mV(p-p) or less at AC100~240V input, Output hold time: 10ms typ. (50ms typ. at AC100V input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.72A typ. (0.43A typ. at AC100V input) (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436837
ESCO Switching Power Supply (Rail Mount) DC12V/30W EA940DN-76A
(text created at , 2025-05-09)
Model: S8FS-G03012CD
Efficiency: 84% typ. (at AC100V input) 86% typ. (at AC200V input) 86% typ. (at AC230V input)
Output Voltage: DC12V, Output Capacity: 30W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 3A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 60mV(p-p) or less at AC100~240V input, Output hold time: 10ms typ. (50ms typ. at AC100V input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.72A typ. (0.43A typ. at AC100V input) (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436837
ESCO Switching Power Supply (Rail Mount) DC12V/30W EA940DN-76A
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
109x52x235 mm
Package
Weight (Approx.):
Weight (Approx.):
394 g
6,779 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-08-28
Quantity :
Reference Price from Other Stores
