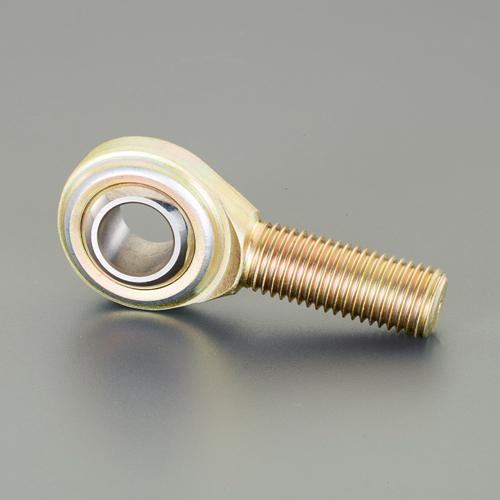

M10xP1.5 Rod End (Self-Lubricating/Male Thread/Right-Hand Thread) A:10, B:14, C:48, D:26
JAN
4550061462546
ASIN
B092HCL87K
Maker
Model No.
EA966DH-10A
Color
Size
A: 10, B: 14, C: 48, D: 26
Description
Screw…M10
Size (mm)…A: 10, B: 14, C: 48, D: 26
Material…Housing: Structural carbon steel (S35C, zinc-plated surface) Insert: Teflon (PTFE) Ball: High-carbon chromium bearing steel (SUJ2 HRC58 or higher)
Shaft bore diameter…10mm
Weight (g)…60
Radial load…1050kgf
Axial load…390kgf
Pitch…1.5mm
Right-hand thread
Lubrication-free type
Brand Name: Esco
Screw...M10
Size (mm)...A: 10, B: 14, C: 48, D: 26
Material...Housing: Structural Carbon Steel (S35C Surface Zinc Plated) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Shaft Hole Diameter…10mm
4550061462546
M10xP1.5 Rod End (Non-Lubricated Type/Male Thread/Right-Hand Thread) A:10, B:14, C:48, D:26
(text created at , 2025-05-09)
Size (mm)…A: 10, B: 14, C: 48, D: 26
Material…Housing: Structural carbon steel (S35C, zinc-plated surface) Insert: Teflon (PTFE) Ball: High-carbon chromium bearing steel (SUJ2 HRC58 or higher)
Shaft bore diameter…10mm
Weight (g)…60
Radial load…1050kgf
Axial load…390kgf
Pitch…1.5mm
Right-hand thread
Lubrication-free type
Brand Name: Esco
Screw...M10
Size (mm)...A: 10, B: 14, C: 48, D: 26
Material...Housing: Structural Carbon Steel (S35C Surface Zinc Plated) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Shaft Hole Diameter…10mm
4550061462546
M10xP1.5 Rod End (Non-Lubricated Type/Male Thread/Right-Hand Thread) A:10, B:14, C:48, D:26
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
1,603 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-04-01
Quantity :
Reference Price from Other Stores
