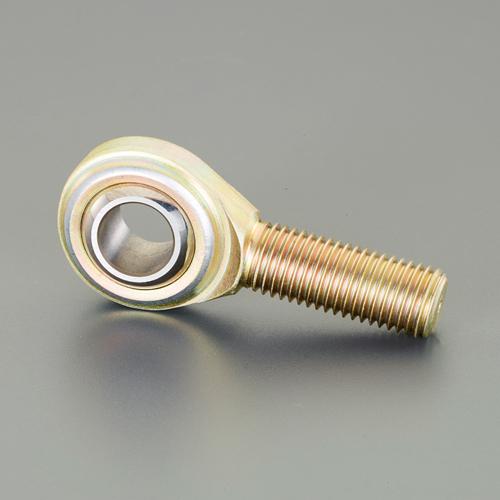

M12xP1.75 Rod End (Self-Lubricating/Male Thread/Right-Hand Thread)
JAN
4550061462553
ASIN
B08VP8HFV8
Maker
Model No.
EA966DH-12A
Color
Size
A: 12, B: 16, C: 54, D: 30
Description
M12xP1-75-Rod End-Lubrication-Free-Male Thread-Right-Hand Thread
Screw: M12 Size (mm): A: 12, B: 16, C: 54, D: 30 Material: Housing: Structural Carbon Steel (S35C, Zinc-Plated Surface) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Bore Diameter: 12mm Weight (g): 89 Radial Load: 1300kgf
Axial Load: 500kgf Pitch: 1.75mm Right-Hand Thread
Lubrication-Free Type
Brand Name: Esco
Material: Alloy Steel
Screw: M12 Size (mm): A:12, B:16, C:54, D:30 Material: Housing: Structural Carbon Steel (S35C Surface Zinc Plated) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Bore Diameter: 12mm Weight (g): 89 Radial Load: 1300kgf
Axial Load: 500kgf Pitch: 1.75mm Right-Hand Thread
Non-Lubricated Type
4550061462553
M12xP1.75 Rod End (Lubrication-Free Type/Male Thread/Right-Hand Thread)
(text created at , 2025-05-10)
Screw: M12 Size (mm): A: 12, B: 16, C: 54, D: 30 Material: Housing: Structural Carbon Steel (S35C, Zinc-Plated Surface) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Bore Diameter: 12mm Weight (g): 89 Radial Load: 1300kgf
Axial Load: 500kgf Pitch: 1.75mm Right-Hand Thread
Lubrication-Free Type
Brand Name: Esco
Material: Alloy Steel
Screw: M12 Size (mm): A:12, B:16, C:54, D:30 Material: Housing: Structural Carbon Steel (S35C Surface Zinc Plated) Insert: Teflon (PTFE) Ball: High Carbon Chrome Bearing Steel (SUJ2 HRC58 or higher)
Bore Diameter: 12mm Weight (g): 89 Radial Load: 1300kgf
Axial Load: 500kgf Pitch: 1.75mm Right-Hand Thread
Non-Lubricated Type
4550061462553
M12xP1.75 Rod End (Lubrication-Free Type/Male Thread/Right-Hand Thread)
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
118x21x165 mm
Package
Weight (Approx.):
Weight (Approx.):
80 g
1,920 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-04-09
Quantity :
Reference Price from Other Stores
