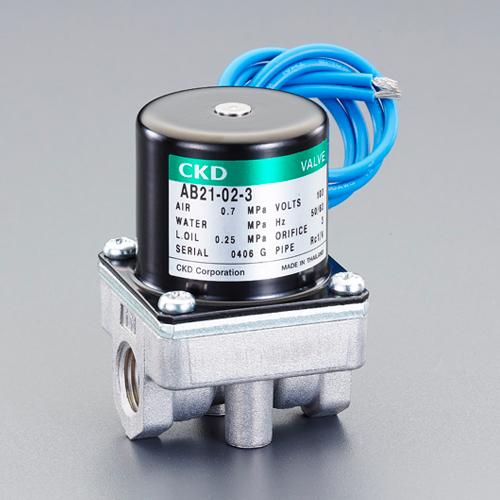

ESCO 2-Way Solenoid Valve AC100V/φ8mm EA153HB-2

4550061483855

B08TB4Y9ST

EA153HB-2

Rated Voltage: AC100V Fluid Type: Compressed Air Maximum Working Pressure: 1.4MPa Ambient Temperature: -20 to 60°C Fluid Temperature: -10 to 60°C (No freezing) Pressure Rating: 2.1 MPa (water pressure)
Heat Resistance Class: Class 130 (B) Valve Structure: Direct-acting poppet structure Material: Body: Aluminum Seal: NBR
Connection Size: Rc3/8 Orifice Diameter (Φmm): 5 Weight (g): 600
Switching Direction: 2-way Operating Temperature Range: -20~60℃ FAB31・41・51 Series

Brand Name: Esco
Material: Body: PBT (Polybutylene Terephthalate)
Rated Voltage: AC100V
Operating Fluid: Compressed Air
Maximum Operating Pressure: 0.7MPa
Ambient Temperature: -5~55℃
Fluid Temperature: 0~55℃ (No freezing) Pressure Resistance: 1.05MPa (Water pressure)
Heat Resistance Class: Class 130(B) Valve Structure: Pilot-operated diaphragm drive
Connection Size: φ8mm (Quick-connect fitting) Weight (g): 57
4550061483855
ESCO 2-Way Solenoid Valve AC100V/φ8mm EA153HB-2
(text created at , 2025-05-12)

89x53x94 mm

84 g
