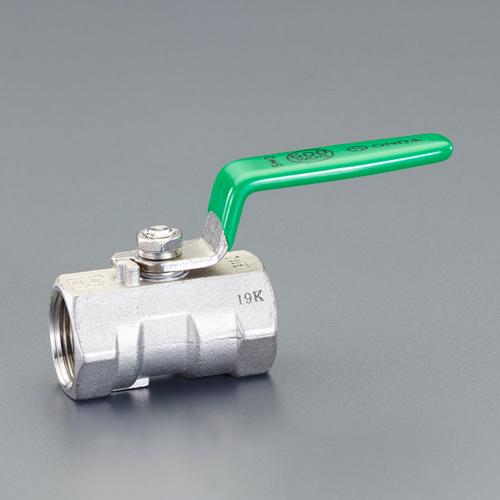

Rc1·1/2 Ball Valve (Stainless Steel)
JAN
4550061509883
ASIN
B08TB783MB
Maker
Model No.
EA470BP-14
Color
Size
1.5 inches
Description
ESCO Ball Valve - Stainless Steel - EA470BP-14
Maximum Working Pressure: Room temperature water, oil, Gases (non-flammable/non-toxic): 5.6MPa Saturated Steam: 1.0MPa
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Operating Temperature Range: -20~180℃
Thread Size (Rc): 1-1/2"
Reduced Bore Type
Brand Name: Esco
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Maximum Working Pressure: Water/Oil at room temperature, Gases (non-flammable/non-toxic): 5.6MPa Saturated Steam: 1.0MPa
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Operating Temperature Range: -20~180℃
Thread Size (Rc): 1-1/2"
Reduced Bore Type
4550061509883
“Rc1·1/2” “Ball Valve (Stainless Steel)”
(text created at , 2025-07-01)
Maximum Working Pressure: Room temperature water, oil, Gases (non-flammable/non-toxic): 5.6MPa Saturated Steam: 1.0MPa
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Operating Temperature Range: -20~180℃
Thread Size (Rc): 1-1/2"
Reduced Bore Type
Brand Name: Esco
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Maximum Working Pressure: Water/Oil at room temperature, Gases (non-flammable/non-toxic): 5.6MPa Saturated Steam: 1.0MPa
Material: Body: SUS304 (SCS13A) Ball Seat: Special PRTE Spindle: SUS304 Packing: PTFE
Operating Temperature Range: -20~180℃
Thread Size (Rc): 1-1/2"
Reduced Bore Type
4550061509883
“Rc1·1/2” “Ball Valve (Stainless Steel)”
(text created at , 2025-07-01)
Package
Size (Approx.):
Size (Approx.):
120x59x273 mm
Package
Weight (Approx.):
Weight (Approx.):
828 g
8,605 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-04-01
Quantity :
Reference Price from Other Stores
