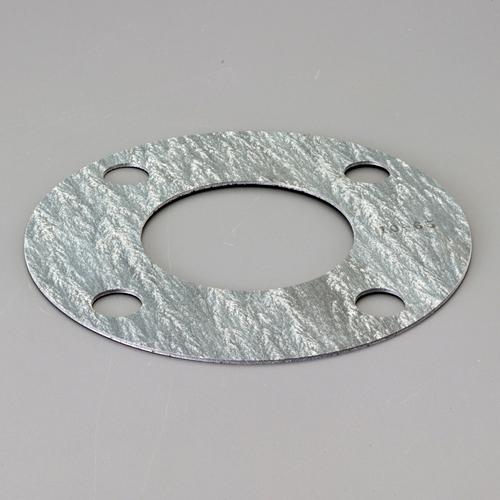

ESCO 25A/3.0mm Full-Face Flange Gasket, High Temperature Use/10K EA351GW-25
JAN
4550061551004
ASIN
B092QV3KTD
Maker
Model No.
EA351GW-25
Color
Size
Description
ESCO-3-0mm-Full-Face Flange Gasket-EA351GW-25
▪️Nominal Diameter…25A
▪️Thickness…3.0mm
▪️Operating Temperature Range…Water-based Fluids: -200~215℃ Oil-based/Gas-based Fluids: -200~260℃
▪️Maximum Pressure…Water/Oil Fluids: 4.0MPa Gas Fluids: 1.0MPa
▪️Material…NBR, Aramid Fiber, Expanded Graphite
▪️Applicable Fluids…Water, Steam, Hot Water, Petroleum Hydrocarbons, Alcohol, Vegetable/Animal Oils, Heat Transfer Fluids, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
▪️Solid-face packing
▪️JIS 10K
▪️Composed primarily of expanded graphite, offering excellent heat resistance, steam resistance, and corrosion resistance
▪️Resistant to scratching and highly flexible
▪️Used in relatively high-temperature flanges, valves, and equipment
Brand Name: Esco
Nominal Diameter…25A
Thickness…3.0mm
Operating Temperature Range…Water-based fluids: -200 to 215°C Oil-based/gas-based fluids: -200 to 260°C
Maximum Pressure…Water/oil-based fluids: 4.0MPa Gas-based fluids: 1.0MPa
Material...NBR, aramid fiber, expanded graphite
4550061551004
ESCO 25A/3.0mm Full Face Flange Gasket for High Temperature/10K EA351GW-25
(text created at , 2025-05-10)
▪️Nominal Diameter…25A
▪️Thickness…3.0mm
▪️Operating Temperature Range…Water-based Fluids: -200~215℃ Oil-based/Gas-based Fluids: -200~260℃
▪️Maximum Pressure…Water/Oil Fluids: 4.0MPa Gas Fluids: 1.0MPa
▪️Material…NBR, Aramid Fiber, Expanded Graphite
▪️Applicable Fluids…Water, Steam, Hot Water, Petroleum Hydrocarbons, Alcohol, Vegetable/Animal Oils, Heat Transfer Fluids, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
▪️Solid-face packing
▪️JIS 10K
▪️Composed primarily of expanded graphite, offering excellent heat resistance, steam resistance, and corrosion resistance
▪️Resistant to scratching and highly flexible
▪️Used in relatively high-temperature flanges, valves, and equipment
Brand Name: Esco
Nominal Diameter…25A
Thickness…3.0mm
Operating Temperature Range…Water-based fluids: -200 to 215°C Oil-based/gas-based fluids: -200 to 260°C
Maximum Pressure…Water/oil-based fluids: 4.0MPa Gas-based fluids: 1.0MPa
Material...NBR, aramid fiber, expanded graphite
4550061551004
ESCO 25A/3.0mm Full Face Flange Gasket for High Temperature/10K EA351GW-25
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
2,166 JPY (Including Tax)
