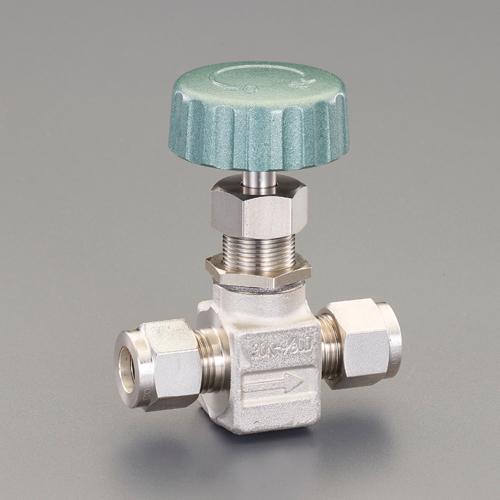

ESCO 1/2" Needle Valve, Stainless Steel, EA470CP-4

4550061565735

B092QVQG98

EA470CP-4

▪️Material…Body: SUS316 Stem: SUS630 Packing: PTFE+PFA Handle: Zinc alloy die-cast Gasket: Non-asbestos sheet\
▪️Service media…Water, oil, gas, chemicals\

▪️Operating Pressure…Water, oil, gas, chemicals at 150°C or below: 19.81MPa Water, oil, gas, chemicals at 100°C or below: 21.77MPa Water, oil, gas, chemicals at -20°C to ambient temperature: 25.50MPa\
▪️Operating Temperature…-20 to 150°C\
▪️Tube Outer Diameter…1/2”\
▪️Not for use with flammable or toxic gases
Brand Name: Esco
Material: Stainless Steel
Material…Body: SUS316 Stem: SUS630 Packing: PTFE+PFA Handle: Zinc Alloy Die-Cast Gasket: Non-Asbestos Sheet
Fluid for Use…Water, Oil, Gas, Chemicals
Working Pressure…Water, Oil, Gas, Chemicals below 150°C: 19.81MPa Water, oil, gas, chemicals at 100℃ or below: 21.77MPa Water, oil, gas, chemicals at -20℃ to ambient temperature: 25.50MPa
Operating Temperature…-20 to 150℃
Tube Outer Diameter…1/2”
4550061565735\ nB092QVQG98
ESCO 1/2" Needle Valve, Stainless Steel EA470CP-4
