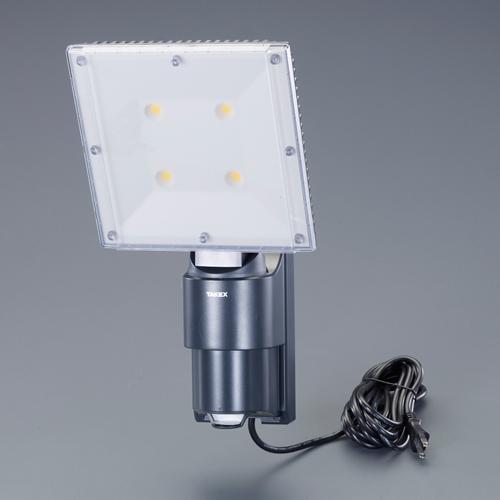

ESCO AC100V/60W LED Sensor Light, Rainproof Type EA864C-53
JAN
4550061566091
ASIN
B092QX3N5Y
Maker
Model No.
EA864C-53
Color
Size
205.2 × 107 × 394.7 (H) mm
Description
▪️Manufacturer… Takenaka Engineering (TAKEX)\
▪️Model Number… LCL-34\
▪️Detection Method… Passive Infrared (PIR)\
▪️Detection Area… Approx. 93.2° / Approx. 12m\
▪️Power Supply… AC100V (50/60Hz)\
▪️Power Consumption…60W\
▪️Brightness…4000 lumens\
▪️Lighting Duration…3 sec/10 sec/30 sec/1 min/2 min/3 min/5 min (off-delay operation)\
▪️Lighting Mode…Steady/Flashing\
▪️Operation Mode (Day/Night Detection)…Approx. 5 lx ~ ∞ lx (adjustable via volume control)\
▪️Illuminance Setting…0%~100% (Adjustable via volume)\
▪️Dimming Setting…0%~100% (Adjustable via volume)\
▪️Sensitivity…60%/80%/100%/130% (Adjustable via volume; midpoint 100%)\
▪️Detection Output Setting…EE-linked/ Non-Linked (EE: Day/Night Detection Control)\
▪️Detection Output Time…Off Delay (approx. 2 seconds) / Operation Time Linked\
▪️Detection Output…Voltage-Free Relay Contact (Normally Open Contact) AC/DC 30V 0.5 A\
▪️Wiring Method…Power Supply: AC Plug Type (Cord Length 3.5m) Contact Output: Terminal Type\
▪️Operating Temperature Range…-20℃ to +40℃ (No condensation or freezing)\
▪️Installation Location…Indoor/Outdoor\
▪️Weatherproof Rating…IP55\
▪️Dimensions…205.2×107×394.7(H)mm\
▪️Weight…Approx. 2200g\
▪️Light source…Chip-on-board LED\
▪️Material…Light section: Aluminum die-cast Body: Resin\
▪️Caution…The motion sensor may detect and activate lighting even when non-human moving objects with energy (wind, leaves, small animals, etc.) are present in the detection area, or due to other sudden energy changes. Additionally, the motion sensor will not detect a person if they remain stationary after entering the detection area.\
▪️The “chip-on-board LED” provides even illumination over a wide area.\
▪️Leveraging LED characteristics like “high brightness,” “dimming capability,” and “energy efficiency,” it functions daily as a security light or convenience light. During intrusion detection, it illuminates at 100% brightness (flashing possible) to deter intruders, enhancing its effectiveness.\
▪️ Dimming illumination activates when darkness is detected via the day/night setting.\
▪️ Dimming illumination can be set from 0% to 100% illuminance.\
▪️ Includes an AC plug-in cord (approx. 3.5m). Simply plug into an outlet for use.\
▪️ Equipped with a voltage-free relay 1C contact, enabling integration with cameras or separate buzzers. (Detection output via terminal block)\
▪️The dimming function allows daily use as a night light, while providing full-brightness illumination (100%) for deterrence upon intrusion detection.\
Brand Name: Esco\
Material: Aluminum
Manufacturer: Takenaka Engineering (TAKEX)
Model Number: LCL-34
Detection Method: Passive Infrared (PIR)
Detection Area: Approx. 93.2° / Approx. 12m (39.6 ft)
Power Supply: AC100V (50/60Hz)
4550061566091\ nB092QX3N5Y
ESCO AC100V/60W LED Sensor Light, Rainproof Type EA864C-53
(text created at , 2025-11-12)
▪️Model Number… LCL-34\
▪️Detection Method… Passive Infrared (PIR)\
▪️Detection Area… Approx. 93.2° / Approx. 12m\
▪️Power Supply… AC100V (50/60Hz)\
▪️Power Consumption…60W\
▪️Brightness…4000 lumens\
▪️Lighting Duration…3 sec/10 sec/30 sec/1 min/2 min/3 min/5 min (off-delay operation)\
▪️Lighting Mode…Steady/Flashing\
▪️Operation Mode (Day/Night Detection)…Approx. 5 lx ~ ∞ lx (adjustable via volume control)\
▪️Illuminance Setting…0%~100% (Adjustable via volume)\
▪️Dimming Setting…0%~100% (Adjustable via volume)\
▪️Sensitivity…60%/80%/100%/130% (Adjustable via volume; midpoint 100%)\
▪️Detection Output Setting…EE-linked/ Non-Linked (EE: Day/Night Detection Control)\
▪️Detection Output Time…Off Delay (approx. 2 seconds) / Operation Time Linked\
▪️Detection Output…Voltage-Free Relay Contact (Normally Open Contact) AC/DC 30V 0.5 A\
▪️Wiring Method…Power Supply: AC Plug Type (Cord Length 3.5m) Contact Output: Terminal Type\
▪️Operating Temperature Range…-20℃ to +40℃ (No condensation or freezing)\
▪️Installation Location…Indoor/Outdoor\
▪️Weatherproof Rating…IP55\
▪️Dimensions…205.2×107×394.7(H)mm\
▪️Weight…Approx. 2200g\
▪️Light source…Chip-on-board LED\
▪️Material…Light section: Aluminum die-cast Body: Resin\
▪️Caution…The motion sensor may detect and activate lighting even when non-human moving objects with energy (wind, leaves, small animals, etc.) are present in the detection area, or due to other sudden energy changes. Additionally, the motion sensor will not detect a person if they remain stationary after entering the detection area.\
▪️The “chip-on-board LED” provides even illumination over a wide area.\
▪️Leveraging LED characteristics like “high brightness,” “dimming capability,” and “energy efficiency,” it functions daily as a security light or convenience light. During intrusion detection, it illuminates at 100% brightness (flashing possible) to deter intruders, enhancing its effectiveness.\
▪️ Dimming illumination activates when darkness is detected via the day/night setting.\
▪️ Dimming illumination can be set from 0% to 100% illuminance.\
▪️ Includes an AC plug-in cord (approx. 3.5m). Simply plug into an outlet for use.\
▪️ Equipped with a voltage-free relay 1C contact, enabling integration with cameras or separate buzzers. (Detection output via terminal block)\
▪️The dimming function allows daily use as a night light, while providing full-brightness illumination (100%) for deterrence upon intrusion detection.\
Brand Name: Esco\
Material: Aluminum
Manufacturer: Takenaka Engineering (TAKEX)
Model Number: LCL-34
Detection Method: Passive Infrared (PIR)
Detection Area: Approx. 93.2° / Approx. 12m (39.6 ft)
Power Supply: AC100V (50/60Hz)
4550061566091\ nB092QX3N5Y
ESCO AC100V/60W LED Sensor Light, Rainproof Type EA864C-53
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
77,938 JPY (Including Tax)
