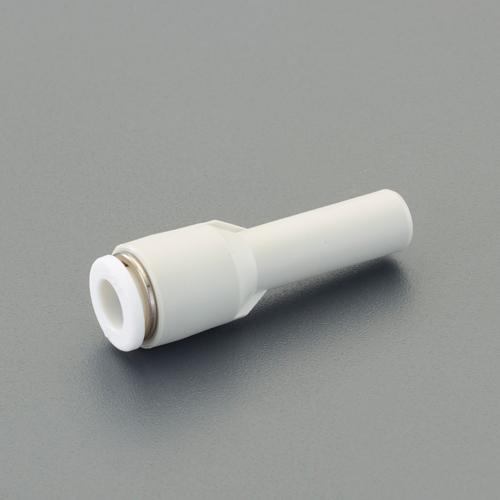

Esco 8mm x 10mm Reducer EA140HW-6

4550061635339

B09SHQ4K4L

EA140HW-6

Esco-8mmx10mm Reducer-EA140HW-6

▪️Tube Outer Diameter…8mm
▪️Material…Metal Parts: C3604BD, Plastic Parts: PBT (V-0)
▪️Operating Pressure…1MPa
▪️Operating Fluid…Air/Water
▪️Operating Temperature…Air: -15~60℃ (No freezing)
Water: 5~40℃
▪️Minimum Hole Diameter…φ6mm
▪️Connection Fitting Diameter…φ10mm
▪️Weight (g)…6
▪️Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️Installation is complete simply by lightly inserting the tube
▪️Removal is easy: just press the push ring and pull the tube out with one hand.
▪️ No tooling space required for tube attachment/detachment
▪️ The rotatable threaded body allows free adjustment of pipe direction, facilitating piping work in confined spaces.
▪️ Resin parts use flame-retardant material (UL94 V-0 equivalent)
▪️ RoHS compliant
Brass parts use cadmium-regulated material (content ≤75ppm)
▪️Brass parts feature electroless nickel plating for enhanced aesthetics and corrosion resistance.
▪️No seal tape or sealant required, significantly reducing work time and labor while eliminating leakage concerns due to application inconsistencies (uneven wrapping).
▪️Excellent water and oil resistance.
Brand Name: Esco
Tube Outer Diameter: 8mm
Applicable Tubes...Nylon Tubes, Urethane Tubes, Ecoflex Tubes, Flame-Retardant Tubes
Material...Metal Parts: C3604BD, Resin Parts: PBT (V-0)
Operating Pressure...1MPa
Operating Fluid...Air/Water
Operating Temperature...Air: -15 to 60°C (No freezing)
Water: 5 to 40°C
Minimum Hole Diameter...φ6mm
Connection Fitting Diameter...φ10mm
Weight (g)...6
4550061635339
Esco 8mm x 10mm Reducer EA140HW-6
