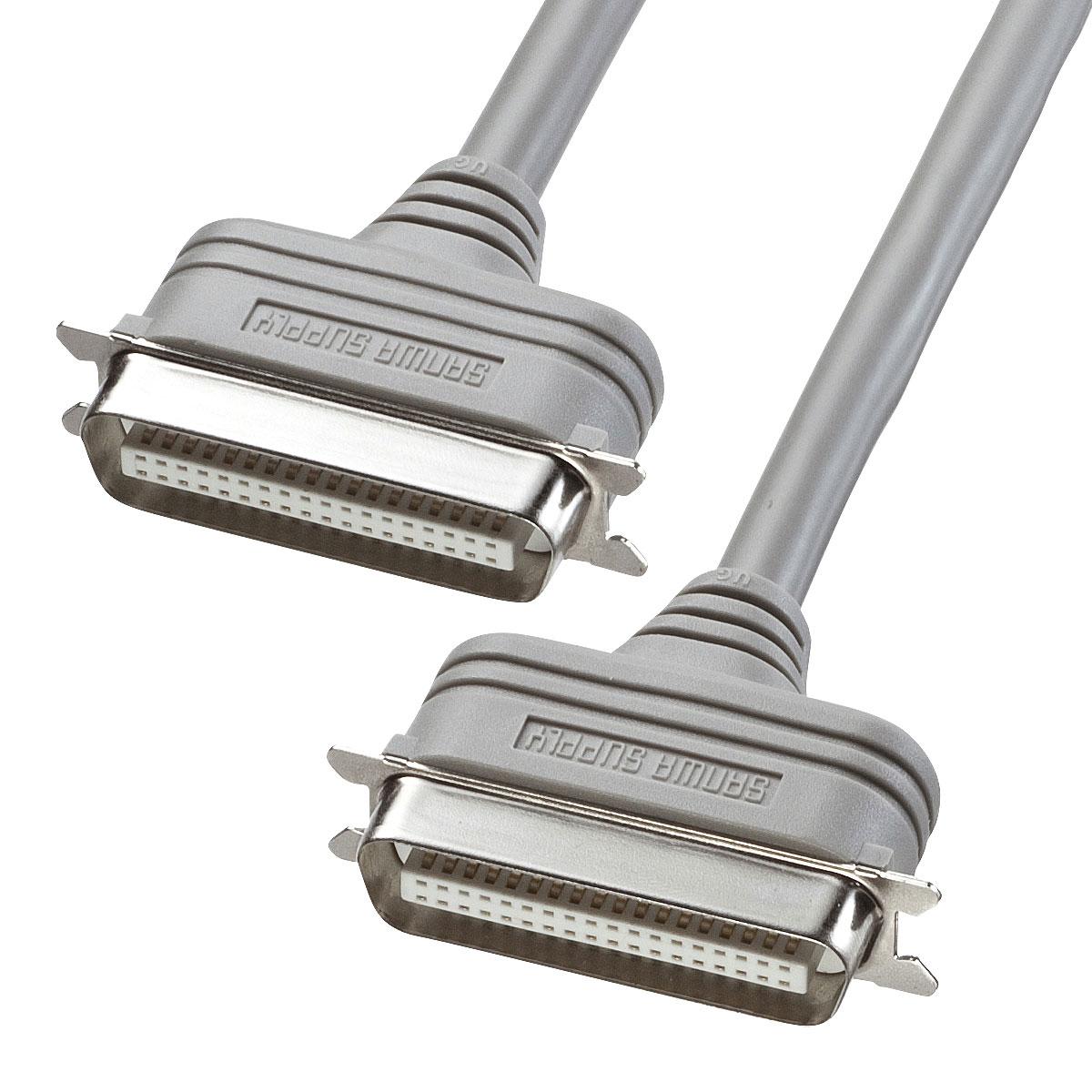

Esco Printer Cable 5.0m EA940PS-4
JAN
4550061707616
ASIN
B09SFTGL11
Maker
Model No.
EA940PS-4
Color
Size
Description
▪️Cable length…5m
▪️Cable diameter…8mm
▪️D-sub 25-pin male with inch screws (4-40) - Centronics 36-pin male
▪️Cable for connecting DOS/V PCs and printers.
▪️Complies with IEEE1284 standard and supports bidirectional communication.▪️24K gold-plated pins, with core▪️This cable connects Windows-equipped (DOS/V) PCs (models with D-sub 25-pin connectors) to printers (models with Centronics 36-pin connectors).▪️Also connects to printer switches and buffers.
▪️ An IEEE1284 cable using 62Ω impedance cable for high-speed transmission, supporting ECP/EPP bidirectional communication.
▪️ A double-shielded cable featuring a sealed aluminum shield inside a high-density copper braided shield, protecting vital data from most noise across the low to high frequency range.
▪️ Uses noise-resistant twisted pair wires, with two core wires twisted together.
▪️The molded connector features resin-filled internals and full shielding, preventing external interference and ensuring thorough noise countermeasures. It also offers excellent vibration and shock resistance.
▪️A ferrite core with noise filter functionality is installed to effectively absorb noise transmitted through the cable.
▪️Gold-plated pins (contacts) are used, offering high corrosion resistance and minimal concern for signal degradation due to aging.
Brand Name: Esco
Cable Length: 5m
Cable Diameter: 8mm
D-sub 25-pin Male (4-40) Inch Screw - Centronics 36-pin Male
Cable for connecting DOS/V PCs and printers.
Complies with IEEE 1284 standard and supports bidirectional communication.
4550061707616
Esco Printer Cable 5.0m EA940PS-4
(text created at , 2025-05-09)
▪️Cable diameter…8mm
▪️D-sub 25-pin male with inch screws (4-40) - Centronics 36-pin male
▪️Cable for connecting DOS/V PCs and printers.
▪️Complies with IEEE1284 standard and supports bidirectional communication.▪️24K gold-plated pins, with core▪️This cable connects Windows-equipped (DOS/V) PCs (models with D-sub 25-pin connectors) to printers (models with Centronics 36-pin connectors).▪️Also connects to printer switches and buffers.
▪️ An IEEE1284 cable using 62Ω impedance cable for high-speed transmission, supporting ECP/EPP bidirectional communication.
▪️ A double-shielded cable featuring a sealed aluminum shield inside a high-density copper braided shield, protecting vital data from most noise across the low to high frequency range.
▪️ Uses noise-resistant twisted pair wires, with two core wires twisted together.
▪️The molded connector features resin-filled internals and full shielding, preventing external interference and ensuring thorough noise countermeasures. It also offers excellent vibration and shock resistance.
▪️A ferrite core with noise filter functionality is installed to effectively absorb noise transmitted through the cable.
▪️Gold-plated pins (contacts) are used, offering high corrosion resistance and minimal concern for signal degradation due to aging.
Brand Name: Esco
Cable Length: 5m
Cable Diameter: 8mm
D-sub 25-pin Male (4-40) Inch Screw - Centronics 36-pin Male
Cable for connecting DOS/V PCs and printers.
Complies with IEEE 1284 standard and supports bidirectional communication.
4550061707616
Esco Printer Cable 5.0m EA940PS-4
(text created at , 2025-05-09)
