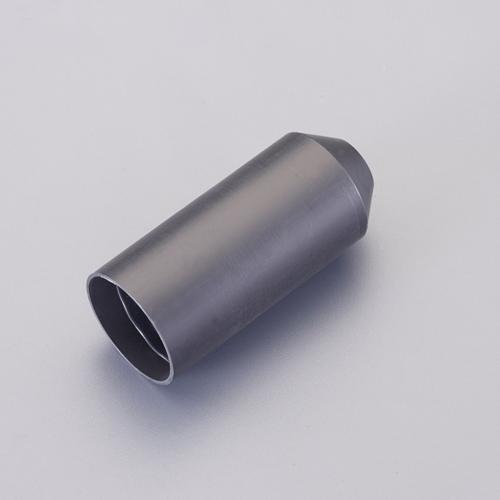

Esco Heat Shrink Cap for Terminal Protection 35.0mm EA944B-45

4550061796368

B09SHBBRYP

EA944B-45

Black

Esco Heat Shrink Cap - Terminal Protection - EA944B-44

▪️Material…Polyolefin
▪️Pre-shrink inner diameter (min.)…35.0mm
▪️Post-shrink inner diameter (max.)…16.0mm
▪️Post-shrink length…83.0mm (±10%)
▪️Post-shrink wall thickness…3.3mm (±10%)
▪️Shrink start temperature…120℃
▪️Operating Temperature Range…-55~110℃
▪️Weight…90g
▪️Color…Black
▪️Can be used for cables such as electrical wires and communication cables.
▪️Suitable for waterproofing and drip protection due to hot-melt adhesive inside the cap.
▪️Effective in preventing oxidation from ozone and UV radiation.
▪️RoHS compliant
Brand Name: Esco
Material…Polyolefin
Can be used for cables such as power cables and communication cables.
Pre-shrink inner diameter (min.)…35.0mm
Post-shrink inner diameter (max.)…16.0mm
Post-shrink length…83.0mm (±10%)
Post-shrink wall thickness…3.3mm (±10%)
Shrink start temperature…120℃
Operating Temperature Range... -55 to 110°C
Weight... 90g
Color... Black
4550061796368
Esco Heat Shrink Cap for Terminal Protection 35.0mm EA944B-45
