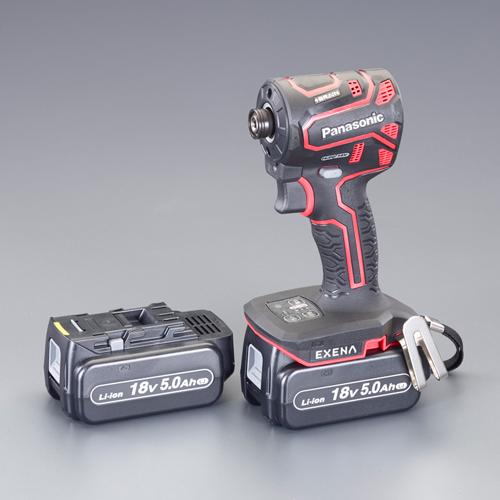

Esco DC18.0V/5.0Ah Impact Driver (Red/Rechargeable) EA813PA-17

4550061815991

B09S5Z3WXG

EA813PA-17

127 × 60 × 240 (H) mm

▪️Specifications…Resin case set\
▪️Maximum torque…High: 170 N·m\
Medium: 150 N·m\
Low: 26 N·m\
Instant full: 170 N·m\

▪️Fastening Capacity…Standard Bolts: M6~M16\
High-Strength Bolts: M6~M12\
Texbolts: 3.5~6mm\
Wood Screws: 3.5~9.5mm\
▪️Battery…18V (Lithium-ion 5.0Ah)\
▪️Charger…AC100V\
▪️Charging time…Approx. 60 min\
▪️Rotation speed…High: 0~2,800 rpm\
Medium: 0~1,450 rpm\
Low: 0~950 rpm\
Tex: 0~2,800 rpm\
Instant full: 2,800 rpm\
▪️Impact rate…High: 0~3,100 impacts/min\
Medium: 0~2,500 impacts/min\
Low: 0~1,800 impacts/min\
Textile: 0~2,500 impacts/min\
Instant full: 3,100 impacts/min\
▪️ Dimensions…127×60×240(H)mm\
▪️ Weight…1.7kg\
▪️ Dustproof/Waterproof Rating…IP56\
▪️ Included Accessories…Batteries×2, Charger, Plastic Case\
▪️ Features electronic speed control, forward/reverse, brake, and LED light\
\
▪️ Equipped with brushless motor for approximately double the motor lifespan\
▪️ Optimally controls motor speed and power according to the task, such as high-torque bolt tightening or long screw fastening.\
It adapts to demanding work, maximizing the tool's performance.\
▪️Synergy between “Smart BL” and “New Airflow Design” dramatically improves endurance for continuous high-load tasks like bolting and long screwdriving.\
▪️Increased torque and motor speed, fully harnessed by “Smart BL”. Reduces the time required for long screw fastening.\
▪️ Pulling the trigger instantly activates maximum power “High” mode. With consistent torque in both forward and reverse, it excels in speed for tasks like bolt loosening.\
▪️ New airflow design enhances cooling efficiency. It improves cooling not only around the motor but also to the core of the coil, suppressing overheating.\
▪️ Newly equipped with two LED lights that cast minimal shadows\
▪️ Easy bit attachment/detachment with inverted triangle bit holder\
▪️ Stores two 65mm bits (one on each side) inside the base bottom.\
▪️ Newly designed case for significantly improved usability
Brand Name: Esco
Specifications…Resin Case Set
Weight…1.7kg
Maximum Torque…High: 170N·m Medium: 150 N·m Low: 26 N·m Instant Full: 170 N·m
Tightening Capacity… Standard Bolts: M6–M16 High-Strength Bolts: M6–M12 Tex: 3.5–6 mm Wood Screws: 3.5–9.5 mm
Battery… 18V (Lithium-ion 5.0Ah)
Charger…AC100V
Charging time…Approx. 60 min
Rotation speed…High: 0–2,800 rpm Medium: 0–1,450 rpm Low: 0–950 rpm Tex: 0–2,800 rpm Instant Full: 2,800 rpm
Impact rate…High: 0–3, 100 impacts/min Medium: 0–2,500 impacts/min Low: 0–1,800 impacts/min Textile: 0–2,500 impacts/min Instant Full: 3,100 impacts/min
Dimensions…127×60×240(H)mm
4550061815991\ nB09S5Z3WXG
Esco DC18.0V/5.0Ah Impact Driver (Red/Rechargeable) EA813PA-17
