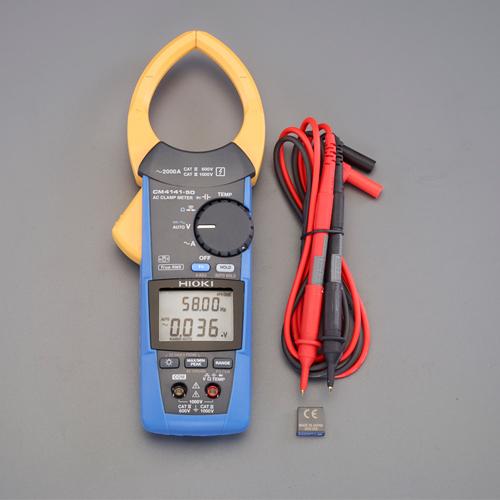

ESCO Clamp Meter AC Only, Digital EA708AB-19A
JAN
4550061886830
ASIN
B0BWR1PXZM
Maker
Model No.
EA708AB-19A
Color
Size
82 (W) × 11 (D) mm (D dimension is within a range of 44 mm from the tip of the jaw)
Description
Brand Name: Esco
AC Voltage: 6/60/600/1000V (15–1kHz, true RMS rectification) Basic Accuracy 45–66Hz: ±0.9% of reading ±0.003V (at 6V)
DC Voltage: 600mV/6V/60V/ 600V/1000V Basic Accuracy/±0.5% of reading ±0.5mV (at 600mV)
AC Current: 60/600/2000A, (45 to 1kHz, true RMS rectification) Basic accuracy 45-66Hz／±1.5% of reading ±0.08A (60A range)
AC + DC Voltage: 6／60／600／1000V (15 to 1kHz, true RMS rectification) Basic accuracy 45-66Hz／±1.0% of reading ±0.013V (at 6V)
Frequency: 9.999/99.99/999.9Hz (voltage frequency) 99.99/999.9Hz (current frequency) Basic accuracy: ±0.1% of reading ±0.01Hz (at 99.99Hz)\ Resistance: 600／6k／60k／600kΩ／6MΩ Basic accuracy／±0.7% of reading ±0.5Ω (at 600Ω)
Capacitance: 1μ／10μ／100μ／1000μF Basic accuracy／±1.9% of reading ±0.005μF (at 1μF)
Temperature: -40 to 400°C Accuracy: ±0.5% of reading ±3.0°C + temperature probe accuracy addition
Functions: Continuity check, diode check, AC/DC auto-ranging (voltage only), max/min/average/ peak-to-peak max/min display, low-pass filter function, display hold, auto hold, backlight, auto power save, buzzer sound
Clamp inner diameter: 55mm
4550061886830\ nB0BWR1PXZM
ESCO Clamp Meter AC Only・Digital EA708AB-19A
(text created at , 2025-11-12)
AC Voltage: 6/60/600/1000V (15–1kHz, true RMS rectification) Basic Accuracy 45–66Hz: ±0.9% of reading ±0.003V (at 6V)
DC Voltage: 600mV/6V/60V/ 600V/1000V Basic Accuracy/±0.5% of reading ±0.5mV (at 600mV)
AC Current: 60/600/2000A, (45 to 1kHz, true RMS rectification) Basic accuracy 45-66Hz／±1.5% of reading ±0.08A (60A range)
AC + DC Voltage: 6／60／600／1000V (15 to 1kHz, true RMS rectification) Basic accuracy 45-66Hz／±1.0% of reading ±0.013V (at 6V)
Frequency: 9.999/99.99/999.9Hz (voltage frequency) 99.99/999.9Hz (current frequency) Basic accuracy: ±0.1% of reading ±0.01Hz (at 99.99Hz)\ Resistance: 600／6k／60k／600kΩ／6MΩ Basic accuracy／±0.7% of reading ±0.5Ω (at 600Ω)
Capacitance: 1μ／10μ／100μ／1000μF Basic accuracy／±1.9% of reading ±0.005μF (at 1μF)
Temperature: -40 to 400°C Accuracy: ±0.5% of reading ±3.0°C + temperature probe accuracy addition
Functions: Continuity check, diode check, AC/DC auto-ranging (voltage only), max/min/average/ peak-to-peak max/min display, low-pass filter function, display hold, auto hold, backlight, auto power save, buzzer sound
Clamp inner diameter: 55mm
4550061886830\ nB0BWR1PXZM
ESCO Clamp Meter AC Only・Digital EA708AB-19A
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
53,415 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
