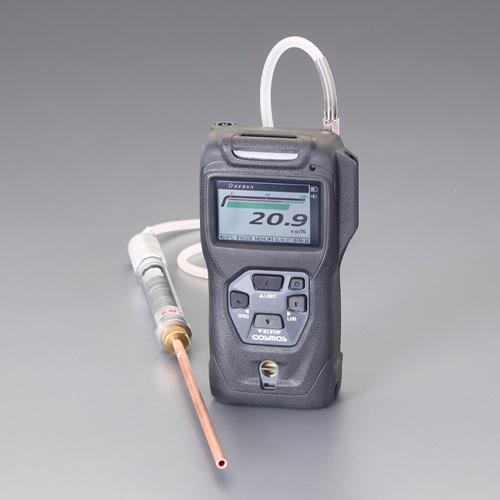

New Cosmos Electric Digital Oxygen Concentration Meter EA733D-2A

4550061904220

B0BJCVN3KT

EA733D-2A

91 (W) × 44 (D) × 164 (H) mm

New Cosmos Electric - Digital Oxygen Concentration Meter - EA733D-2A
・For combustion management・Measures O2 concentration in exhaust gas・Measures oxygen from 0 to 25 vol%, alerts with buzzer and lamp.・Bluetooth equipped. Real-time concentration display and trend graphs available via dedicated smartphone/tablet app. Configurable automatic email alerts during gas alarms, including worker location information.・Color digital bar graph and numeric display for easy gas concentration reading. Switchable to trend graph display.・Data logging function enables reading via dedicated app or PC software (sold separately) for log data collection. ・Waterproof and dustproof construction (Protection rating equivalent to IP67)・Intrinsically safe explosion-proof construction (Ex ia da IIC T4 Ga) ※Sensor section features pressure-resistant explosion-proof construction.\
※※For business use only※※
Brand Name: Shin Cosmos Electric
・Model Number: XP-3380II-E・Target Gas: Oxygen・Dimensions: 91(W) × 44(D) × 164(H) mm
・Weight: Approx. 460g・Detection Range: 0~25.0 vol%・Resolution: 0.1 vol%・Indicating Accuracy: ±0.3 vol% (Compliant with JIS T 8201)・Alarm Setpoint: 18.0 vol%・Sampling Method: Automatic Suction・Power Supply: 4 AA alkaline batteries or 4 AA nickel-metal hydride batteries (included)・Continuous Operating Time: Approx. 100 hours・Detection Principle: Galvanic cell type・Operating Temperature/Humidity Range: -20~50°C, 95% RH or less (provided there is no condensation or sudden changes in temperature/humidity)・Operating Pressure Range: Atmospheric pressure (800~1100 hPa)・Explosion-proof Construction: Intrinsically safe explosion-proof construction Alkaline battery specification: Ex ia IICT4Ga Nickel-metal hydride battery specification: Ex ia IICT3Ga • Protection rating: IP67 equivalent • Main functions: Self-diagnosis (sensor abnormality), zero adjustment, battery level indicator, illumination lamp function, peak hold function, LCD backlight, buzzer mute during gas alarm, time display, alarm test, buzzer volume setting, buzzer mute, data logging\ Accessories: 1m gas inlet tube or 1m gas inlet tube (solvent specification), shoulder strap, drain filter, filter element, alkaline dry cell batteries (or nickel-metal hydride rechargeable batteries), LCD protective film. Note: The included batteries are test batteries; please purchase new batteries. ・Applications: For safety checks before work and worker safety assurance in underground construction sites such as tanks, manholes, tunnels, etc. ・Combustion management use・Measures O2 concentration in exhaust gas・Measures oxygen from 0~25 vol% and alerts with buzzer and lamp.・Bluetooth equipped. Real-time concentration display and trend graph display possible via dedicated smartphone/tablet app. Also configurable to automatically send emails with worker location info during gas alarms.
・Color digital bar graph and numeric display for easy gas concentration reading. Switchable to trend graph display.・Data logging function enables reading via the dedicated app or exporting to a PC using log data collection software (sold separately).・Waterproof and dustproof construction (Protection rating equivalent to IP67)・Intrinsically safe explosion-proof construction (Ex ia da IIC T4 Ga) *Sensor section is pressure-resistant explosion-proof. 4550061904220 B0BJCVN3KT Shin Cosmos Electric Digital Oxygen Concentration Meter EA733D-2A (text created at , 2025-11-13)
