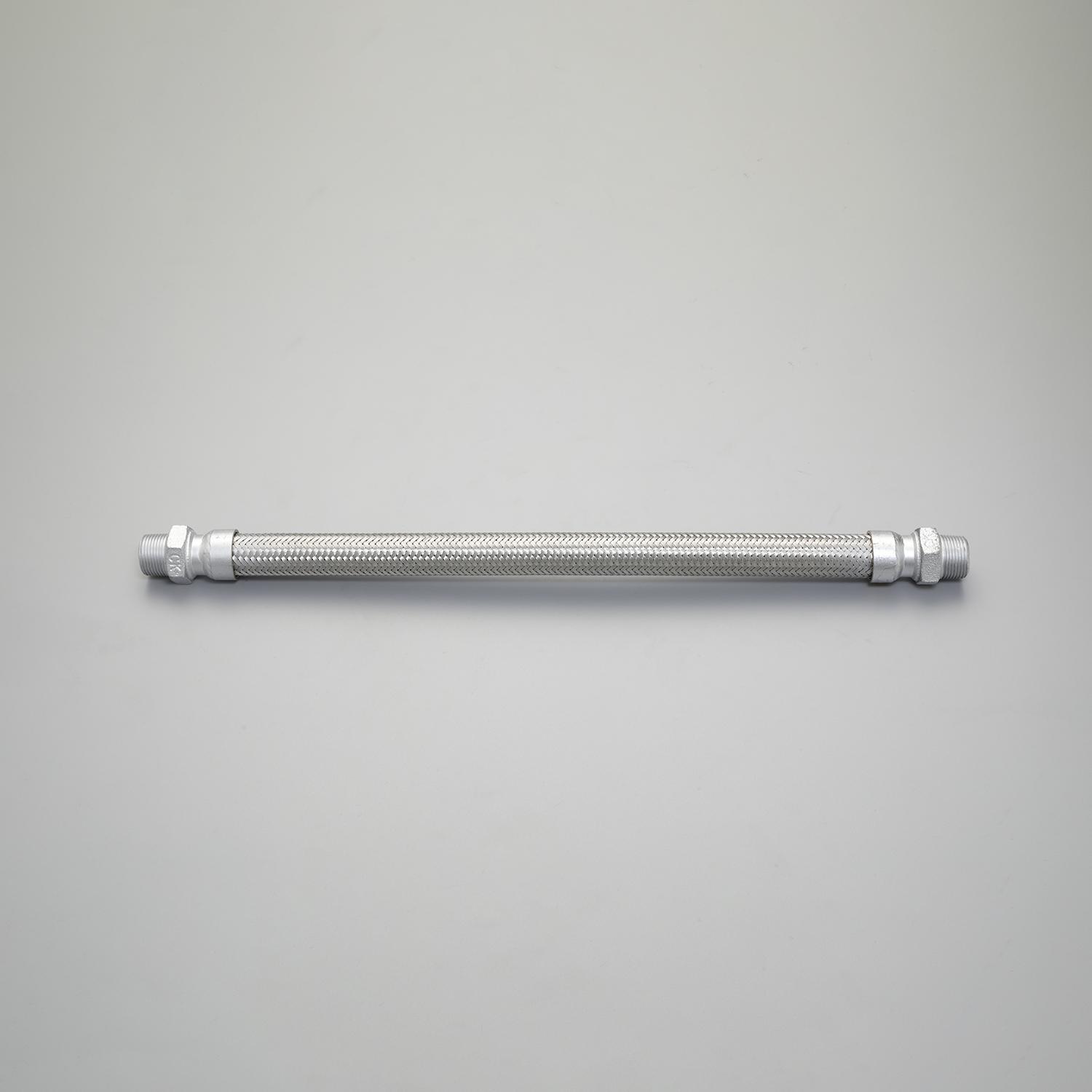

R3/4" x 300mm Flexible Tube (SUS Nipple/Welded)
JAN
4550061905920
ASIN
B0BWR494HN
Maker
Model No.
EA469EL-6
Color
Size
R 3/8"
Description
Brand Name: Esco
Nominal Diameter (A designation): 20
Thread Size (R): 3/4"
Flange Diameter (mm): 27
Overall Length (mm): 300
Material: Tube/SUS304 Blade/SUS304 Blade Retaining Ring/SUS304 Male Nipple/Stainless Steel (SCS13)
Working Pressure: 1.0MPa
Applicable Fluids: Water, Oil, Air, Steam, Chemicals ※Limited to fluids that do not corrode stainless steel
Operating Temperature: -40 to 450℃
Pipe Misalignment Compensation, Displacement Absorption, Vibration Damping, Motion Compensation
This flexible type facilitates easy installation in locations where pipe maintenance is difficult.
4550061905920
“R3/4” “x300mm Flexible Tube (SUS Nipple/Welded)”
(text created at , 2025-05-09)
Nominal Diameter (A designation): 20
Thread Size (R): 3/4"
Flange Diameter (mm): 27
Overall Length (mm): 300
Material: Tube/SUS304 Blade/SUS304 Blade Retaining Ring/SUS304 Male Nipple/Stainless Steel (SCS13)
Working Pressure: 1.0MPa
Applicable Fluids: Water, Oil, Air, Steam, Chemicals ※Limited to fluids that do not corrode stainless steel
Operating Temperature: -40 to 450℃
Pipe Misalignment Compensation, Displacement Absorption, Vibration Damping, Motion Compensation
This flexible type facilitates easy installation in locations where pipe maintenance is difficult.
4550061905920
“R3/4” “x300mm Flexible Tube (SUS Nipple/Welded)”
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
7,678 JPY (Including Tax)
