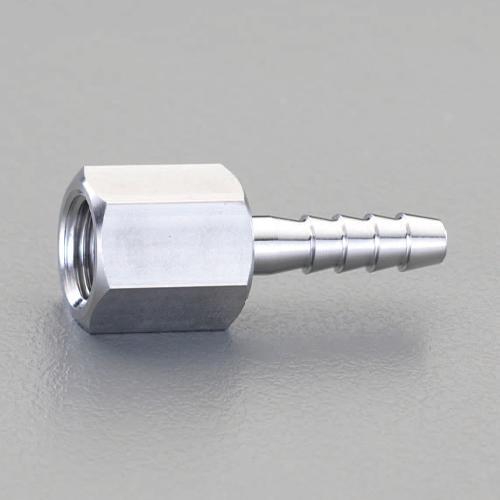

Rc1/4 x 9.0mm female thread stem (stainless steel)

4550061940785

B0CFX6BTKR

EA141AT-209

Rc1/4"

ASOH - Female Thread Stem - Stainless Steel - ×9-0mm - EA141AT-209

Description
▪️※The compatible hose inner diameter may vary slightly depending on the hose material.
▪️Features internal threads, allowing direct connection to external threads without additional fittings.
▪️Securely fasten the hose with a hose clamp or similar to prevent it from coming loose during use.
▪️ Manufacturer: ASOH
▪️ Model Number: HF-7209
▪️ Thread Size: Rc (PT) 1/4"
▪️ Material: SUS304
▪️ Operating Temperature: -50~150℃
▪️Maximum Working Pressure: 3.45MPa or less
▪️Socket Outer Diameter (mm): 9
▪️Socket Inner Diameter (mm): 5
▪️Hexagon Diagonal (mm): 17
▪️Socket Length (mm): 26
▪️Overall Length (mm): 45
▪️Compatible Hose Inner Diameter*: 9mm
Brand Name: ASOH
※※For business use only※※
Manufacturer: Asso
Model Number: EA141AT-209
Quantity: 1 piece
4550061940785
“Rc1/4” “x9.0mm Female Thread Stem (Stainless Steel)”
