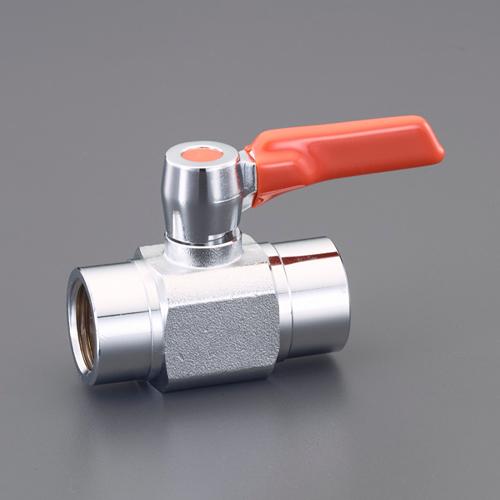

ESCO Ball Valve Brass Rc1/2“ x G1/2” EA425BW-244
JAN
4550061956939
ASIN
B0BWR3TQWT
Maker
Model No.
EA425BW-244
Color
Size
Description
Brand Name: Esco
Material: Brass
Mounting Screw: Rc1/2“ (PT) × G1/2” (PF)
Pressure: 0.98MPa or less
Temperature: -10 to 80°C (No freezing)
Weight (g): 244
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-ring/NBR70-1
Double Female Thread Type
This is a piping valve with a tapered (PT) female thread on the primary side and a parallel (PF) female thread on the secondary side.
It features a versatile, general-purpose design common to double female thread types.
Its short face-to-face dimension makes it effective for piping in confined spaces.
This type has a larger ball bore diameter than the standard mini ball valve.
4550061956939
ESCO Ball Valve Brass Rc1/2“ x G1/2” EA425BW-244
(text created at , 2025-05-10)
Material: Brass
Mounting Screw: Rc1/2“ (PT) × G1/2” (PF)
Pressure: 0.98MPa or less
Temperature: -10 to 80°C (No freezing)
Weight (g): 244
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-ring/NBR70-1
Double Female Thread Type
This is a piping valve with a tapered (PT) female thread on the primary side and a parallel (PF) female thread on the secondary side.
It features a versatile, general-purpose design common to double female thread types.
Its short face-to-face dimension makes it effective for piping in confined spaces.
This type has a larger ball bore diameter than the standard mini ball valve.
4550061956939
ESCO Ball Valve Brass Rc1/2“ x G1/2” EA425BW-244
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
4,654 JPY (Including Tax)
