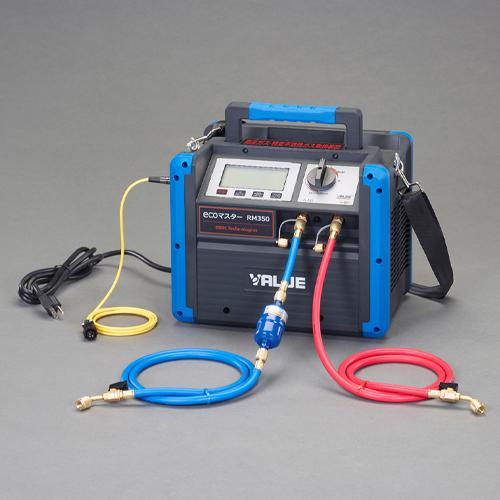

Refrigerant Gas Recovery Unit EA100BK-1
JAN
4550061957868
ASIN
B0BWR2V383
Maker
Model No.
EA100BK-1
Color
Size
370 (W) × 260 (D) × 300 (H) mm
Description
Esco Refrigerant Gas Recovery Unit EA100BK-1
▪️ Recovery Capacity: R22 / 220g/min (gas), 2970g/min (liquid) R410A・R32 / 270g/min (gas), 3500g/min (liquid) Recovery capacity values are manufacturer's measured values (at room temperature 25°C). Actual values may vary depending on recovery conditions. ※Gas recovery capacity values comply with JIS B 8629 testing standards.▪️Energy-saving design with eco-recovery function. Features a bypass function that utilizes pressure differentials to directly transfer liquid refrigerant from the recovery target equipment to the recovery unit during initial recovery operations, bypassing the unit's internal pathways.▪️Adopts a movable handle for impact protection and a compact design for easier vehicle loading.
▪️ Mode Switching (3 Modes) When the suction pressure gauge reads -0.06 MPa, indicating no gas pressure = gas recovery complete, the recovery unit automatically stops. After the suction gauge reads -0.06 MPa and the recovery unit stops, residual gas (sleep gas) within the system may flow back in small amounts. If the intake gauge sensor detects pressure at this time, the unit automatically restarts to recover the residual gas. Even after the intake gauge reading enters the negative range indicating gas recovery is complete, the compressor continues running. To protect the equipment, the switch can be manually turned off at the appropriate time.
▪️ The detachable float safety cord system provides two types of connection terminals for the cord linking the recovery container and the unit: an amp type (4-pin) and a Brad Harrison type (3-pin). This allows compatibility with recovery containers of different types.
▪️ Oil-free fluorocarbon recovery unit compliant with the Fluorocarbon Emission Reduction Act
▪️ High-pressure gas/specific inert gas handling equipment
▪️ Equipped with a microchannel condenser featuring an ultra-fine dual-layer tube structure
▪️Large digital pressure display▪️Adopts spark-free brushless DC motor (ideal for recovering slightly flammable fluorocarbon gas R32)▪️Equipped with a 1-horsepower compressor offering 270g/min gas recovery capacity (R410A)▪️Achieves lightweight design at 11.3kg▪️High-speed, stable recovery via oil-free, in-line twin-cylinder compressor▪️Complete recovery operation with single-valve control▪️ Compatible with new and conventional refrigerants▪️Self-cleaning function▪️Self-certified compliant product based on Ministry of International Trade and Industry Notification No. 139
Brand Name: Esco
Product Name: ECO Master
Applicable Refrigerants: R12・R22・R500・R502・R134a・ R404A・R407C・R407D・R410A・R422A・R422D・R507A・R509A・R32・R1234yf・R1234ze・R115・ R218・R401A・R401B・R402A・R402B・R407A・R407H・R407B・R407E・R410B・R447・R448A・R448H・R449A・R463A-J・R452A\ Recovery Container: 12L・24L (FC3)
Power Supply: AC100V (50/60Hz)
Dimensions: 370×260×300mm
4550061957868\ nB0BWR2V383
Refrigerant Gas Recovery Unit EA100BK-1
(text created at , 2025-11-13)
▪️ Recovery Capacity: R22 / 220g/min (gas), 2970g/min (liquid) R410A・R32 / 270g/min (gas), 3500g/min (liquid) Recovery capacity values are manufacturer's measured values (at room temperature 25°C). Actual values may vary depending on recovery conditions. ※Gas recovery capacity values comply with JIS B 8629 testing standards.▪️Energy-saving design with eco-recovery function. Features a bypass function that utilizes pressure differentials to directly transfer liquid refrigerant from the recovery target equipment to the recovery unit during initial recovery operations, bypassing the unit's internal pathways.▪️Adopts a movable handle for impact protection and a compact design for easier vehicle loading.
▪️ Mode Switching (3 Modes) When the suction pressure gauge reads -0.06 MPa, indicating no gas pressure = gas recovery complete, the recovery unit automatically stops. After the suction gauge reads -0.06 MPa and the recovery unit stops, residual gas (sleep gas) within the system may flow back in small amounts. If the intake gauge sensor detects pressure at this time, the unit automatically restarts to recover the residual gas. Even after the intake gauge reading enters the negative range indicating gas recovery is complete, the compressor continues running. To protect the equipment, the switch can be manually turned off at the appropriate time.
▪️ The detachable float safety cord system provides two types of connection terminals for the cord linking the recovery container and the unit: an amp type (4-pin) and a Brad Harrison type (3-pin). This allows compatibility with recovery containers of different types.
▪️ Oil-free fluorocarbon recovery unit compliant with the Fluorocarbon Emission Reduction Act
▪️ High-pressure gas/specific inert gas handling equipment
▪️ Equipped with a microchannel condenser featuring an ultra-fine dual-layer tube structure
▪️Large digital pressure display▪️Adopts spark-free brushless DC motor (ideal for recovering slightly flammable fluorocarbon gas R32)▪️Equipped with a 1-horsepower compressor offering 270g/min gas recovery capacity (R410A)▪️Achieves lightweight design at 11.3kg▪️High-speed, stable recovery via oil-free, in-line twin-cylinder compressor▪️Complete recovery operation with single-valve control▪️ Compatible with new and conventional refrigerants▪️Self-cleaning function▪️Self-certified compliant product based on Ministry of International Trade and Industry Notification No. 139
Brand Name: Esco
Product Name: ECO Master
Applicable Refrigerants: R12・R22・R500・R502・R134a・ R404A・R407C・R407D・R410A・R422A・R422D・R507A・R509A・R32・R1234yf・R1234ze・R115・ R218・R401A・R401B・R402A・R402B・R407A・R407H・R407B・R407E・R410B・R447・R448A・R448H・R449A・R463A-J・R452A\ Recovery Container: 12L・24L (FC3)
Power Supply: AC100V (50/60Hz)
Dimensions: 370×260×300mm
4550061957868\ nB0BWR2V383
Refrigerant Gas Recovery Unit EA100BK-1
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
350x290x450 mm
Package
Weight (Approx.):
Weight (Approx.):
15400 g
249,117 JPY (Including Tax)
Stock :
11
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
