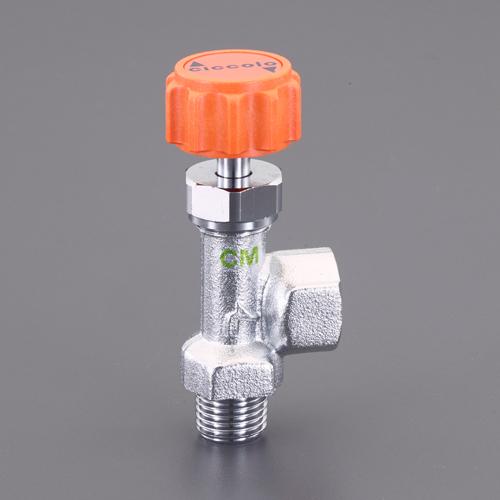

ESCO Needle Valve Angle/RoHS Compliant R1/8xRc1/8 EA426CM-411
JAN
4550061986646
ASIN
B0BWR4PNLV
Maker
Model No.
EA426CM-411
Color
Size
Description
ESCO Needle Valve - Angle - RoHS Compliant - EA426CM-411
▪️ Mounting Screw (Male): R1/8" (PT)
▪️ Mounting Screw (Female): Rc1/8" (PT)
▪️ Pressure: 0.98 MPa or less
▪️ Fluid: Air, Water, Oil
▪️Temperature: -10 to 80°C (excluding freezing points)
▪️Weight (g): 61
▪️Material: Body／C3771BD, Spindle／C3604BD, O-ring／NBR70-1
▪️RoHS Directive compliant
▪️This compact needle valve features a tapered (PT) external thread on the primary side and a tapered (PT) internal thread on the secondary side.
▪️It is the most frequently used valve mounting configuration, significantly expanding its application range.
※※For business use only※※
Brand Name: Esco
Mounting Thread (Male): R1/8" (PT)
Mounting Thread (Female): Rc1/8" (PT)
Pressure: 0.98MPa or less
Fluid: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Weight (g): 61
Material: Body／C3771BD, Spindle／C3604BD, O-ring／NBR70-1
RoHS Directive Compliant
This compact needle valve features a tapered (PT) external thread on the primary side and a tapered (PT) internal thread on the secondary side.
It is the valve with the most frequently used mounting configuration. Its application range is greatly expanded.
4550061986646
ESCO Needle Valve Angle/RoHS Compliant R1/8xRc1/8 EA426CM-411
(text created at , 2025-05-10)
▪️ Mounting Screw (Male): R1/8" (PT)
▪️ Mounting Screw (Female): Rc1/8" (PT)
▪️ Pressure: 0.98 MPa or less
▪️ Fluid: Air, Water, Oil
▪️Temperature: -10 to 80°C (excluding freezing points)
▪️Weight (g): 61
▪️Material: Body／C3771BD, Spindle／C3604BD, O-ring／NBR70-1
▪️RoHS Directive compliant
▪️This compact needle valve features a tapered (PT) external thread on the primary side and a tapered (PT) internal thread on the secondary side.
▪️It is the most frequently used valve mounting configuration, significantly expanding its application range.
※※For business use only※※
Brand Name: Esco
Mounting Thread (Male): R1/8" (PT)
Mounting Thread (Female): Rc1/8" (PT)
Pressure: 0.98MPa or less
Fluid: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Weight (g): 61
Material: Body／C3771BD, Spindle／C3604BD, O-ring／NBR70-1
RoHS Directive Compliant
This compact needle valve features a tapered (PT) external thread on the primary side and a tapered (PT) internal thread on the secondary side.
It is the valve with the most frequently used mounting configuration. Its application range is greatly expanded.
4550061986646
ESCO Needle Valve Angle/RoHS Compliant R1/8xRc1/8 EA426CM-411
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
1,917 JPY (Including Tax)
