Tamiya Fun Craft Series No.260 Universal Gearbox 2 70260

4950344702602

B0DG239XMH

Tamiya - Fun Craft Series - No. 260 - Universal Gearbox 2 - 70260

Product Introduction

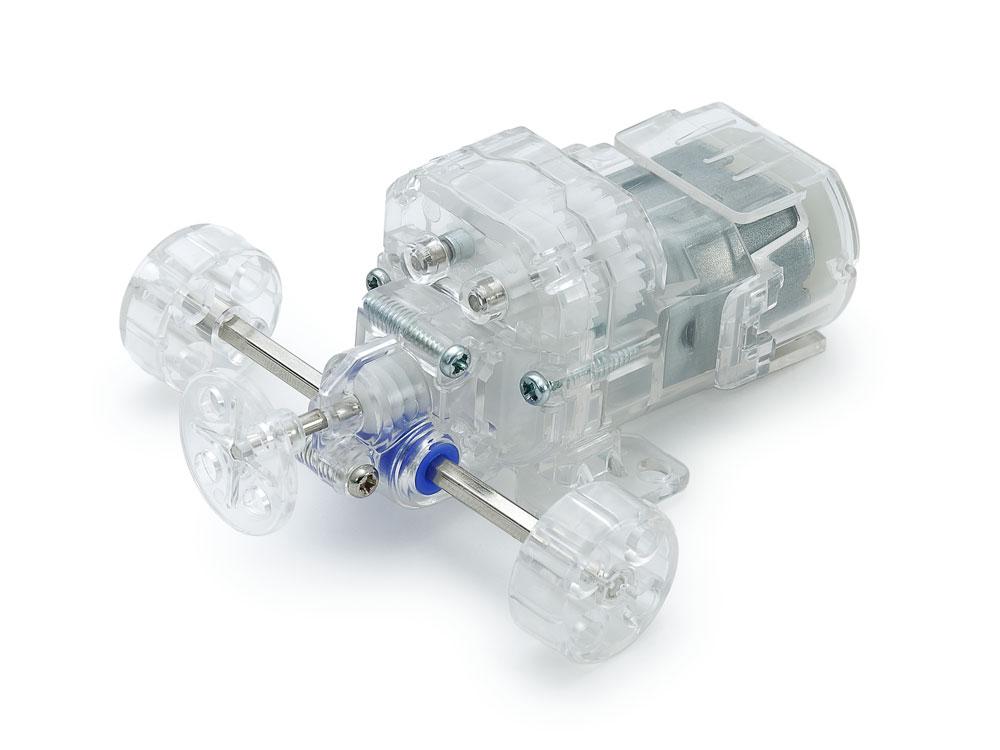

Tamiya Fun Craft Series No.260 Universal Gearbox 2 70260
A gearbox with two shafts crossing at right angles
A buildable gearbox where motion can be extracted from each of the two shafts positioned at right angles.
By changing the mounting position, you can choose from four different output shaft orientations.
The main body is made of clear parts, allowing you to see the internal mechanism clearly.
A convenient crank plate is also included, enabling you to add variation to the movement.
Basic Specs
Assembled dimensions: Length 63mm, Width 29.8mm, Height 27.8mm, Output shaft width 13.4mm
Includes 130-type motor
Gear ratios: 102.4:1, 273.1:1, 728.2:1 (for 3mm hex shaft), 8.5:1・22.8:1・60.7:1 (for 2mm shaft)
Includes crank plates for both 3mm hex shaft and 2mm shaft, plus mounting screws and nuts
※This product is a kit requiring assembly. ※Additional tools are required for assembly.
※This product does not include adhesives, paints, tools, batteries, etc.
Safety Warning
Brand Name: TAMIYA
Unisex
Material: Plastic
Assembly required. Tools and other items are required separately.
Gearbox with two shafts crossing at right angles
Three gear ratios available for each shaft; mounting brackets are removable
Clear parts allow clear view of internal mechanism
Finished dimensions: Length 63mm, Width 29.8mm, Height 27.8mm, Output shaft width 13.4mm
4950344702602
TAMIYA Fun Craft Series No.260 Universal Gearbox 2 70260
(text created at , 2025-05-09)

107x32x154 mm

80 g
