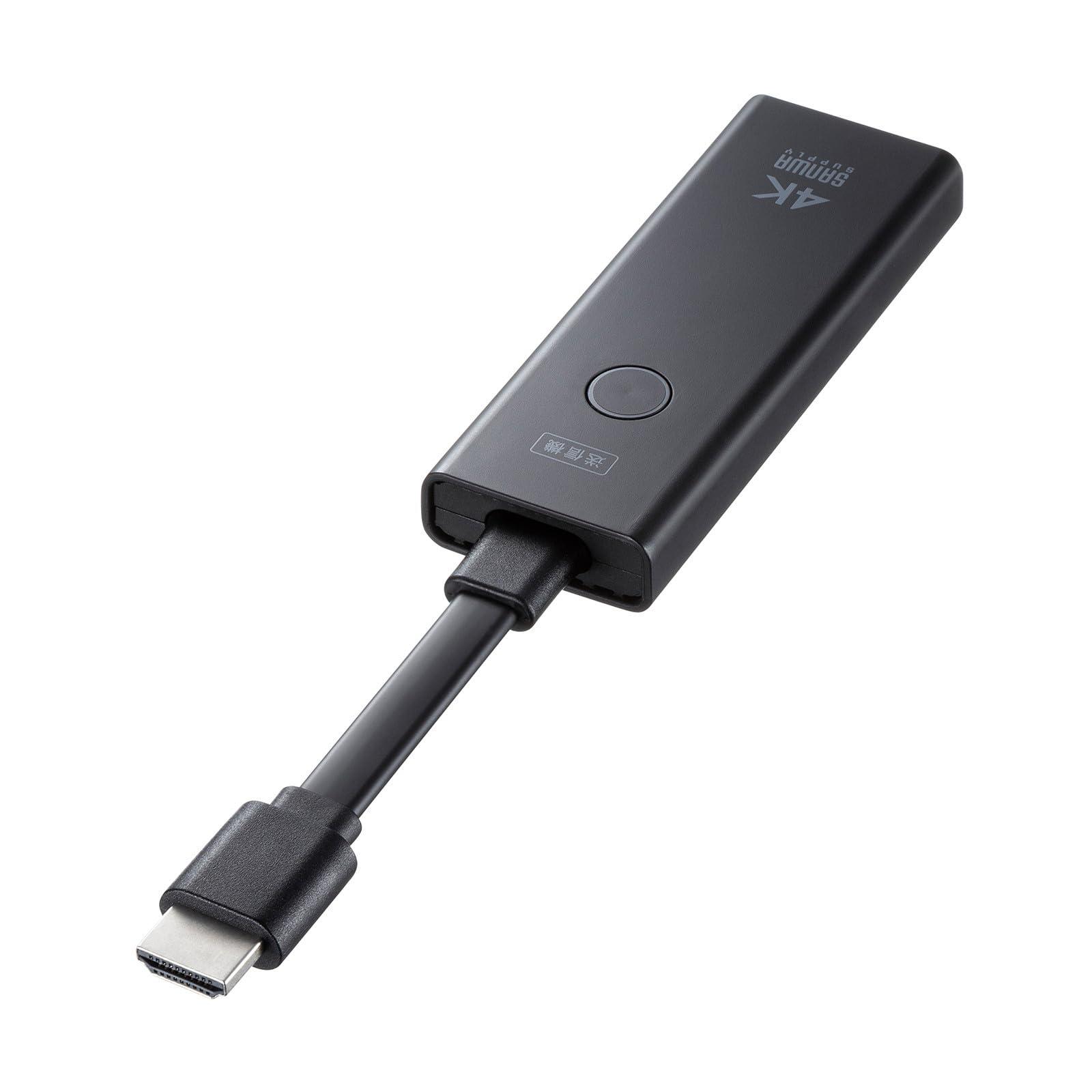

Sanwa Supply 4K-Compatible Wireless HDMI Extender (Type-C Connection, Transmitter Only) VGA-EXWHD12CTX

4969887595756

B0D69YF5CJ

VGA-EXWHD12CTX

Sanwa Supply-Sanwa-Supply-VGA-EXWHD12CTX-4K Compatible Wireless HDMI Extender
▪️ This is a standalone transmitter unit that can be added or expanded to the Wireless HDMI Extender VGA-EXWHD12 or VGA-EXWHD12C.\

▪️ Easily add or expand existing VGA-EXWHD12/VGA-EXWHD12C environments with simple pairing. Switch between multiple HDMI devices wirelessly with a single button press.\
▪️ Operates via USB power from a Type-C port, requiring only one cable connection. Ideal for conference systems and presentation setups using laptops or tablets.\
▪️ Supports USB Power Delivery (USB PD) adapters up to 60W. Connecting a separate USB PD-compatible AC adapter allows simultaneous wireless video output from this device while powering the connected laptop.\
▪️ Wirelessly extends both HDMI video signals from the Type-C output and high-quality audio signals.\
▪️Certified compliant with technical standards for use in Japan (TELEC certification).\


■Interfaces: Input/USB Type-C Male ×1\
USB Type-C Female ×1 (PD charging only)\


■Transmission Distance: Up to 15m (unobstructed)\
※May vary depending on usage environment.\


■Operating Frequency Band: 5.1GHz to 5.25GHz\


■HDMI Standard: HDMI Ver1.4\


■HDCP: HDCP1.4\


■Video Latency: 1080p: Approx. 100ms\
4K: Approx. 250ms\


■Device Control (CEC): Not supported\


■Supported Audio Format: PCM\


■Power Consumption (Max): 4.5W\
5V/0.9A\
※Power supply recommended from a USB 5Gbps (USB3.2 Gen2/USB3.1 Gen2) compliant port or a USB-AC adapter with 5V/1A or higher output\


■Environmental Conditions: Operating/Temperature 0°C to 40°C, Humidity 10% to 80% RH (non-condensing)\
Storage/Temperature -10°C to 60°C, Humidity 5% to 90% RH (non-condensing)\


■Dimensions: W100 × D34 × H13mm (case only)\


■Weight: Approx. 54g\


■USB PD Input Port: Yes (Transmitter side)\


■Supported Input Power (USB PD): Max 60W\


■Max PC Power Supply (USB PD Standard): 55.5W\


■Installation Conditions: Indoor use only\


■Set Contents: Transmitter ×1, Instruction Manual ×1
Brand Name: Sanwa Supply
This transmitter (sold separately) can be added to or expanded with the Wireless HDMI Extender VGA-EXWHD12 or VGA-EXWHD12C. Switch between multiple HDMI devices with a single button press to wirelessly output content sequentially.
Operates via USB power from a Type-C port, requiring only a single cable connection. Ideal for meeting systems and presentation environments using laptops or tablets.
Compatible with USB Power Delivery (USB PD) adapters up to 60W. Connecting a separate USB PD-compatible AC adapter allows this unit to wirelessly output video while simultaneously powering the connected laptop.
High-quality audio is transmitted alongside the HDMI video signal from the Type-C output.

63x38x260 mm

100 g
