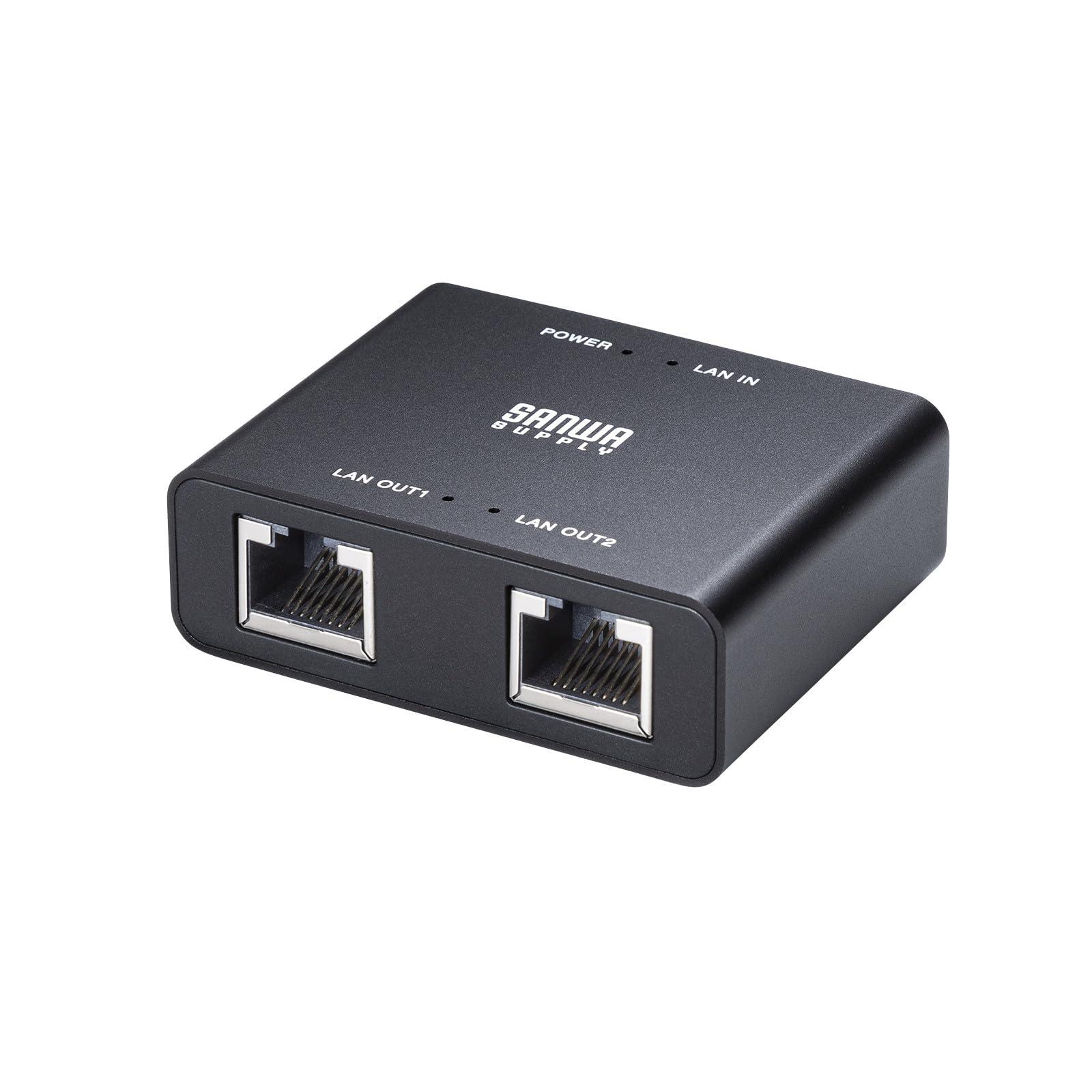

Sanwa Supply Switching Hub USB Type-C Power Delivery, 3 Ports Splits 1 LAN Cable into 2 Connections Black LAN-GIGAC302BK
JAN
4969887773215
ASIN
B0F27X8JKR
Maker
Model No.
LAN-GIGAC302BK
Color
Size
Description
SANWA SUPPLY - Switching Hub - Compact Aluminum Case - Type-C Power Supply - LAN - GIGAC302BK
▪️This is an ultra-compact 3-port switching hub that supports 1000BASE-T.
*This product has switching hub functionality, but does not support some functions.
This product can connect up to two devices below it, and hierarchical connections are not supported.
▪️Ideal for splitting one LAN cable into two for simultaneous connections.
▪️Powered by USB Type-C, it is easy to install.
▪️The aluminum case reduces the risk of heat dissipation.
*This product generates different amounts of heat when only powered on and when communicating.
The unit may overheat, especially with heavy continuous communication.
Continuous use in poorly ventilated environments may cause deterioration of internal components and shorten the product's lifespan.
When using the unit, do not place anything on top of it and leave at least 10cm of space around ventilation openings.
▪️ Equipped with an AUTO-MDIX function that allows you to use a straight cable or a crossover cable without worrying about which cable to use.
▪️ Equipped with an AUTO-Negotiation function that automatically switches between 10/100/1000Mbps depending on the connected device.
■ Number of ports: 3 ports
■ Maximum transmission speed: 1000Mbps (1000BASE-T)
■ Compliance standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX ), IEEE802.3ab (1000BASE-T)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex
■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) x 3 ports
■AutoMDI/MDI-X: Supported
■Compatible LAN cable: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE- TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 128Kbytes
(dynamically allocated to each port)
■Switch fabric: 1Gbps
■Maximum packet transfer capacity: 1000Mbps
■Filtering speed: 1,488,000 packets/second (1,000Mbps), 148,800 packets/second (100Mbps), 14,880 packets/second (10Mbps)
■Auto-negotiation: Supported
■Flow control: Not supported
■Power supply: USB Type-C (5V/500mA) Power Consumption: Maximum 2W Operating Environment: Temperature 0-40°C, Humidity 10-90% (non-condensing) Storage Environment: Temperature -10-60°C, Humidity 5-90% (non-condensing) Housing Material: Aluminum Package Contents: 1 x Main Unit, 1 x USB Type-CA Cable (for power supply, 1m), 1 x Instruction Manual Color: Black Size: Approx. 57mm W x 44.5mm D x 19mm H Weight: Approx. 0.8 oz (24g) Brand: Sanwa Supply This ultra-compact 3-port switching hub supports 1000BASE-T. While this product has a switching hub function, some features are not supported. A maximum of two devices can be connected below this product; hierarchical connections are not supported. This product is ideal for splitting a single LAN cable into two and connecting them simultaneously. It provides power via USB Type-C, making installation easy. Its aluminum casing reduces the risk of heat dissipation. *This product generates different amounts of heat when powered on and when communicating. Continuous heavy communication, in particular, may cause the unit to overheat. Continuous use in poorly ventilated environments may cause deterioration of internal components and shorten the product's lifespan. When using this product, do not place anything on top of the unit and leave at least 10 cm of space around the ventilation openings. It features an AUTO-MDIX function, allowing you to use both straight and crossover cables. 4969887773215 Sanwa Supply Switching Hub, USB Type-C Power Supply, 3 Ports, Splits a Single LAN Cable into Two, Black, LAN-GIGAC302BK (text created at , 2025-07-01)
▪️This is an ultra-compact 3-port switching hub that supports 1000BASE-T.
*This product has switching hub functionality, but does not support some functions.
This product can connect up to two devices below it, and hierarchical connections are not supported.
▪️Ideal for splitting one LAN cable into two for simultaneous connections.
▪️Powered by USB Type-C, it is easy to install.
▪️The aluminum case reduces the risk of heat dissipation.
*This product generates different amounts of heat when only powered on and when communicating.
The unit may overheat, especially with heavy continuous communication.
Continuous use in poorly ventilated environments may cause deterioration of internal components and shorten the product's lifespan.
When using the unit, do not place anything on top of it and leave at least 10cm of space around ventilation openings.
▪️ Equipped with an AUTO-MDIX function that allows you to use a straight cable or a crossover cable without worrying about which cable to use.
▪️ Equipped with an AUTO-Negotiation function that automatically switches between 10/100/1000Mbps depending on the connected device.
■ Number of ports: 3 ports
■ Maximum transmission speed: 1000Mbps (1000BASE-T)
■ Compliance standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX ), IEEE802.3ab (1000BASE-T)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex
■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) x 3 ports
■AutoMDI/MDI-X: Supported
■Compatible LAN cable: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE- TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 128Kbytes
(dynamically allocated to each port)
■Switch fabric: 1Gbps
■Maximum packet transfer capacity: 1000Mbps
■Filtering speed: 1,488,000 packets/second (1,000Mbps), 148,800 packets/second (100Mbps), 14,880 packets/second (10Mbps)
■Auto-negotiation: Supported
■Flow control: Not supported
■Power supply: USB Type-C (5V/500mA) Power Consumption: Maximum 2W Operating Environment: Temperature 0-40°C, Humidity 10-90% (non-condensing) Storage Environment: Temperature -10-60°C, Humidity 5-90% (non-condensing) Housing Material: Aluminum Package Contents: 1 x Main Unit, 1 x USB Type-CA Cable (for power supply, 1m), 1 x Instruction Manual Color: Black Size: Approx. 57mm W x 44.5mm D x 19mm H Weight: Approx. 0.8 oz (24g) Brand: Sanwa Supply This ultra-compact 3-port switching hub supports 1000BASE-T. While this product has a switching hub function, some features are not supported. A maximum of two devices can be connected below this product; hierarchical connections are not supported. This product is ideal for splitting a single LAN cable into two and connecting them simultaneously. It provides power via USB Type-C, making installation easy. Its aluminum casing reduces the risk of heat dissipation. *This product generates different amounts of heat when powered on and when communicating. Continuous heavy communication, in particular, may cause the unit to overheat. Continuous use in poorly ventilated environments may cause deterioration of internal components and shorten the product's lifespan. When using this product, do not place anything on top of the unit and leave at least 10 cm of space around the ventilation openings. It features an AUTO-MDIX function, allowing you to use both straight and crossover cables. 4969887773215 Sanwa Supply Switching Hub, USB Type-C Power Supply, 3 Ports, Splits a Single LAN Cable into Two, Black, LAN-GIGAC302BK (text created at , 2025-07-01)
Package
Size (Approx.):
Size (Approx.):
100x27x170 mm
Package
Weight (Approx.):
Weight (Approx.):
110 g
4,010 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-22
Quantity :
Reference Price from Other Stores
