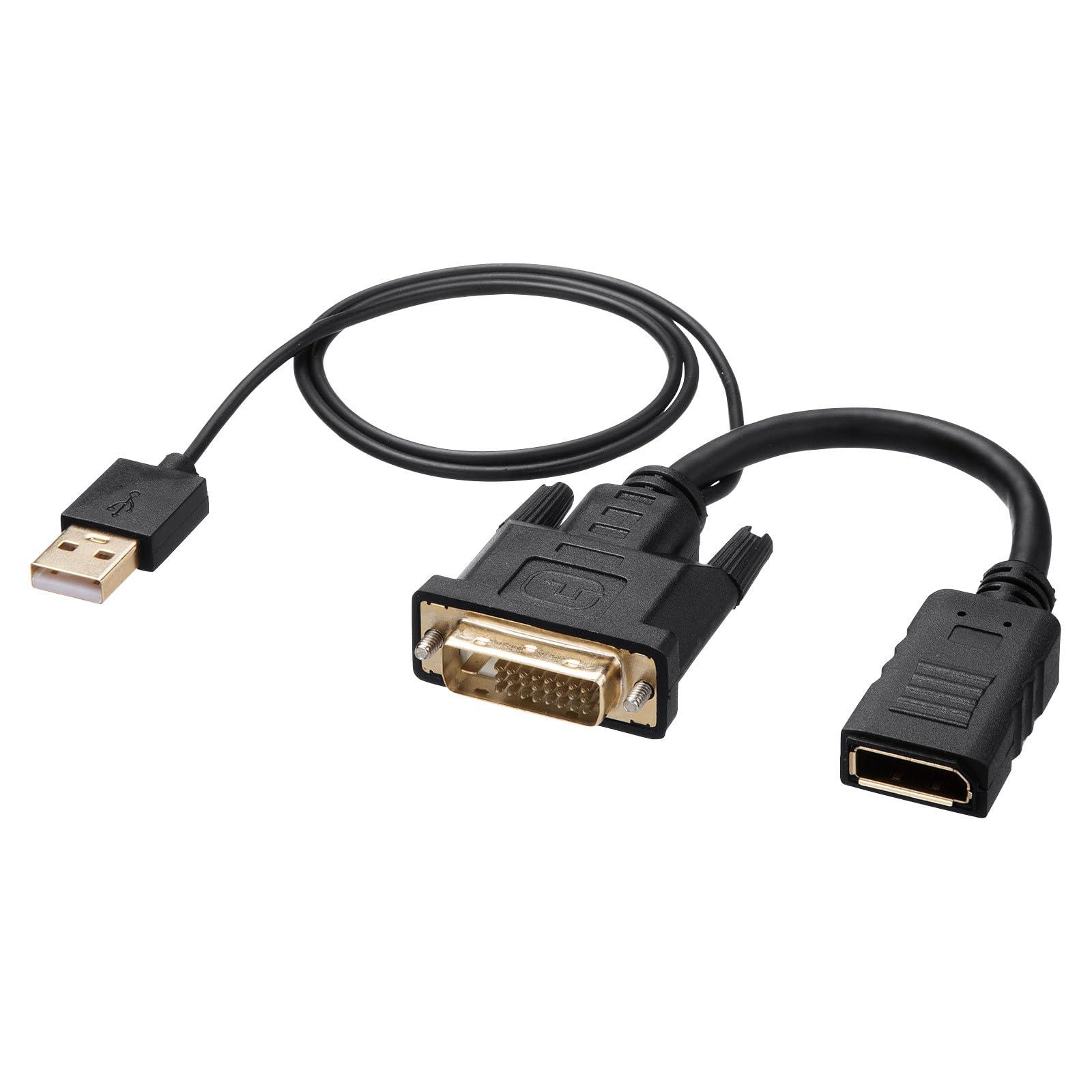

Sanwa Supply DVI to DisplayPort Adapter 4K/30Hz Black AD-DVDP01
JAN
4969887774038
ASIN
B0FGQ7787Q
Maker
Model No.
AD-DVDP01
Color
Size
Description
Sanwa Supply-Sanwa-Supply-AD-DVDP01-DVI-DisplayPort Conversion Adapter (4K)
▪️Converts DVI signals to DisplayPort signals, enabling video output to displays with DisplayPort inputs.
▪️Supports 4K (3840×2160)/30Hz resolution, converting high-definition DVI signals to DisplayPort signals.
▪️Integrated USB power cable eliminates the need for AC power.
▪️Integrated USB power cable eliminates the need for an AC power source. 【Important Notes】
※This product requires power via the integrated USB A cable. (Requires a USB port providing 5V/500mA or higher)
※Does not support DVI analog mode.
※Does not support audio output.
※Operation is not guaranteed with all devices.
【 Video Input Port 】
■Port Type: DVI Digital (Dual-Link) Male
USB A Male (Power Only)
【 Video Output Port 】
■Port Type: DisplayPort Female
■Maximum Supported Resolution: 4K/30Hz
■Supported Resolution: Maximum Display Resolution 3840×2160/30Hz
※The PC, projector, display, and connection cables must all support the same resolution.
■HDCP: HDCP1.4, HDCP2.2
【 Video Standards 】
■DisplayPort Standard: Ver.1.2
■DVI Standard: Digital Dual-Link
【 Common Specifications 】
■Connector Type: DVI Male - DisplayPort Female
■Current Consumption: 100mA
■Dimensions: Approx. W37.5 × D21.7 × H10.6mm (DisplayPort side)
■Weight: Approx. 58g
■Shielding Method: Triple Shielding (Cable Section)
■Cable Length: DVI/Approx. 150mm
USB/Approx. 600mm
■Cable Diameter: DVI/Approx. 6.0mm
USB/Approx. 2.5mm
Brand Name: Sanwa Supply
Converts DVI signals to DisplayPort signals, enabling video output to displays with DisplayPort inputs.
Supports 4K (3840×2160)/30Hz resolution, converting high-definition DVI signals to DisplayPort signals.
Integrated USB power cable eliminates the need for an AC power source. 【Important Notes】 ※This product requires power via the integrated USB A cable. (Requires a USB port providing 5V/500mA or higher) ※Does not support DVI analog mode. ※Does not support audio output. ※Operation is not guaranteed with all devices.
4969887774038
Sanwa Supply DVI-DisplayPort Conversion Adapter 4K/30Hz Black AD-DVDP01
(text created at , 2025-09-07)
▪️Converts DVI signals to DisplayPort signals, enabling video output to displays with DisplayPort inputs.
▪️Supports 4K (3840×2160)/30Hz resolution, converting high-definition DVI signals to DisplayPort signals.
▪️Integrated USB power cable eliminates the need for AC power.
▪️Integrated USB power cable eliminates the need for an AC power source. 【Important Notes】
※This product requires power via the integrated USB A cable. (Requires a USB port providing 5V/500mA or higher)
※Does not support DVI analog mode.
※Does not support audio output.
※Operation is not guaranteed with all devices.
【 Video Input Port 】
■Port Type: DVI Digital (Dual-Link) Male
USB A Male (Power Only)
【 Video Output Port 】
■Port Type: DisplayPort Female
■Maximum Supported Resolution: 4K/30Hz
■Supported Resolution: Maximum Display Resolution 3840×2160/30Hz
※The PC, projector, display, and connection cables must all support the same resolution.
■HDCP: HDCP1.4, HDCP2.2
【 Video Standards 】
■DisplayPort Standard: Ver.1.2
■DVI Standard: Digital Dual-Link
【 Common Specifications 】
■Connector Type: DVI Male - DisplayPort Female
■Current Consumption: 100mA
■Dimensions: Approx. W37.5 × D21.7 × H10.6mm (DisplayPort side)
■Weight: Approx. 58g
■Shielding Method: Triple Shielding (Cable Section)
■Cable Length: DVI/Approx. 150mm
USB/Approx. 600mm
■Cable Diameter: DVI/Approx. 6.0mm
USB/Approx. 2.5mm
Brand Name: Sanwa Supply
Converts DVI signals to DisplayPort signals, enabling video output to displays with DisplayPort inputs.
Supports 4K (3840×2160)/30Hz resolution, converting high-definition DVI signals to DisplayPort signals.
Integrated USB power cable eliminates the need for an AC power source. 【Important Notes】 ※This product requires power via the integrated USB A cable. (Requires a USB port providing 5V/500mA or higher) ※Does not support DVI analog mode. ※Does not support audio output. ※Operation is not guaranteed with all devices.
4969887774038
Sanwa Supply DVI-DisplayPort Conversion Adapter 4K/30Hz Black AD-DVDP01
(text created at , 2025-09-07)
Package
Size (Approx.):
Size (Approx.):
90x26x180 mm
Package
Weight (Approx.):
Weight (Approx.):
104 g
5,792 JPY (Including Tax)
