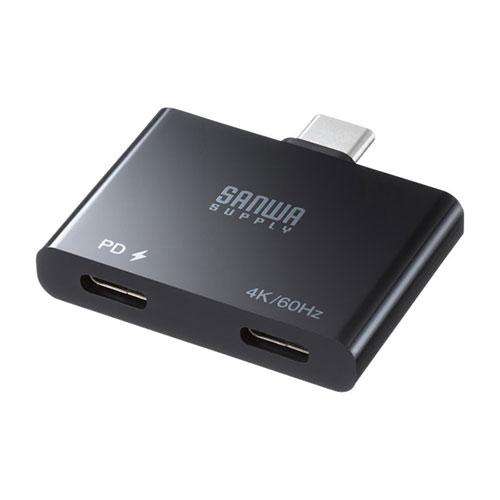

Sanwa Supply USB Type-C Expansion Adapter Adapter Type PD Compatible AD-ALCCPD01

4969887774311

B0FSKN1TXP

AD-ALCCPD01

Sanwa Supply - Type-C Expansion Adapter - Adapter Type - AD-ALCCPD01
▪️ This adapter expands USB Type-C video output from computers, tablets, or smartphones equipped with USB Type-C (only Type-C ports supporting video output) to USB Type-C video output while simultaneously enabling PD charging.\

▪️Enables USB Type-C display output while PD charging when connecting to devices with limited ports, such as iPhones/iPads.\
▪️Compatible with PD adapters up to 100W, allowing charging of PCs/tablets/smartphones via this product.\
▪️ Its compact adapter design ensures a clean connection. 【Please Confirm Before Purchase】\
※ Compatible with PCs, tablets, or smartphones equipped with a USB Type-C port supporting DisplayPort Alternate Mode.\
※ A separate USB PD adapter is required for charging USB PD-compatible devices.\
※ This product's maximum transfer speed is USB 2.0, 480Mbps (theoretical value). \
※This product supports USB 2.0, 480Mbps but does not guarantee USB 2.0, 480Mbps (theoretical value) transfer speeds.\
※USB 2.0 devices can be connected to this product's USB ports, but transfer speeds will be limited to USB 2.0 speeds.\
※Connection and operation are not guaranteed with all USB devices.\
【 USB 】\


■Interface Standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant\


■Connector Configuration:\
Upstream/USB 5Gbps Type-C Connector (Male)\
Downstream/USB Type-C Connector (Female) ×1 (Video Output + USB 2.0 480Mbps Support)\
USB Type-C Connector (Female) ×1 (PD Charging Only / PD 100W Support)\


■Power: Supports both self-powered and bus-powered modes\
*Can also be used as self-powered by connecting to a PD-compatible AC adapter included with the PC.\
*Using an AC adapter rated at 45W or less may prevent the PC from entering charging mode.\


■Supply Current:\
USB Type-C Female Connector (Video Output + USB 2.0 Side) / Max 1500mA\
USB Type-C Female Connector (PD Adapter Connection Side) / Power Receiving Only. No Power Delivery Function\
*Depends on the supply current from the computer.\
【 Video Output Ports 】\


■Maximum Supported Resolution: 4K/60Hz\


■Supported Resolution: Maximum Display Resolution 4K/60Hz\
※Output at 4K/60Hz requires the computer's Type-C port to support DP1.4.\
※The computer, projector or display, and connection cable must all support the same resolution.\


■HDR Support: Supported\


■HDCP: HDCP 1.4, HDCP 2.2, HDCP 2.3\
【 Video Standard 】\


■HDMI Standard: HDMI 2.0\
【 PD 】\


■PD Support: Supported\
【 Power Supply 】\


■USB PD Maximum Input: 100W\
【 PC Connection Port 】\

90x21x180 mm

47 g
