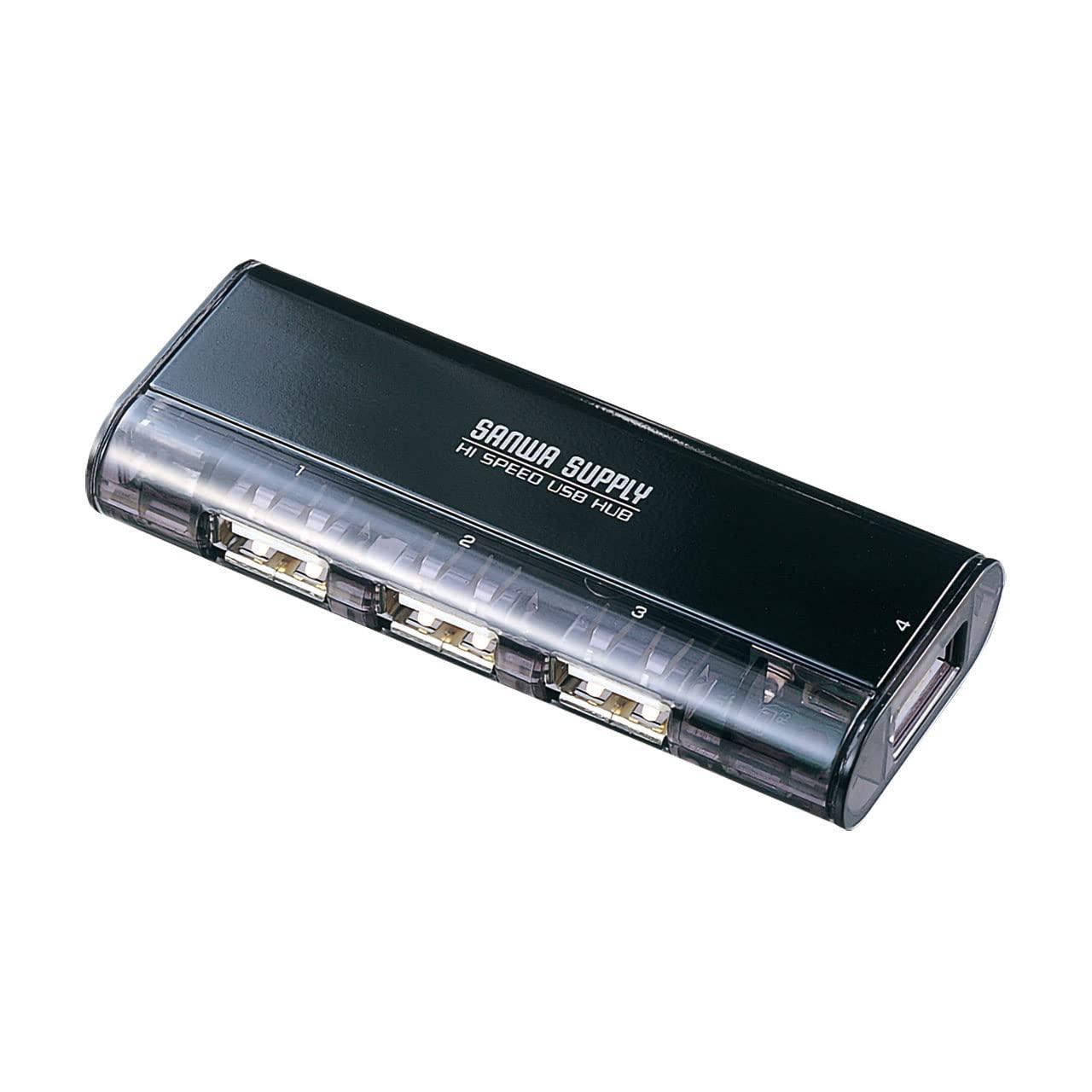

Sanwa Supply USB 2.0 Hub USB-HUB226GBKN Black
JAN
4969887782101
ASIN
B09TDCLZKM
Maker
Model No.
USB-HUB226GBKN
Color
Size
Description
Sanwa Supply - Sanwa Supply - USB-HUB226GBKN-USB2-0 Hub
▪️ Powerful Magnet: This USB hub features a powerful magnet on the back, allowing it to be attached to steel tabletops or frames. The layout features three ports on one side and one port on the side, so USB devices with large connectors can be used on the side without blocking other ports. This is a four-port USB hub compatible with USB 2.0. This is a bus-powered USB hub that does not require an AC adapter. The optional AC adapter (sold separately, USB-AC1) also supports self-powered mode, supplying 500mA to each port. <Notes> When using bus-powered mode, the hub may not function depending on the total current consumption of the connected USB devices. This occurs when the total current consumption of the peripheral devices connected to this USB hub exceeds 350mA. The wide range in total current consumption is due to differences in computers and USB ports, which in turn affect the current supplied to the connected USB hub. *If the device does not work due to the total current consumption in bus power mode,
1. Do not connect any USB devices to this USB hub when starting up the computer, and then connect the USB devices after starting up.
2. If the device still does not work, reduce the number of connected peripheral devices one by one.
3. If the device still does not work, connect the separately sold AC adapter (USB-AC1) to the USB hub and use it. 0Mbps/12Mbps/1.5Mbps (theoretical value)
■Connector type: USB 2.0 A connector female x 4 (downstream)
Mini USB B connector female x 1 (upstream)
■Connector type (PC connection side): USB A
■Power supply: Bus powered
■Supplied current: Maximum 350mA (total for all ports)
*If the current consumption of the connected device exceeds the current supplied by this product, it may not function properly even when bus-powered.
■Number of Ports (Total): 4 ports
■Dimensions: W83 x D34 x H15mm
■Weight: Approx. 33g
■Cable Length: 1m
■Accessories: Mini USB Cable (USB A Male to Mini USB B Male) Approx. 1.0m
■Overcurrent Protection: Built-in Brand: Sanwa Supply This USB hub features a powerful magnet on the back, allowing it to be attached to steel tabletops or frames. With three ports on one side and one on the side, larger USB devices can be used on the side without blocking other ports. This 4-port USB hub supports USB 2.0. This is a bus-powered USB hub that does not require an AC adapter. It also supports self-powered mode, supplying 500mA to each port with the optional AC adapter (sold separately, USB-AC1). <Notes> *When using bus-powered mode, the hub may not function depending on the total current consumption of the connected USB devices. This occurs when the total current consumption of the peripheral devices connected to this USB hub exceeds 350mA. The wide range in total values is due to differences in computers and USB ports, which in turn affect the current supplied to the connected USB hub. If the hub does not operate due to the total current consumption value in bus-powered mode, try the following: 1. Do not connect any USB devices to the hub when starting up the computer, and then connect them after startup. 2. If the hub still does not operate, try connecting one peripheral at a time. 3. If the hub still does not operate, try connecting the optional AC adapter (USB-AC1) to the hub. Generally, bus-powered (non-AC adapter) USB peripherals such as scanners, hard disks, CD/CD-R drives, MO drives, and ADSL modems require a large amount of power. Therefore, be sure to use the optional AC adapter (USB-AC1). 4969887782101 Sanwa Supply USB 2.0 Hub USB-HUB226GBKN Black (text created at , 2025-05-11)
▪️ Powerful Magnet: This USB hub features a powerful magnet on the back, allowing it to be attached to steel tabletops or frames. The layout features three ports on one side and one port on the side, so USB devices with large connectors can be used on the side without blocking other ports. This is a four-port USB hub compatible with USB 2.0. This is a bus-powered USB hub that does not require an AC adapter. The optional AC adapter (sold separately, USB-AC1) also supports self-powered mode, supplying 500mA to each port. <Notes> When using bus-powered mode, the hub may not function depending on the total current consumption of the connected USB devices. This occurs when the total current consumption of the peripheral devices connected to this USB hub exceeds 350mA. The wide range in total current consumption is due to differences in computers and USB ports, which in turn affect the current supplied to the connected USB hub. *If the device does not work due to the total current consumption in bus power mode,
1. Do not connect any USB devices to this USB hub when starting up the computer, and then connect the USB devices after starting up.
2. If the device still does not work, reduce the number of connected peripheral devices one by one.
3. If the device still does not work, connect the separately sold AC adapter (USB-AC1) to the USB hub and use it. 0Mbps/12Mbps/1.5Mbps (theoretical value)
■Connector type: USB 2.0 A connector female x 4 (downstream)
Mini USB B connector female x 1 (upstream)
■Connector type (PC connection side): USB A
■Power supply: Bus powered
■Supplied current: Maximum 350mA (total for all ports)
*If the current consumption of the connected device exceeds the current supplied by this product, it may not function properly even when bus-powered.
■Number of Ports (Total): 4 ports
■Dimensions: W83 x D34 x H15mm
■Weight: Approx. 33g
■Cable Length: 1m
■Accessories: Mini USB Cable (USB A Male to Mini USB B Male) Approx. 1.0m
■Overcurrent Protection: Built-in Brand: Sanwa Supply This USB hub features a powerful magnet on the back, allowing it to be attached to steel tabletops or frames. With three ports on one side and one on the side, larger USB devices can be used on the side without blocking other ports. This 4-port USB hub supports USB 2.0. This is a bus-powered USB hub that does not require an AC adapter. It also supports self-powered mode, supplying 500mA to each port with the optional AC adapter (sold separately, USB-AC1). <Notes> *When using bus-powered mode, the hub may not function depending on the total current consumption of the connected USB devices. This occurs when the total current consumption of the peripheral devices connected to this USB hub exceeds 350mA. The wide range in total values is due to differences in computers and USB ports, which in turn affect the current supplied to the connected USB hub. If the hub does not operate due to the total current consumption value in bus-powered mode, try the following: 1. Do not connect any USB devices to the hub when starting up the computer, and then connect them after startup. 2. If the hub still does not operate, try connecting one peripheral at a time. 3. If the hub still does not operate, try connecting the optional AC adapter (USB-AC1) to the hub. Generally, bus-powered (non-AC adapter) USB peripherals such as scanners, hard disks, CD/CD-R drives, MO drives, and ADSL modems require a large amount of power. Therefore, be sure to use the optional AC adapter (USB-AC1). 4969887782101 Sanwa Supply USB 2.0 Hub USB-HUB226GBKN Black (text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
85x37x168 mm
Package
Weight (Approx.):
Weight (Approx.):
80 g
5,012 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-02-10
Quantity :
Reference Price from Other Stores
