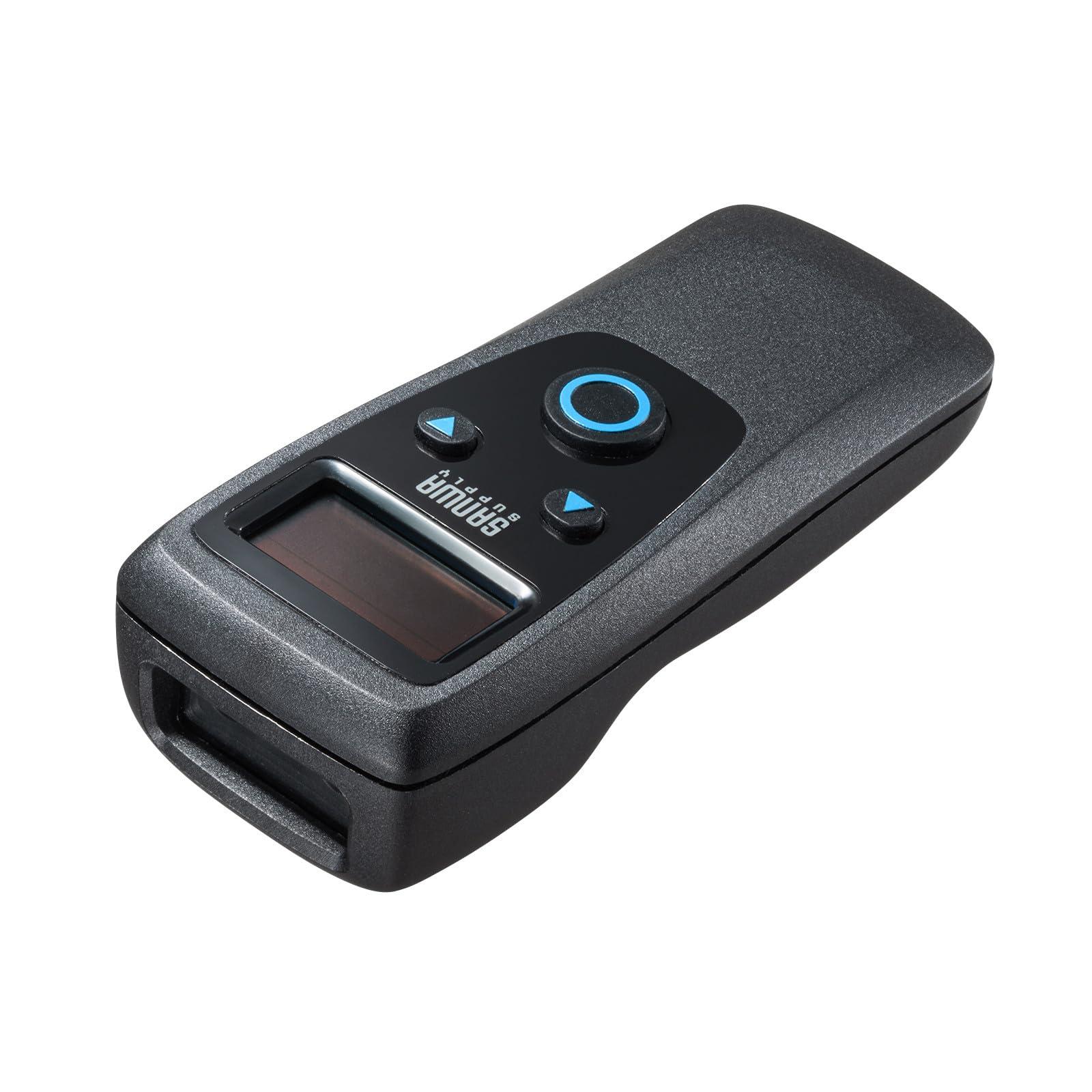

Sanwa Supply Mobile Wireless 2D Barcode Reader with LCD Display, Black BCR-BT2D14BK

4969887807453

B0FL6J5MHZ

BCR-BT2D14BK

Sanwa Supply-Sanwa-Supply-BCR-BT2D14BK-Mobile Wireless 2D Barcode Reader (with LCD)
▪️ Features an LCD screen for on-the-spot verification of scanned barcodes. Confirm barcode contents via the LCD screen even when away from the connected device (PC, etc.).
▪️ Choose from three connection methods—USB, Bluetooth, or 2.4GHz wireless—to suit your application and device.
▪️ Equipped with memory functionality for offline use. Scan barcodes even without a network connection and transfer data later.
▪️ Equipped with memory functionality for offline use. Scan barcodes even in locations without a network and transfer data later.\
▪️ Easily view settings and scan sound configurations directly on the barcode reader itself without needing option codes.\
▪️ Confirm barcode scans via vibration feedback, useful in quiet or noisy environments.\

▪️ Supports reading Japanese QR codes.\
▪️ Capable of reading barcode standards used in medical settings, such as GS1-128 and Databar.\
▪️ Compact and portable. Small and lightweight, with a strap hole to help prevent loss.\
▪️ Includes a protective silicone case. Shields the unit from dirt and impacts.\


■Interface: USB HID\


■Communication Range:\
Bluetooth connection: 10m (Class 2)\
2.4G connection: 30m\
*Varies depending on usage environment.\


■Power Supply: Built-in Lithium Polymer Battery (3.7V/800mAh)\


■Included Items: Silicone Cover, USB Receiver, USB Cable, Instruction Manual\


■Compliant Standard: Bluetooth 4.2\


■Memory: 16MB ※Can store approximately 2 million EAN-13 barcodes\


■PCS Value: ≥20%\


■Reading Depth:\
\
3 Mil Code 39/70–100mm\
5 Mil Code 39/40–160mm\
13 Mil UPC/EAN/65–245mm\
15 Mil QR Code/45–215mm\\ n6.67 Mil PDF417/55–115mm\
10 Mil Data Matrix/55–105mm\


■Light source: White LED\
Aiming LED/Red LED\


■Scan speed: 120 frames/sec\


■Operating time/cycles: Approx. 14 hours/10,000 scans\


■Charging time: 2 hours\


■Readable codes (1D): JAN, EAN-8, EAN-13, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, MSI, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded\


■Readable Codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, AztecCode\


■Reading Method: CMOS\


■Protection Rating: Shockproof/1.5m\


■Resolution 2D Code: 0.178mm\
QR (7mil)\


■1D Code Resolution: 0.075mm\
3mil\


■Reading Angle:\
Pitch/60°\
Skew/60°\
Tilt/360°\


■Current Consumption (Operating): 400mA\


■Japanese QR: Supported ※iOS,

68x65x150 mm

182 g
