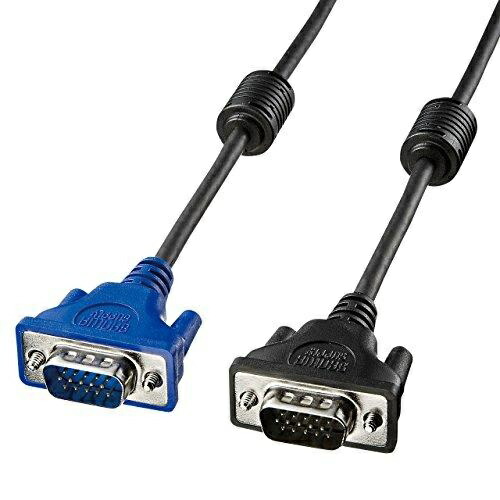

Sanwa Supply Display Cable Mini D-sub 15-pin (VGA-VGA) 10m Slim KC-VMH100
JAN
4969887816011
ASIN
B00340I9X8
Maker
Model No.
KC-VMH100
Color
Size
Description
SANWA-SUPPLY-KC-VMH100-Display Cable-10m
▪️This cable connects various manufacturers' PC units to displays.
▪️Features an ultra-slim cable with an outer diameter of 4.5mm and compact connectors (approximately 40% smaller in volume than conventional models). This keeps cable routing and the rear of connected devices neat and tidy.
▪️It is a composite coaxial cable using 75Ω coaxial cable for R, G, and B video signals. Highly resistant to noise with minimal signal loss, ensuring exceptional image quality even in high-resolution modes.
▪️Ferrite cores are fitted at both ends to absorb high-frequency noise.
▪️Gold-plated pins (contacts) are used, offering corrosion resistance and minimizing signal degradation over time.
▪️ This dual-shielded cable features a sealed aluminum shield inside a high-density copper braided shield, protecting vital data from most noise across the entire frequency range, from low to high frequencies.
▪️ The molded connector is reinforced internally with resin and fully shielded, providing complete protection against external interference and noise. It also offers excellent vibration and shock resistance.
▪️ This is a PC99 cable based on the personal computer standard jointly developed by Intel and Microsoft. Connectors are color-coded to ensure correct connection between the computer and peripherals.
▪️ Lead-free solder, containing almost no lead, is used to secure the cable's core wires to the pins inside the connectors.
▪️This product complies with the RoHS Directive.
■Color: Cable/Black Connector/Blue (HD15pin Male), Black (HD15pin Male)
■Cable Length: 10m
■Cable Diameter: 4.5mm
■Connector Type: Mini D-sub 15-pin Male with inch screws (4-40) - Mini D-sub 15-pin Male with inch screws (4-40)
■Wire Standard: UL20276
Brand Name: Sanwa Supply
This cable connects various computer main units to displays.
Color: Cable/Black Connector/Blue (HD15pin Male), Black (HD15pin Male)
Cable Length: 10m
Cable Diameter: 4.5mm
Connector Type: Mini D-sub 15-pin Male with 4-40 inch screws - Mini D-sub 15-pin Male with 4-40 inch screws
Wire Specification: UL20276
4969887816011
Sanwa Supply Display Cable Mini D-sub 15-pin (VGA-VGA) 10m Slim KC-VMH100
(text created at , 2025-05-11)
▪️This cable connects various manufacturers' PC units to displays.
▪️Features an ultra-slim cable with an outer diameter of 4.5mm and compact connectors (approximately 40% smaller in volume than conventional models). This keeps cable routing and the rear of connected devices neat and tidy.
▪️It is a composite coaxial cable using 75Ω coaxial cable for R, G, and B video signals. Highly resistant to noise with minimal signal loss, ensuring exceptional image quality even in high-resolution modes.
▪️Ferrite cores are fitted at both ends to absorb high-frequency noise.
▪️Gold-plated pins (contacts) are used, offering corrosion resistance and minimizing signal degradation over time.
▪️ This dual-shielded cable features a sealed aluminum shield inside a high-density copper braided shield, protecting vital data from most noise across the entire frequency range, from low to high frequencies.
▪️ The molded connector is reinforced internally with resin and fully shielded, providing complete protection against external interference and noise. It also offers excellent vibration and shock resistance.
▪️ This is a PC99 cable based on the personal computer standard jointly developed by Intel and Microsoft. Connectors are color-coded to ensure correct connection between the computer and peripherals.
▪️ Lead-free solder, containing almost no lead, is used to secure the cable's core wires to the pins inside the connectors.
▪️This product complies with the RoHS Directive.
■Color: Cable/Black Connector/Blue (HD15pin Male), Black (HD15pin Male)
■Cable Length: 10m
■Cable Diameter: 4.5mm
■Connector Type: Mini D-sub 15-pin Male with inch screws (4-40) - Mini D-sub 15-pin Male with inch screws (4-40)
■Wire Standard: UL20276
Brand Name: Sanwa Supply
This cable connects various computer main units to displays.
Color: Cable/Black Connector/Blue (HD15pin Male), Black (HD15pin Male)
Cable Length: 10m
Cable Diameter: 4.5mm
Connector Type: Mini D-sub 15-pin Male with 4-40 inch screws - Mini D-sub 15-pin Male with 4-40 inch screws
Wire Specification: UL20276
4969887816011
Sanwa Supply Display Cable Mini D-sub 15-pin (VGA-VGA) 10m Slim KC-VMH100
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
112x50x186 mm
Package
Weight (Approx.):
Weight (Approx.):
299 g
4,455 JPY (Including Tax)
