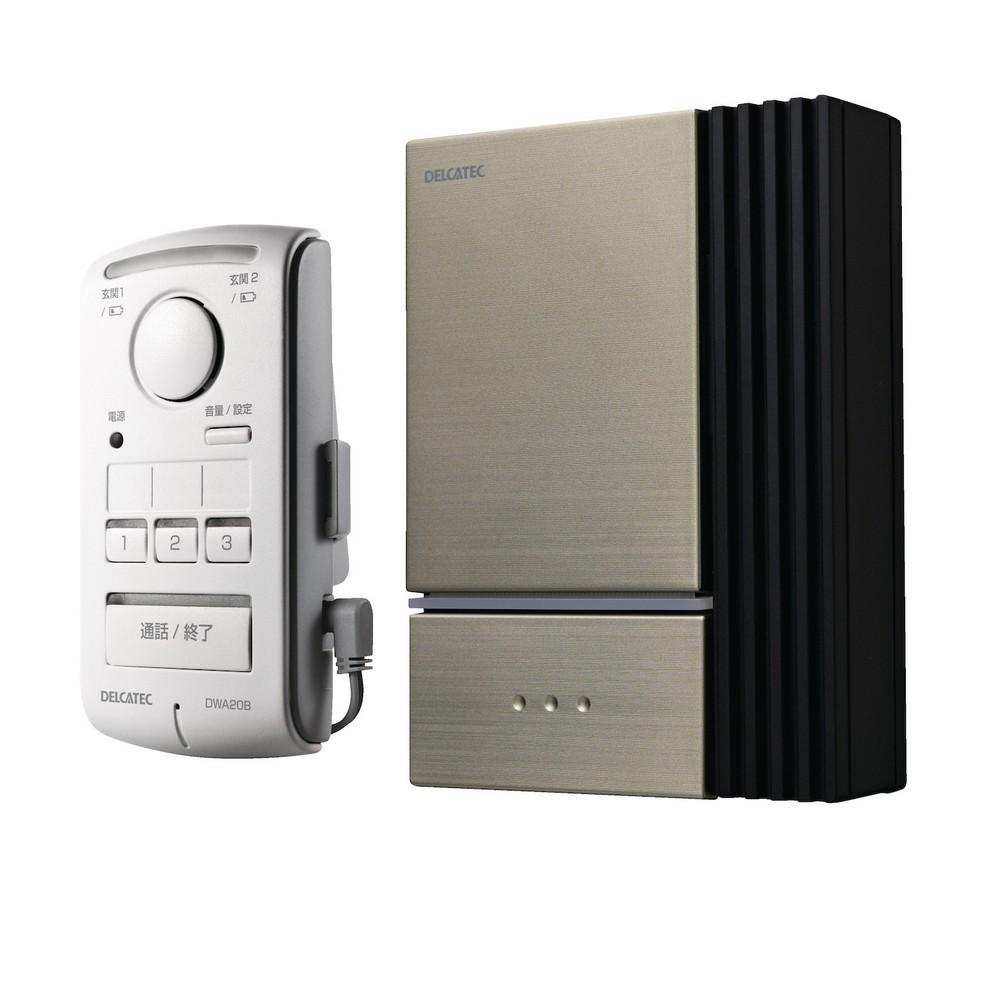

DX Antenna Wireless Intercom Doorphone Indoor Parent Unit & Indoor Child Unit Set No Wiring Required DWA20BR
JAN
4975584703035
ASIN
B094N611G3
Maker
Model No.
DWA20BR
Color
Size
Description
DX Antenna - Wireless Intercom - Indoor Unit - Set - DWA20BR
■ Set Contents: Indoor Unit (Main), Indoor Unit (Slave)
■ Standard: ARIB STD-101 Compliant
■ Frequency: 1,895.616 - 1,902.528 MHz (1.728 MHz Steps)
■ Communication Method: Time Division Multiple Access (TDMA)
■ Call Distance: Approximately 100 m (line of sight) between the front door unit and the additional indoor unit (Slave): Approximately 200 m (line of sight) via the indoor unit (Main).
■ Number of Additional Units Registered: Indoor Unit (Main) Only: Up to 3 Indoor Units (Slave), 2 Front Door Units
■ Waterproofing: Indoor Unit (Slave) Only: IPX4 (Splash-proof)
■ Continuous Talk Time: Up to 5 hours (when the indoor unit (Slave) is fully charged. * Calls with the additional entrance handset last up to 3 minutes (automatic shutdown after 3 minutes). Power Source: Indoor Unit (Main): Uses dedicated AC adapter (included); Indoor Unit (Sub): Dedicated 2.5V 500mAh NiMH battery (included); Charging AC adapter (included). * Charging Time: Up to 10 hours (until fully charged). Power Consumption: Indoor Unit (Main): 0.66W during calls, 0.53W in standby mode; Indoor Unit (Sub): 0.1W in standby mode, 0.01W in standby mode. Ringtones: Indoor Unit (Main): 3 types for indoor unit, 2 types for entrance handset; Indoor Unit (Sub): 3 types for indoor unit. Volume Settings: 5 levels for ring volume, 4 levels for call volume, 6 levels for ring volume. Standby Time: Indoor Unit (Sub): Approximately 100 hours (when fully charged). Operating Temperature Range: -10 to +40°C. Dimensions: 120 x 60 x 24.4 mm (each) Weight: Indoor unit (main): Approximately 90 g (excluding wall-mount stand), indoor unit (slave): Approximately 120 g (including batteries, excluding wall-mount stand) Accessories: Two indoor unit button label sheets, two wall-mount stands, two dedicated AC adapters, one dedicated rechargeable battery pack, four wall mounting screws (M4 x 16 mm), one instruction manual (with warranty, 1-year warranty) This wireless intercom includes an indoor unit (main) and an indoor unit (slave). No wiring is required, so you can set it up and use it right away. Communicates using DECT technology. Compliant with the ARIB STD-T101 standard. Communication distance is up to 100 m (line-of-sight). Simple operation makes it easy to use, even for seniors. The large, easily visible incoming call indicator and the indoor unit 1 button indicator flash, making it easy to see when a call is coming from the indoor unit. Even elderly people who have difficulty hearing ringtones can hear incoming calls. The call volume is clear and high-quality, making it easy to hear.
■ Six ringtone and four call volume settings are available, and three ringtones (for calls from the indoor unit) are available. A missed call indicator is also available to notify you if no one is near the indoor unit (parent unit) when a call from the indoor unit (child unit) is received.
■ Five basic call and call methods are available (individual call, individual call, mass call, mass announcement, and emergency call mode). The versatile call and call functions allow you to create a communication system that provides peace of mind for elderly people and those in hospital at home.
■ Calls and calls can be made by pressing a designated indoor unit button. This set includes the indoor unit (child unit) registered to indoor unit 1. Calls, calls, and terminations are controlled by operating the indoor unit 1 button.
■ Individual indoor unit buttons allow the called party to talk without pressing a button. This is convenient for situations where the called party is at work or in bed and cannot operate buttons.
■ Calls all indoor units at once. You can talk to the indoor unit that first pressed the "Call/End" button. This set operates the same as a normal call.
■ The Call/End button calls all registered indoor units, allowing one-way calls (talking). Two-way calls are not possible. Pressing the "Call/End" button on the receiving unit will end the call only on that indoor unit. This set also ends the call on the calling unit side.
■ If you set the indoor unit (child) as an emergency call button, all set indoor units (child) can make an emergency call (sound an alarm) simultaneously. You can talk to the indoor unit that first pressed the Call/End button. This is convenient for emergency calls from elderly people or those in bed.
■ The indoor unit (child) has a key lock setting to prevent accidental operation during transportation.
■ The wall-mounted stand allows for both wall and tabletop installation. The indoor unit (child) is waterproof (IPX4) and can be operated with wet hands.
■ The indoor unit (main) is powered by the included AC adapter, while the indoor unit (sub) uses the included rechargeable battery pack, which is placed in the battery case and charged with the AC adapter. The AC adapter alone is not supported.
■ The indoor unit (sub) can also be used with a mobile phone. When fully charged, it provides up to 5 hours of continuous talk time and approximately 100 hours of standby time. The power lamp flashes red when the battery is low.
■ Two optional additional entrance handset units (DWA20D) can be added. Both the indoor unit (main) and the indoor unit (sub) can handle calls from two locations. Identification lamps for Entrance 1 and Entrance 2 on either side of the incoming call lamp allow you to easily identify the call source.
■ Calls and conversations between the entrance handset and the indoor unit (sub) are relayed by the indoor unit (main). The indoor unit (main) can be set to silent mode when used solely as a relay.
■ Two optional additional indoor units (sub) (DWA20R) can be added. Calls and conversations are possible between the indoor unit (main unit) and the indoor unit (slave unit). If an additional entrance unit is installed, calls from the entrance unit will also be received by the indoor unit (main unit) and all indoor units (slave unit). Call rejection settings are also available. Includes: 2 wall-mounted stands, 2 dedicated AC adapters, 2 indoor unit button label sheets, 4 wall mounting screws (M4 x 16mm), 1 instruction manual (with warranty, 1-year warranty), 1 dedicated rechargeable battery pack (for the indoor unit (slave unit) only) ELECOM General Information Center TEL: 0570-084-465 FAX: 0570-050-012 Business Hours: 10:00 AM - 7:00 PM, Open 7 Days a Week Brand Name: DX Antenna Indoor Unit (Main): 1 x AC adapter (1.8m cord length), 1 x wall mount stand, 2 x wall mounting screws, 1 x indoor unit button label sheet; Indoor Unit (Sub): 1 x AC adapter (1.8m cord length), 1 x wall mount stand, 2 x wall mounting screws, 1 x indoor unit button label sheet, 1 x rechargeable battery pack. This wireless intercom includes an indoor unit (main) and an indoor unit (sub). No wiring is required, so it's ready to use right away. The indoor unit (sub) uses a built-in nickel-metal hydride rechargeable battery, making it easily portable. It communicates using DECT technology, conforming to the ARIB STD-T101 standard. Simple operation makes it easy to use, even for seniors. The large, easily visible incoming call indicator and the indoor unit 1 button indicator flash, making it easy to tell when a call is coming from the indoor unit. Even seniors who have difficulty hearing the ringtone can hear the incoming call. The call sound is clear, high-quality, and easy to hear. The ringtone volume can be adjusted in six levels, the call volume can be adjusted in four levels, and three ringtones (for calls from the indoor unit) can be selected. A missed call display can be set to notify you if no one is near the indoor unit (parent unit) when a call from the indoor unit (child unit) is received. The call distance is up to 100 meters (line of sight). 4975584703035 DX Antenna Wireless Intercom Doorphone Indoor Parent Unit & Indoor Handset Set No Wiring Required DWA20BR (text created at , 2025-08-11)
■ Set Contents: Indoor Unit (Main), Indoor Unit (Slave)
■ Standard: ARIB STD-101 Compliant
■ Frequency: 1,895.616 - 1,902.528 MHz (1.728 MHz Steps)
■ Communication Method: Time Division Multiple Access (TDMA)
■ Call Distance: Approximately 100 m (line of sight) between the front door unit and the additional indoor unit (Slave): Approximately 200 m (line of sight) via the indoor unit (Main).
■ Number of Additional Units Registered: Indoor Unit (Main) Only: Up to 3 Indoor Units (Slave), 2 Front Door Units
■ Waterproofing: Indoor Unit (Slave) Only: IPX4 (Splash-proof)
■ Continuous Talk Time: Up to 5 hours (when the indoor unit (Slave) is fully charged. * Calls with the additional entrance handset last up to 3 minutes (automatic shutdown after 3 minutes). Power Source: Indoor Unit (Main): Uses dedicated AC adapter (included); Indoor Unit (Sub): Dedicated 2.5V 500mAh NiMH battery (included); Charging AC adapter (included). * Charging Time: Up to 10 hours (until fully charged). Power Consumption: Indoor Unit (Main): 0.66W during calls, 0.53W in standby mode; Indoor Unit (Sub): 0.1W in standby mode, 0.01W in standby mode. Ringtones: Indoor Unit (Main): 3 types for indoor unit, 2 types for entrance handset; Indoor Unit (Sub): 3 types for indoor unit. Volume Settings: 5 levels for ring volume, 4 levels for call volume, 6 levels for ring volume. Standby Time: Indoor Unit (Sub): Approximately 100 hours (when fully charged). Operating Temperature Range: -10 to +40°C. Dimensions: 120 x 60 x 24.4 mm (each) Weight: Indoor unit (main): Approximately 90 g (excluding wall-mount stand), indoor unit (slave): Approximately 120 g (including batteries, excluding wall-mount stand) Accessories: Two indoor unit button label sheets, two wall-mount stands, two dedicated AC adapters, one dedicated rechargeable battery pack, four wall mounting screws (M4 x 16 mm), one instruction manual (with warranty, 1-year warranty) This wireless intercom includes an indoor unit (main) and an indoor unit (slave). No wiring is required, so you can set it up and use it right away. Communicates using DECT technology. Compliant with the ARIB STD-T101 standard. Communication distance is up to 100 m (line-of-sight). Simple operation makes it easy to use, even for seniors. The large, easily visible incoming call indicator and the indoor unit 1 button indicator flash, making it easy to see when a call is coming from the indoor unit. Even elderly people who have difficulty hearing ringtones can hear incoming calls. The call volume is clear and high-quality, making it easy to hear.
■ Six ringtone and four call volume settings are available, and three ringtones (for calls from the indoor unit) are available. A missed call indicator is also available to notify you if no one is near the indoor unit (parent unit) when a call from the indoor unit (child unit) is received.
■ Five basic call and call methods are available (individual call, individual call, mass call, mass announcement, and emergency call mode). The versatile call and call functions allow you to create a communication system that provides peace of mind for elderly people and those in hospital at home.
■ Calls and calls can be made by pressing a designated indoor unit button. This set includes the indoor unit (child unit) registered to indoor unit 1. Calls, calls, and terminations are controlled by operating the indoor unit 1 button.
■ Individual indoor unit buttons allow the called party to talk without pressing a button. This is convenient for situations where the called party is at work or in bed and cannot operate buttons.
■ Calls all indoor units at once. You can talk to the indoor unit that first pressed the "Call/End" button. This set operates the same as a normal call.
■ The Call/End button calls all registered indoor units, allowing one-way calls (talking). Two-way calls are not possible. Pressing the "Call/End" button on the receiving unit will end the call only on that indoor unit. This set also ends the call on the calling unit side.
■ If you set the indoor unit (child) as an emergency call button, all set indoor units (child) can make an emergency call (sound an alarm) simultaneously. You can talk to the indoor unit that first pressed the Call/End button. This is convenient for emergency calls from elderly people or those in bed.
■ The indoor unit (child) has a key lock setting to prevent accidental operation during transportation.
■ The wall-mounted stand allows for both wall and tabletop installation. The indoor unit (child) is waterproof (IPX4) and can be operated with wet hands.
■ The indoor unit (main) is powered by the included AC adapter, while the indoor unit (sub) uses the included rechargeable battery pack, which is placed in the battery case and charged with the AC adapter. The AC adapter alone is not supported.
■ The indoor unit (sub) can also be used with a mobile phone. When fully charged, it provides up to 5 hours of continuous talk time and approximately 100 hours of standby time. The power lamp flashes red when the battery is low.
■ Two optional additional entrance handset units (DWA20D) can be added. Both the indoor unit (main) and the indoor unit (sub) can handle calls from two locations. Identification lamps for Entrance 1 and Entrance 2 on either side of the incoming call lamp allow you to easily identify the call source.
■ Calls and conversations between the entrance handset and the indoor unit (sub) are relayed by the indoor unit (main). The indoor unit (main) can be set to silent mode when used solely as a relay.
■ Two optional additional indoor units (sub) (DWA20R) can be added. Calls and conversations are possible between the indoor unit (main unit) and the indoor unit (slave unit). If an additional entrance unit is installed, calls from the entrance unit will also be received by the indoor unit (main unit) and all indoor units (slave unit). Call rejection settings are also available. Includes: 2 wall-mounted stands, 2 dedicated AC adapters, 2 indoor unit button label sheets, 4 wall mounting screws (M4 x 16mm), 1 instruction manual (with warranty, 1-year warranty), 1 dedicated rechargeable battery pack (for the indoor unit (slave unit) only) ELECOM General Information Center TEL: 0570-084-465 FAX: 0570-050-012 Business Hours: 10:00 AM - 7:00 PM, Open 7 Days a Week Brand Name: DX Antenna Indoor Unit (Main): 1 x AC adapter (1.8m cord length), 1 x wall mount stand, 2 x wall mounting screws, 1 x indoor unit button label sheet; Indoor Unit (Sub): 1 x AC adapter (1.8m cord length), 1 x wall mount stand, 2 x wall mounting screws, 1 x indoor unit button label sheet, 1 x rechargeable battery pack. This wireless intercom includes an indoor unit (main) and an indoor unit (sub). No wiring is required, so it's ready to use right away. The indoor unit (sub) uses a built-in nickel-metal hydride rechargeable battery, making it easily portable. It communicates using DECT technology, conforming to the ARIB STD-T101 standard. Simple operation makes it easy to use, even for seniors. The large, easily visible incoming call indicator and the indoor unit 1 button indicator flash, making it easy to tell when a call is coming from the indoor unit. Even seniors who have difficulty hearing the ringtone can hear the incoming call. The call sound is clear, high-quality, and easy to hear. The ringtone volume can be adjusted in six levels, the call volume can be adjusted in four levels, and three ringtones (for calls from the indoor unit) can be selected. A missed call display can be set to notify you if no one is near the indoor unit (parent unit) when a call from the indoor unit (child unit) is received. The call distance is up to 100 meters (line of sight). 4975584703035 DX Antenna Wireless Intercom Doorphone Indoor Parent Unit & Indoor Handset Set No Wiring Required DWA20BR (text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
143x64x180 mm
Package
Weight (Approx.):
Weight (Approx.):
480 g
