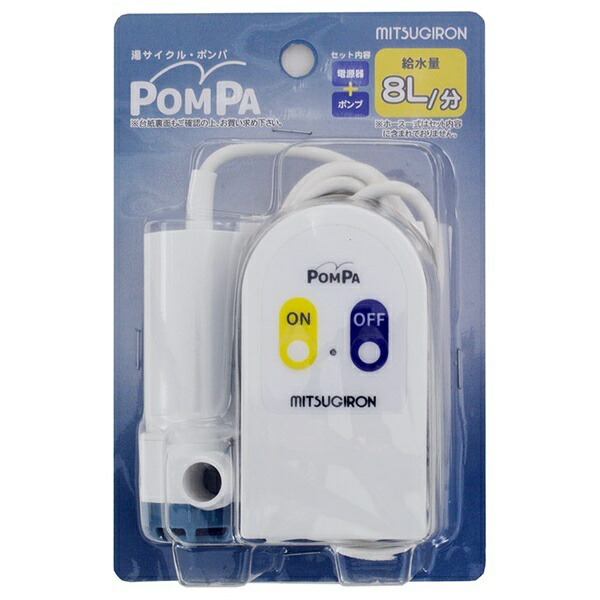

Hot Water Cycle Pump Bath Pump Hose Set with Storage Box
JAN
4978684016234
ASIN
B08NDHW7YT
Maker
Model No.
BP-64
Color
Size
Description
Mitsugiron-POMPA-Bath Pump-Storage Box Included-BP-64
《Installation Method》
▪️ Firmly insert the hose into the pump's outlet port.
※ Please read the usage instructions carefully regarding how to attach the pump and hose.
▪️ Keep the height from the bathtub water surface to the highest point of the hose (lift height) within 1.5m.
▪️ Do not use the pump if the hose is stretched taut. 《Usage Instructions》 1. Place the pump body in the bathtub, remove air from inside the pump, then set the hose underwater. ※ Tilt the pump body sideways to remove air. If air remains trapped in the pump body, it may fail to draw water.
2. Ensure the switch is in the “OFF” position, then insert the pump plug straight into the DC connector of the power supply unit.
3. Insert the power supply unit plug straight into a 100V outlet.
4. Turn the power supply unit switch to “ON” to start water supply. The power indicator light (green) will illuminate.
5. Fill the washing machine to its designated water level. After filling, turn the power supply unit switch to “OFF” to stop the pump. The power indicator light will turn off. 6. After use, straighten the power supply unit plug and unplug it from the outlet. 7. Straighten the pump plug and unplug it from the power supply unit's DC connector. 8. Lift the pump unit out of the bathtub and thoroughly drain the water. 9. Remove the hose and store it. ※ Ensure no water remains inside the hose at this time. 《Specifications》
POMPA (POMPA)
100V 50/60Hz 30VA
DC11V 1.3A
Power Supply: 52×45×93mm (including power supply plug) Pump: 57×37×92mm
Power Supply: PC, PVC Pump: PP Pump Cord: PVC Hose: PVC, PP Hose Holder: PP Hose Mounting Plate: ABS Storage Box: PP
Ambient Temperature: 5~35℃ Water Temperature: 5~45℃
Cord Length: Pump Cord 3m
Maximum Flow Rate (0m) 10L/min At 1m Head 8L/min At 1.5m Head 6L/min
Within 1.5m
Inner Diameter 15mm × Maximum Length 5m
Brand Name: Mitsugiron
Hose Holder, Storage Box
Material: PP, PC, PVC, ABS
Set Contents: Power Supply Unit (52×45×93mm), Pump (57×37×92mm/Cord Length 3m), 3m Antibacterial Hose (ID 15mm), Hose Holder, Storage Box (125×260×165mm)
Input: 100V 50/60Hz 30VA / Output: DC11V 1.3A
Water Temperature Range: 5~45℃
Water Flow Rate: 8L/min
Lift Range: Within 1.5m
Compatible Hose: Inner Diameter 15mm × Maximum Length 5m
Country of Origin: China
4978684016234
Yucycle Pump Bath Pump Hose Set with Storage Box
(text created at , 2025-05-10)
《Installation Method》
▪️ Firmly insert the hose into the pump's outlet port.
※ Please read the usage instructions carefully regarding how to attach the pump and hose.
▪️ Keep the height from the bathtub water surface to the highest point of the hose (lift height) within 1.5m.
▪️ Do not use the pump if the hose is stretched taut. 《Usage Instructions》 1. Place the pump body in the bathtub, remove air from inside the pump, then set the hose underwater. ※ Tilt the pump body sideways to remove air. If air remains trapped in the pump body, it may fail to draw water.
2. Ensure the switch is in the “OFF” position, then insert the pump plug straight into the DC connector of the power supply unit.
3. Insert the power supply unit plug straight into a 100V outlet.
4. Turn the power supply unit switch to “ON” to start water supply. The power indicator light (green) will illuminate.
5. Fill the washing machine to its designated water level. After filling, turn the power supply unit switch to “OFF” to stop the pump. The power indicator light will turn off. 6. After use, straighten the power supply unit plug and unplug it from the outlet. 7. Straighten the pump plug and unplug it from the power supply unit's DC connector. 8. Lift the pump unit out of the bathtub and thoroughly drain the water. 9. Remove the hose and store it. ※ Ensure no water remains inside the hose at this time. 《Specifications》
POMPA (POMPA)
100V 50/60Hz 30VA
DC11V 1.3A
Power Supply: 52×45×93mm (including power supply plug) Pump: 57×37×92mm
Power Supply: PC, PVC Pump: PP Pump Cord: PVC Hose: PVC, PP Hose Holder: PP Hose Mounting Plate: ABS Storage Box: PP
Ambient Temperature: 5~35℃ Water Temperature: 5~45℃
Cord Length: Pump Cord 3m
Maximum Flow Rate (0m) 10L/min At 1m Head 8L/min At 1.5m Head 6L/min
Within 1.5m
Inner Diameter 15mm × Maximum Length 5m
Brand Name: Mitsugiron
Hose Holder, Storage Box
Material: PP, PC, PVC, ABS
Set Contents: Power Supply Unit (52×45×93mm), Pump (57×37×92mm/Cord Length 3m), 3m Antibacterial Hose (ID 15mm), Hose Holder, Storage Box (125×260×165mm)
Input: 100V 50/60Hz 30VA / Output: DC11V 1.3A
Water Temperature Range: 5~45℃
Water Flow Rate: 8L/min
Lift Range: Within 1.5m
Compatible Hose: Inner Diameter 15mm × Maximum Length 5m
Country of Origin: China
4978684016234
Yucycle Pump Bath Pump Hose Set with Storage Box
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
158x120x254 mm
Package
Weight (Approx.):
Weight (Approx.):
720 g
3,730 JPY (Including Tax)
