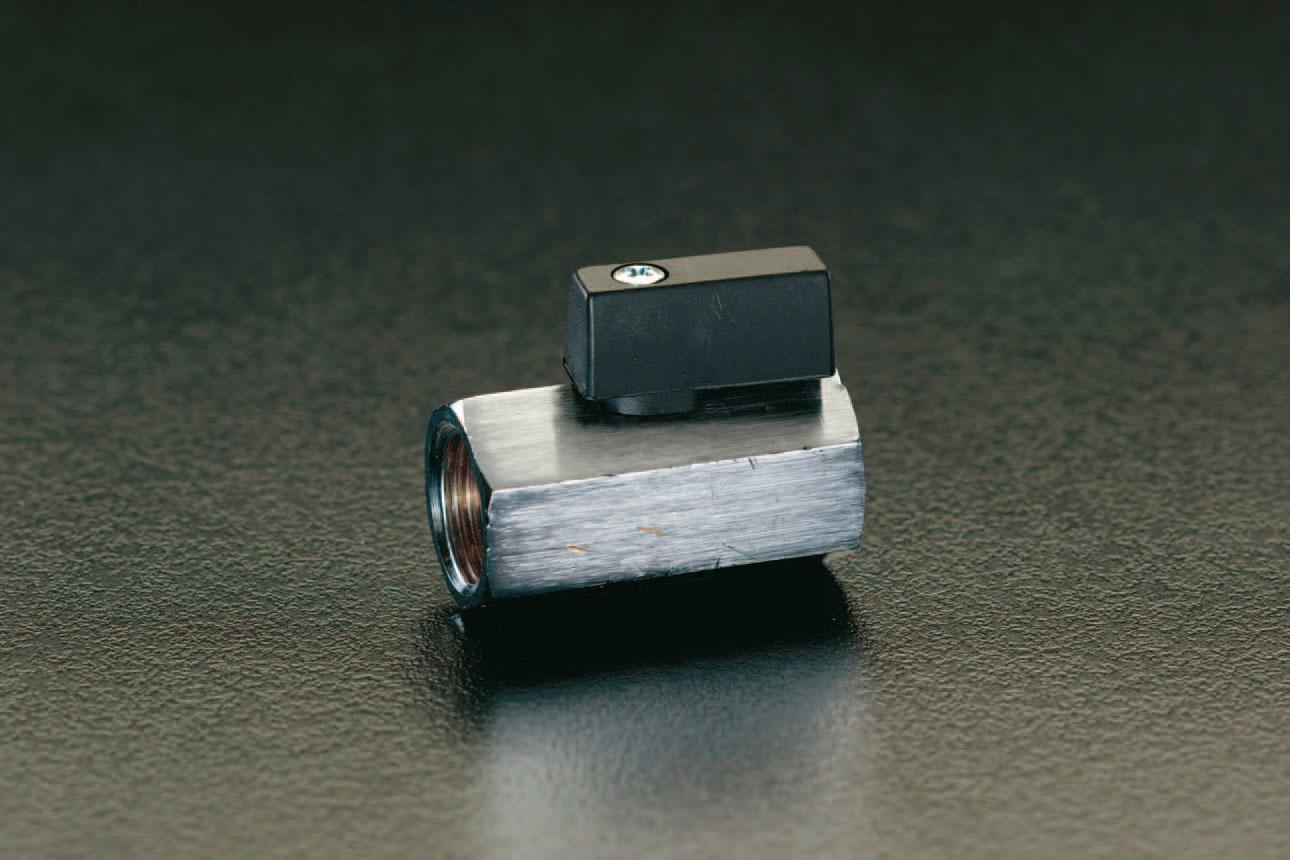

G 1/4 x G 1/4 Mini Ball Valve
JAN
4518340022355
ASIN
B002P3TH6S
Maker
Model No.
EA470M-2
Color
Size
l: 36mm h: 38mm
Description
ESCO Mini Ball Valve
Full-Bore Type
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Operating Temperature: -10/90°C
Pressure: 0.98MPa (10kg/cm²) or less
Thread Size (Female × Female): G(PF) 1/4"
Suitable Fluids: Air, Water
Brand Name: Esco
Full Bore Type
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Operating Temperature: -10/90°C
Pressure: 0.98MPa (10kg/cm²) or less
Thread Size (Female x Female): G(PF) 1/4"
4518340022355
G 1/4 x G 1/4 Mini Ball Valve
(text created at , 2025-05-13)
Full-Bore Type
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Operating Temperature: -10/90°C
Pressure: 0.98MPa (10kg/cm²) or less
Thread Size (Female × Female): G(PF) 1/4"
Suitable Fluids: Air, Water
Brand Name: Esco
Full Bore Type
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Operating Temperature: -10/90°C
Pressure: 0.98MPa (10kg/cm²) or less
Thread Size (Female x Female): G(PF) 1/4"
4518340022355
G 1/4 x G 1/4 Mini Ball Valve
(text created at , 2025-05-13)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,596 JPY (Including Tax)
Stock :
78
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
