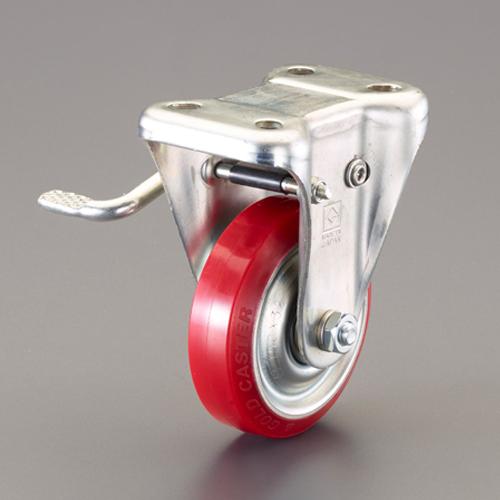

Tosho Vehicle 150mm Caster with Mounting Bracket and Left Brake EA986PN-69

4518340095465

B0D179JB6B

EA986PN-69

Tosei Vehicle - 150mm Caster - Fixed Bracket with Left Brake - EA986PN-69

▪️ Manufacturer: Tosei Vehicle (TOSEI)
▪️ Model Number: WK-150UB-SL
▪️Specifications: Fixed stopper included (left)
▪️Wheel Diameter × Width (mm): 150 × 38
▪️Overall Height (mm): 198
▪️Load Capacity (kg): 300
▪️Hole Diameter (d): 11mm
▪️P1 × P2: 100 × 56mm
▪️F1 × F2: 138 × 93mm
▪️Temperature Resistance: -15~70℃
▪️Material: Hardware/Steel, Wheel/Urethane
▪️Weight (g): 2240
▪️Operating Temperature Range: -5℃~60℃
▪️Precautions: Install so load is applied vertically to the caster. Use for intermittent manual transport on carts, etc.
Features
Bearing-equipped
Features urethane wheels with excellent oil resistance and wear resistance, minimizing floor contamination.
Equipped with a single stopper to lock wheel rotation. When used with the right-side stopper pedal specification (EA986PN-64), the stopper pedal extends to the outside of the cart for easier operation. For safety, we recommend using at approximately 80% of the maximum load capacity. Specifications
Manufacturer: TOSEI Vehicle Systems
Model: WK-150UB-SL
Specification: Fixed stopper included (left)
Wheel diameter × width (mm): 150 × 38
Overall height (mm): 198
Load capacity (kg): 300
Hole diameter (d): 11mm\ nP1×P2: 100×56mm
F1×F2: 138×93mm
Temperature Resistance: -15~70℃
Material: Hardware/Steel, Wheel/Urethane
Weight (g): 2240
Operating Temperature Range: -5℃~60℃
Precautions: Install so load is applied vertically to the caster. Use for intermittent manual transport on carts, etc.
※For business use only※
Brand Name: Tosei Sharyo
Manufacturer: Tosei Sharyo (TOSEI)
Model Number: WK-150UB-SL
Specifications: Fixed stopper included (left)
Wheel Diameter × Width (mm): 150 × 38
Overall Height (mm): 198
4518340095465
Tosei Sharyo 150mm Caster with Fixed Bracket & Left Brake EA986PN-69
