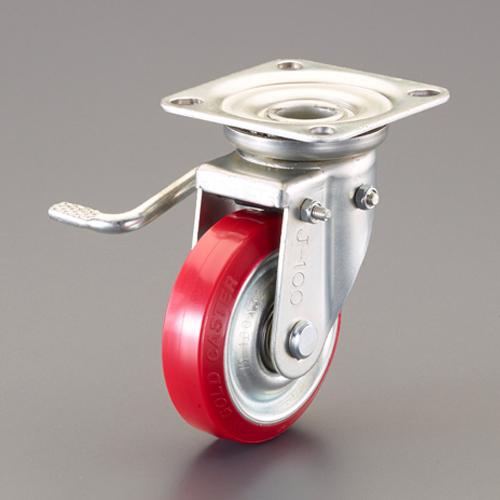

100mm caster (swivel fitting with left brake)

4518340099708

B0D1773H7V

EA986PN-87

Tosei Vehicle - Caster

▪️Manufacturer: Tosei Vehicle (TOSEI)
▪️Model Number: WJ-100UB-WSL
▪️Specifications: Swivel with brake (left)
▪️Wheel Diameter × Width (mm): 100 × 32
▪️Overall Height (mm): 144
▪️Load Capacity (kg): 180
▪️Hole Diameter (d): 10.5mm
▪️P1×P2: 71×71mm
▪️F1×F2: 95×95mm
▪️Temperature Resistance: -15~70℃
▪️Material: Hardware/Steel, Wheel/Urethane
▪️Weight (g): 1320
▪️Operating Temperature Range: -5°C to 60°C
▪️Precautions: Install so load is applied vertically to the caster. Use for intermittent manual transport on carts, etc.
Features
Bearing-equipped
Features oil-resistant, wear-resistant urethane wheels that minimize floor contamination.
Equipped with a double stopper that locks both wheel rotation and swivel movement. When used with the right-side stopper pedal specification (EA986PN-82), the stopper pedal extends to the outside of the cart for easier operation.
Double stopper (simultaneously locks wheel rotation and swivel movement)
For safety, we recommend using at approximately 80% of the maximum load capacity. Specifications
Manufacturer: TOSEI Vehicle Systems
Model: WJ-100UB-WSL
Specification: Swivel with stopper (left)
Wheel diameter × width (mm): 100 × 32
Overall height (mm): 144
Load capacity (kg): 180
Hole diameter (d): 10.5mm\ nP1×P2: 71×71mm
F1×F2: 95×95mm
Temperature Resistance: -15~70℃
Material: Hardware/Steel, Wheel/Urethane
Weight (g): 1320
Operating Temperature Range: -5℃~60℃
Precautions: Install so load is applied vertically to the caster. Use for intermittent manual transport on carts, etc.
※For business use only※
Brand Name: Tosei Sharyo
Manufacturer: Tosei Sharyo (TOSEI)
Model Number: WJ-100UB-WSL
Specifications: Swivel with brake (left)
Wheel Diameter × Width (mm): 100 × 32
Overall Height (mm): 144
4518340099708
100mm Caster (Swivel Fitting with Left Brake)
