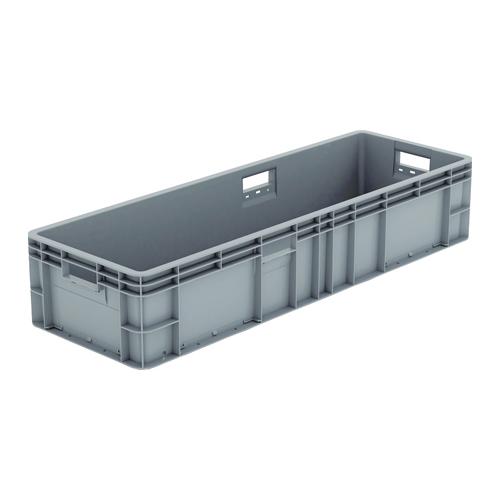

1005x335x195mm / 51.4L Container (Gray)
JAN
4518340158467
ASIN
B0D1BPCR4S
Maker
Model No.
EA506AF-307
Color
Size
Description
Sanko-1005x335x195mm-51.4L-Container-EA506AF-307
▪️Manufacturer: Sanko
▪️Model Number: 205604
▪️Product Name: TP392B
▪️Capacity: 51.4L
▪️External Dimensions (mm): 1005×335×195 (H)
▪️Color: Gray
▪️Internal Dimensions (mm): 970×300×180 (H)
▪️Effective Internal Dimensions: 961×291×170mm
▪️Compression Load: 38.7kN (3950kgf)▪️Material: Polypropylene▪️Weight (g): 2790▪️Base Shape: TP Grid Rib Sunbox (Solid-bottom Container) TP Standard (A container standard developed jointly with major automakers to maximize logistics efficiency) This is the base shape adopted for the container. The convex bottom shape, designed based on the TP standard, enables interlocking with all TP standard container types. This allows stable stacking in a lattice pattern and secure interlocking even with containers of different sizes. The SF (Grid) type features a grid rib structure (plates erected perpendicular to the surface to reinforce the flat area) within the convex bottom shape, providing high strength. Meanwhile, the inner bottom surface of the container is flat.
▪️ Number of Bottom Blocks: 12
Brand Name: Sanko (Sanko)
Manufacturer: Sanko (Sanko)
Model Number: 205604
Product Name: TP392B
Manufacturer Part Number: EA506AF-307
Manufacturer Name: Sanko (三甲)
4518340158467
1005x335x195mm / 51.4L Container (Gray)
(text created at , 2025-05-10)
▪️Manufacturer: Sanko
▪️Model Number: 205604
▪️Product Name: TP392B
▪️Capacity: 51.4L
▪️External Dimensions (mm): 1005×335×195 (H)
▪️Color: Gray
▪️Internal Dimensions (mm): 970×300×180 (H)
▪️Effective Internal Dimensions: 961×291×170mm
▪️Compression Load: 38.7kN (3950kgf)▪️Material: Polypropylene▪️Weight (g): 2790▪️Base Shape: TP Grid Rib Sunbox (Solid-bottom Container) TP Standard (A container standard developed jointly with major automakers to maximize logistics efficiency) This is the base shape adopted for the container. The convex bottom shape, designed based on the TP standard, enables interlocking with all TP standard container types. This allows stable stacking in a lattice pattern and secure interlocking even with containers of different sizes. The SF (Grid) type features a grid rib structure (plates erected perpendicular to the surface to reinforce the flat area) within the convex bottom shape, providing high strength. Meanwhile, the inner bottom surface of the container is flat.
▪️ Number of Bottom Blocks: 12
Brand Name: Sanko (Sanko)
Manufacturer: Sanko (Sanko)
Model Number: 205604
Product Name: TP392B
Manufacturer Part Number: EA506AF-307
Manufacturer Name: Sanko (三甲)
4518340158467
1005x335x195mm / 51.4L Container (Gray)
(text created at , 2025-05-10)
