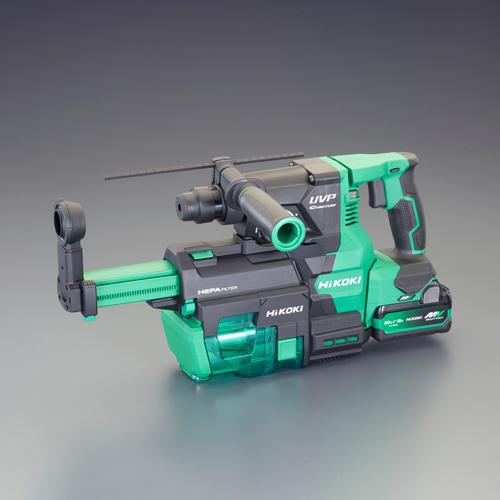

DC 36.0V/20mm Hammer Drill (Dust Collection/Rechargeable) 500 × 105 × 247 (H) mm
JAN
4518340194656
ASIN
B0D179YPLZ
Maker
Model No.
EA810DN-15
Color
Size
500 × 105 × 247 (H) mm
Description
HiKOKI-DC36-0V-20mm-Hammer Drill-EA810DN-15
▪️Manufacturer: HiKOKI\
▪️Model: DH3628DB (2XPZ)\
▪️Specifications: Resin Case Set\
▪️Drilling Capacity: Concrete/4.3~20mm Concrete/3.4~28mm Metal/13mm Wood/32mm Core Bit/25~50mm Diamond Core Bit/65mm\
▪️Battery: 36V (Lithium-ion 2.5Ah)/18V (Lithium-ion 5.0Ah)\
▪️Charger: AC100V\
▪️Charging time: Practical charge / Approx. 19 min Full charge / Approx. 25 min\
▪️Rotation speed: NORMAL mode / 0~950 rpm LOW mode / 0~700 rpm\
▪️Impact rate: NORMAL mode / 0~4,300 impacts/min LOW mode / 0~3,170 impacts/min\
▪️Size: 500 × 105 × 247 (H) mm\
▪️Weight: With side handle attached / 5.0 kg Without side handle / 4.8 kg\
▪️Accessories: 2 batteries, charger, resin case, depth gauge, side handle, battery cover, dust collection system\
▪️Features: Brake, stepless speed change, forward/reverse operation, slip clutch, sealed grease structure, dust collection type attachable, light included\
▪️Work capacity per charge: Concrete drilling (depth 40mm) Bit diameter 12.5mm/approx. 75 holes Bit diameter 18mm/approx. 40 holes\
▪️Motor: DC brushless motor\
▪️Applicable bits: SDS Plus shank type\
▪️Vibration 3-axis composite value: Rotation + impact / 12.1m/s2\
Features\
Bits sold separately, dust collection type\
Lightweight, compact, low vibration\
UVP function Vibration-dampening handle and dynamic vibration absorber reduce vibration for a comfortable feel. \
LED Vertical Support Function Supports vertical drilling by indicating vertical alignment.\
Auto-Stop Function Equipped with the convenient “Auto-Stop Function” for continuous drilling. It remembers drilling time and automatically stops the motor after the stored time, supporting stable drilling.\
Reactive Force Control (RFC) When sudden load is applied to the tip, either the slip clutch activates or the built-in controller stops the motor, reducing tool kickback. \
Easy Attachment/Detachment Without Removing the Bit Allows attachment/detachment of the dust collection system while the bit remains attached.\
Simple Operation Panel Mode switching is easy with a single push.\
Brand Name: HiKOKI\
Drill, Battery Charger\
Manufacturer: HiKOKI\
Model Number: DH3628DB (2XPZ)\
Specifications: Resin case set
Drilling capacity: Concrete/4.3–20mm Concrete/3.4–28mm Metal/13mm Wood/32mm Core bit/25–50mm Diamond core bit/65mm
Battery: 36V (Lithium-ion 2.5Ah)
▪️Manufacturer: HiKOKI\
▪️Model: DH3628DB (2XPZ)\
▪️Specifications: Resin Case Set\
▪️Drilling Capacity: Concrete/4.3~20mm Concrete/3.4~28mm Metal/13mm Wood/32mm Core Bit/25~50mm Diamond Core Bit/65mm\
▪️Battery: 36V (Lithium-ion 2.5Ah)/18V (Lithium-ion 5.0Ah)\
▪️Charger: AC100V\
▪️Charging time: Practical charge / Approx. 19 min Full charge / Approx. 25 min\
▪️Rotation speed: NORMAL mode / 0~950 rpm LOW mode / 0~700 rpm\
▪️Impact rate: NORMAL mode / 0~4,300 impacts/min LOW mode / 0~3,170 impacts/min\
▪️Size: 500 × 105 × 247 (H) mm\
▪️Weight: With side handle attached / 5.0 kg Without side handle / 4.8 kg\
▪️Accessories: 2 batteries, charger, resin case, depth gauge, side handle, battery cover, dust collection system\
▪️Features: Brake, stepless speed change, forward/reverse operation, slip clutch, sealed grease structure, dust collection type attachable, light included\
▪️Work capacity per charge: Concrete drilling (depth 40mm) Bit diameter 12.5mm/approx. 75 holes Bit diameter 18mm/approx. 40 holes\
▪️Motor: DC brushless motor\
▪️Applicable bits: SDS Plus shank type\
▪️Vibration 3-axis composite value: Rotation + impact / 12.1m/s2\
Features\
Bits sold separately, dust collection type\
Lightweight, compact, low vibration\
UVP function Vibration-dampening handle and dynamic vibration absorber reduce vibration for a comfortable feel. \
LED Vertical Support Function Supports vertical drilling by indicating vertical alignment.\
Auto-Stop Function Equipped with the convenient “Auto-Stop Function” for continuous drilling. It remembers drilling time and automatically stops the motor after the stored time, supporting stable drilling.\
Reactive Force Control (RFC) When sudden load is applied to the tip, either the slip clutch activates or the built-in controller stops the motor, reducing tool kickback. \
Easy Attachment/Detachment Without Removing the Bit Allows attachment/detachment of the dust collection system while the bit remains attached.\
Simple Operation Panel Mode switching is easy with a single push.\
Brand Name: HiKOKI\
Drill, Battery Charger\
Manufacturer: HiKOKI\
Model Number: DH3628DB (2XPZ)\
Specifications: Resin case set
Drilling capacity: Concrete/4.3–20mm Concrete/3.4–28mm Metal/13mm Wood/32mm Core bit/25–50mm Diamond core bit/65mm
Battery: 36V (Lithium-ion 2.5Ah)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
151,848 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
