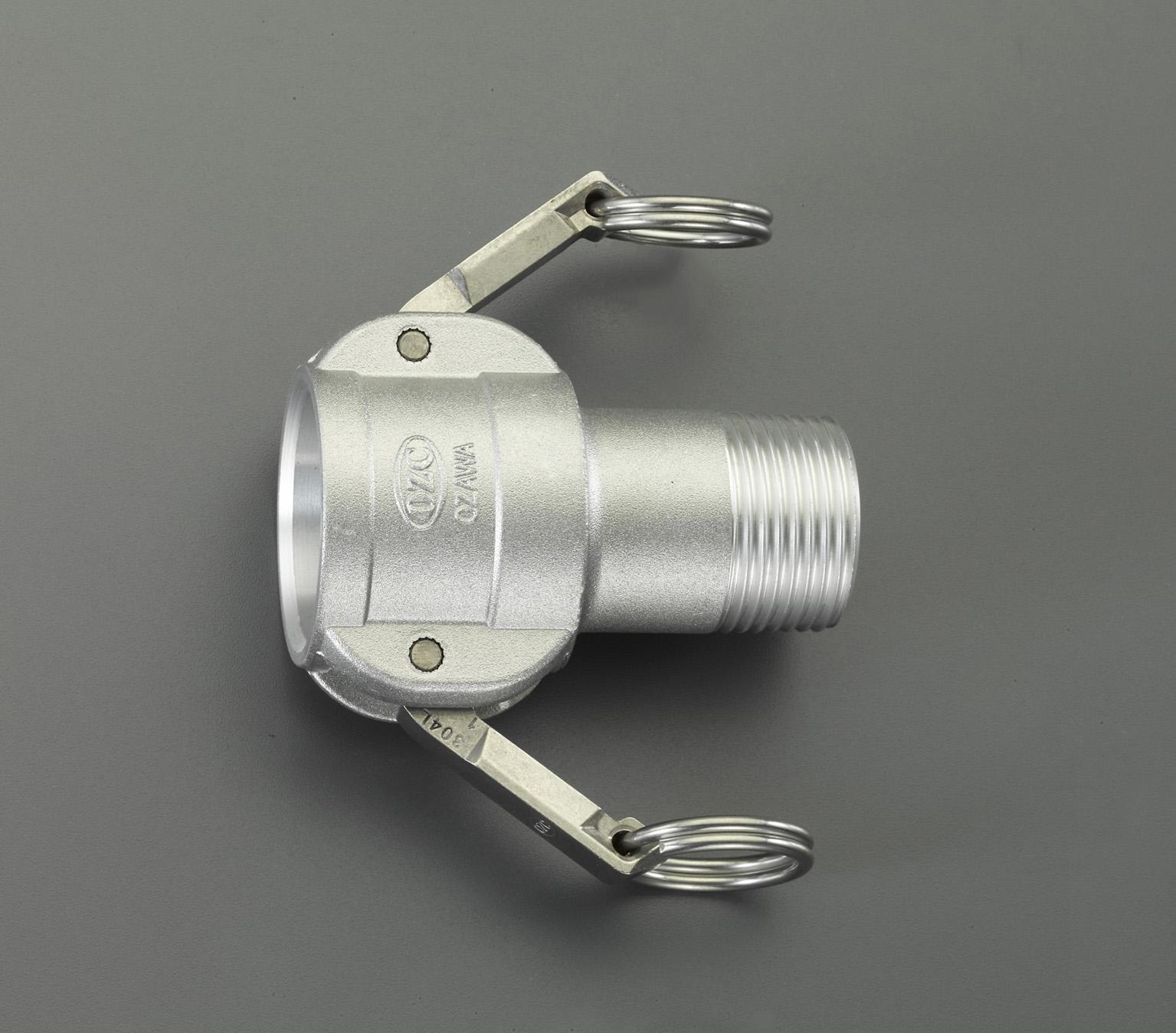

2-1/2" Male Thread Coupling (Aluminum)
JAN
4518340285576
ASIN
B07B92N3FM
Maker
Model No.
EA462BE-24A
Color
Size
A: 214, B: 109, φC: 77 φF: 60, h: 58, H: 116
Description
ESCO Male Thread Coupling - Aluminum - EA462BE-24A
Material: Cast Aluminum (AC4C-T6)
Working Pressure: 1.08MPa
Working Temperature: -30~70℃ Nominal Diameter: 65
Thread Size: R2・1/2" Dimensions: A: 214, B: 109, φC: 77, φF: 60, h: 58, H: 116 (Refer to the ESCO dimension drawing)
This type is attached to the female threaded end of pipe fittings or hose fittings for use. It can be easily connected and disconnected by operating the lever on the coupler.
Can transport all types of fluids, including liquids, gases, and powdered/granular materials. This coupling is suitable for various industries such as petroleum, chemical, steel, pharmaceutical, food, and marine transportation.
Brand Name: Esco
Material: Cast Aluminum (AC4C-T6) Operating Pressure: 1.08MPa
Operating Temperature: -30~70℃ Nominal Diameter: 65
Thread Size: R2･1/2" Size: A:214, B:109, φC:77φF:60, h:58, H:116 (Please refer to the Esco dimension drawing)
This type is installed onto the female threaded end of pipe fittings or hose fittings. It can be easily connected and disconnected by operating the lever attached to the coupler.
Can transport all types of fluids, including liquids, gases, and powdered/granular materials. This coupling is suitable for various industries such as petroleum, chemical, steel, pharmaceutical, food, and marine transportation.
4518340285576
2-1/2" Male Thread Coupling (Aluminum)
(text created at , 2025-08-11)
Material: Cast Aluminum (AC4C-T6)
Working Pressure: 1.08MPa
Working Temperature: -30~70℃ Nominal Diameter: 65
Thread Size: R2・1/2" Dimensions: A: 214, B: 109, φC: 77, φF: 60, h: 58, H: 116 (Refer to the ESCO dimension drawing)
This type is attached to the female threaded end of pipe fittings or hose fittings for use. It can be easily connected and disconnected by operating the lever on the coupler.
Can transport all types of fluids, including liquids, gases, and powdered/granular materials. This coupling is suitable for various industries such as petroleum, chemical, steel, pharmaceutical, food, and marine transportation.
Brand Name: Esco
Material: Cast Aluminum (AC4C-T6) Operating Pressure: 1.08MPa
Operating Temperature: -30~70℃ Nominal Diameter: 65
Thread Size: R2･1/2" Size: A:214, B:109, φC:77φF:60, h:58, H:116 (Please refer to the Esco dimension drawing)
This type is installed onto the female threaded end of pipe fittings or hose fittings. It can be easily connected and disconnected by operating the lever attached to the coupler.
Can transport all types of fluids, including liquids, gases, and powdered/granular materials. This coupling is suitable for various industries such as petroleum, chemical, steel, pharmaceutical, food, and marine transportation.
4518340285576
2-1/2" Male Thread Coupling (Aluminum)
(text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
108x94x116 mm
Package
Weight (Approx.):
Weight (Approx.):
708 g
10,614 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
