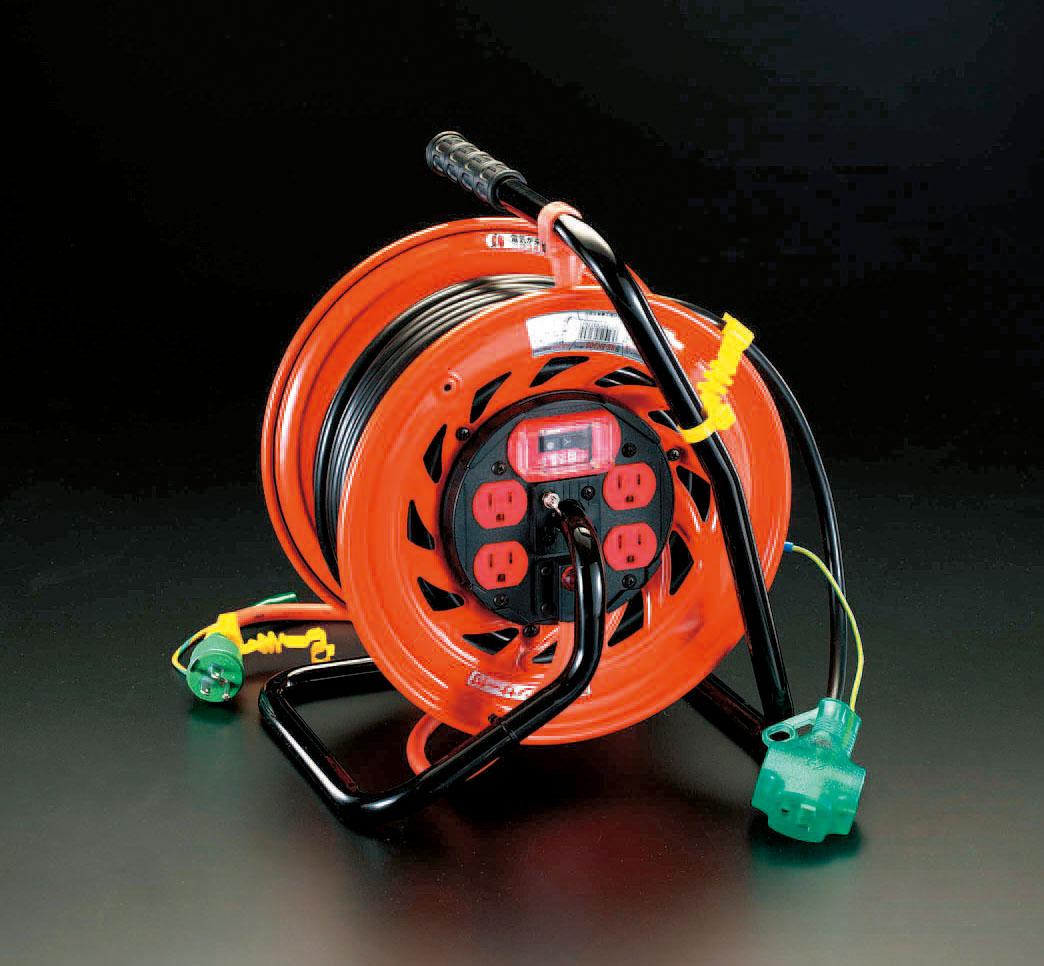

ESCO AC125V/30m Fixed Outlet Reel (Floor Mount, Overload Protection) EA815DA-14
JAN
4518340433229
ASIN
B002OGKRPG
Maker
Model No.
EA815DA-14
Color
Size
290 × 257 × 363 (H) mm
Description
ESCO-AC125V-30m Fixed Outlet Reel-Original Placement/Overload Shutdown-EA815DA-14
Number of Outlets: 3+4\
Outlet Rating: 2P・15A・125V with Grounding\
Allowable Current: 22A (※Cable Capacity Value)\
Cable Specification: VCT 2.0mm² × 3-core\ Leakage sensitivity current: 15mA\
Cord length: Primary side: 3m, Secondary side: 27m\
Size: 290×257×363(H)mm\
Weight: 8.4kg\
Equipped with overload/leakage circuit breaker\
The outlet panel does not rotate, making it extremely convenient when winding the cord. \
Equipped with temperature sensor (cuts power at 80°C, manual reset type). Can be used with cable wound on; automatically cuts power when cable temperature reaches 80°C. Manually reset after cooling. \
Overload circuit breaker current: 15A
Brand name: Esco
Number of outlets: 3+4
Outlet rating: 2P・15A・125V with grounding
Allowable current: 22A (※Cable capacity value)
Cable specification: VCT 2.0mm² × 3-core\ nEarth leakage sensitivity current: 15mA
Cord length: Primary side: 3m, Secondary side: 27m
Size: 290×257×363(H)mm
Weight: 8.4kg
With overload earth leakage circuit breaker
4518340433229\ nB002OGKRPG
ESCO AC125V/30m Fixed Outlet Reel (Floor-Mounted, Overload Protection) EA815DA-14
(text created at , 2025-11-12)
Number of Outlets: 3+4\
Outlet Rating: 2P・15A・125V with Grounding\
Allowable Current: 22A (※Cable Capacity Value)\
Cable Specification: VCT 2.0mm² × 3-core\ Leakage sensitivity current: 15mA\
Cord length: Primary side: 3m, Secondary side: 27m\
Size: 290×257×363(H)mm\
Weight: 8.4kg\
Equipped with overload/leakage circuit breaker\
The outlet panel does not rotate, making it extremely convenient when winding the cord. \
Equipped with temperature sensor (cuts power at 80°C, manual reset type). Can be used with cable wound on; automatically cuts power when cable temperature reaches 80°C. Manually reset after cooling. \
Overload circuit breaker current: 15A
Brand name: Esco
Number of outlets: 3+4
Outlet rating: 2P・15A・125V with grounding
Allowable current: 22A (※Cable capacity value)
Cable specification: VCT 2.0mm² × 3-core\ nEarth leakage sensitivity current: 15mA
Cord length: Primary side: 3m, Secondary side: 27m
Size: 290×257×363(H)mm
Weight: 8.4kg
With overload earth leakage circuit breaker
4518340433229\ nB002OGKRPG
ESCO AC125V/30m Fixed Outlet Reel (Floor-Mounted, Overload Protection) EA815DA-14
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
54,466 JPY (Including Tax)
