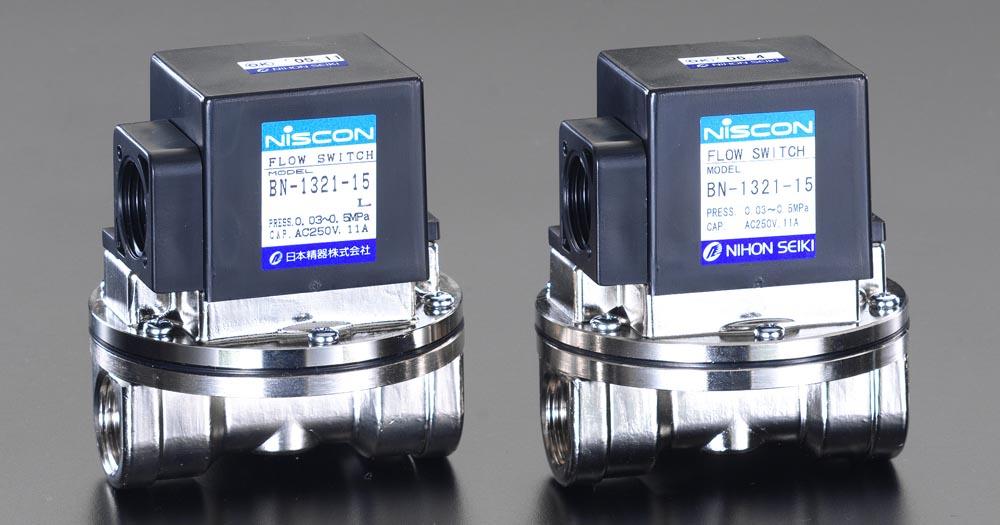

Rc 3/8 Flow Switch
JAN
4518340453791
ASIN
B002P3TF0Q
Maker
Model No.
EA153E-13
Color
Size
φ80 × 75 × 91 (H) mm
Description
ESCO-Rc3-8 Flow Switch-EA153E-13
Operating Pressure: 0.05/0.5MPa
Maximum Pressure: 1.0MPa
Fluid Temperature: 5/60℃
Ambient Temperature: 5/60℃
Contacts: 1NO 1NC
Dimensions: Diameter 80 × 91 × 91mm
Operating Fluid: Clean Water
Contact Rating: AC125V・250V: 15A, DC125V: 0.5A, DC250V: 0.25A
Detectable Flow Rate: 5/20 L/min
Brand Name: Esco
Operating Pressure: 0.05/0.5MPa
Withstand Pressure: 1.0MPa
Fluid Temperature: 5/60°C
Ambient Temperature: 5/60°C
Contacts: 1a1b Contacts
Size: Diameter 80 × 91 × 91 mm
Fluid Used: Clean Water
Contact Rating: AC125V・250V: 15A, DC125V: 0.5A, DC250V: 0.25A
Detectable Flow Rate: 5/20 L/min
4518340453791\ nB002P3TF0Q
Rc 3/8 Flow Switch
(text created at , 2025-11-12)
Operating Pressure: 0.05/0.5MPa
Maximum Pressure: 1.0MPa
Fluid Temperature: 5/60℃
Ambient Temperature: 5/60℃
Contacts: 1NO 1NC
Dimensions: Diameter 80 × 91 × 91mm
Operating Fluid: Clean Water
Contact Rating: AC125V・250V: 15A, DC125V: 0.5A, DC250V: 0.25A
Detectable Flow Rate: 5/20 L/min
Brand Name: Esco
Operating Pressure: 0.05/0.5MPa
Withstand Pressure: 1.0MPa
Fluid Temperature: 5/60°C
Ambient Temperature: 5/60°C
Contacts: 1a1b Contacts
Size: Diameter 80 × 91 × 91 mm
Fluid Used: Clean Water
Contact Rating: AC125V・250V: 15A, DC125V: 0.5A, DC250V: 0.25A
Detectable Flow Rate: 5/20 L/min
4518340453791\ nB002P3TF0Q
Rc 3/8 Flow Switch
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
1000 g
16,419 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
