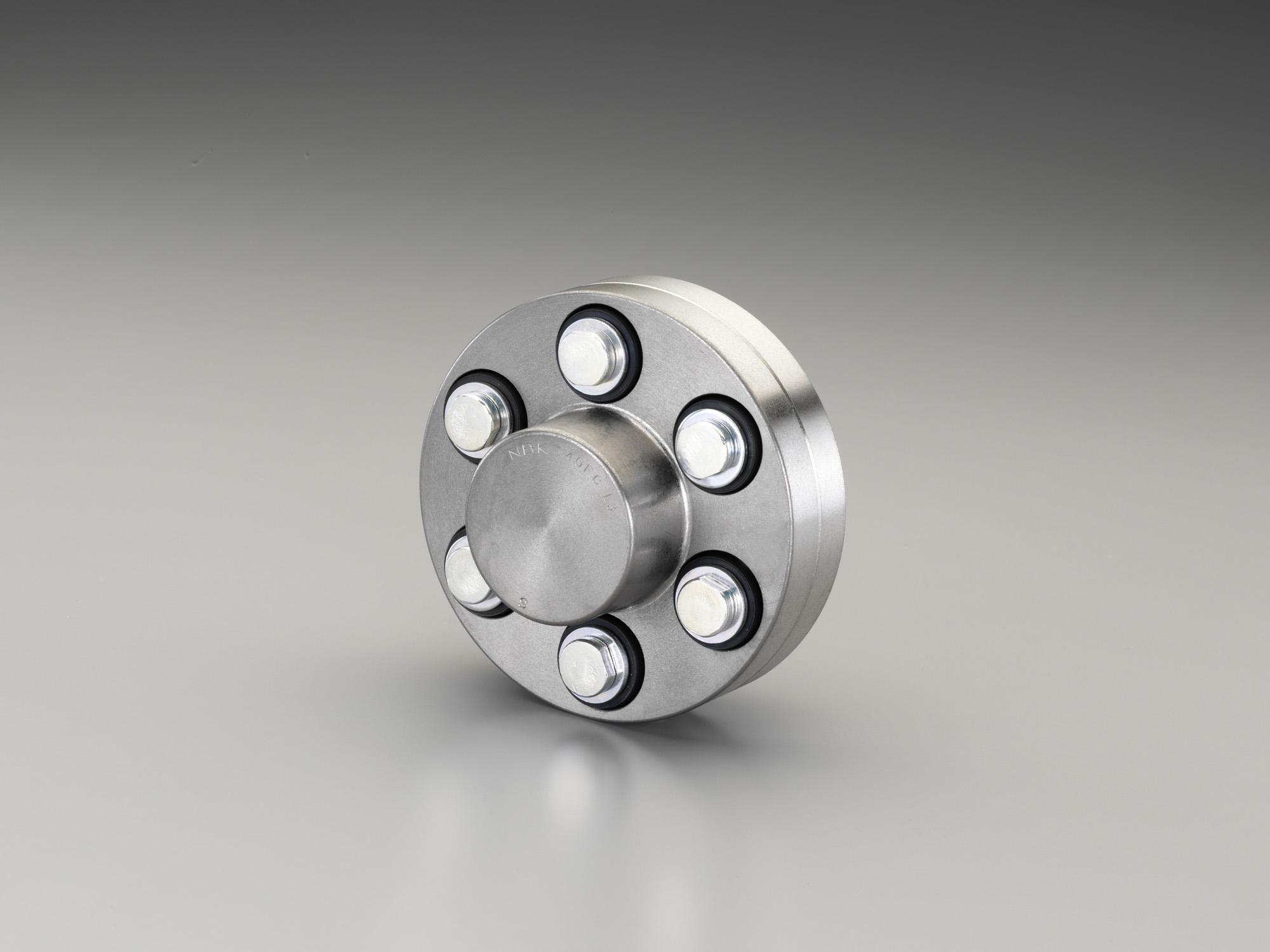

φ 90mm Flanged Flexible Shaft Coupling
JAN
4518340964044
ASIN
B00TGRSVZ4
Maker
Model No.
EA969GA-1
Color
Size
B: 60mm C1: 35.5mm C2: 35.5mm
Description
ESCO-Flange Type Flexible Shaft Coupling
Material: Cast Iron
Compliant with JIS B 1452-1991
Simply remove the coupling bolts to replace the bushings, enabling easy maintenance and servicing. Size (mm): Outer Diameter (A): 90, Bushing Hole Diameter (M): 19, Bolt Hole Diameter (a): 8, B: 60, C1: 35.5, C2: 35.5, D1: 20, D2: 20, F1: 14, F2: 14, L: 28 ※Please refer to the Esco dimension drawing.
Brand Name: Esco
Material: Cast Iron
Complies with JIS B 1452-1991
Simply remove the joint bolts to replace the bushings, making maintenance and servicing easy.
Size (mm): Outer Diameter (A): 90, Bushing Hole Diameter (M): 19, Bolt Hole Diameter (a): 8, B: 60, C1: 35.5, C2: 35.5, D1: 20, D2: 20, F1: 14, F2: 14, L: 28 ※Please refer to the Esco dimension drawing.
4518340964044
φ 90mm Flanged Flexible Shaft Coupling
(text created at , 2025-05-10)
Material: Cast Iron
Compliant with JIS B 1452-1991
Simply remove the coupling bolts to replace the bushings, enabling easy maintenance and servicing. Size (mm): Outer Diameter (A): 90, Bushing Hole Diameter (M): 19, Bolt Hole Diameter (a): 8, B: 60, C1: 35.5, C2: 35.5, D1: 20, D2: 20, F1: 14, F2: 14, L: 28 ※Please refer to the Esco dimension drawing.
Brand Name: Esco
Material: Cast Iron
Complies with JIS B 1452-1991
Simply remove the joint bolts to replace the bushings, making maintenance and servicing easy.
Size (mm): Outer Diameter (A): 90, Bushing Hole Diameter (M): 19, Bolt Hole Diameter (a): 8, B: 60, C1: 35.5, C2: 35.5, D1: 20, D2: 20, F1: 14, F2: 14, L: 28 ※Please refer to the Esco dimension drawing.
4518340964044
φ 90mm Flanged Flexible Shaft Coupling
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x200x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
8,463 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
