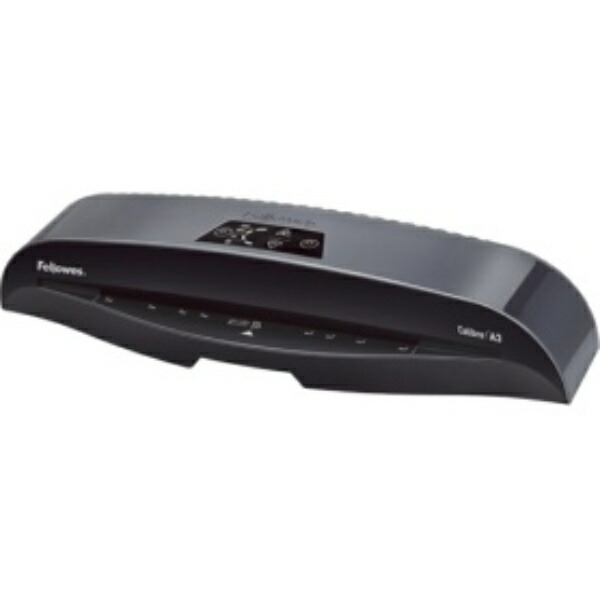

Fellowes Calibre Laminator A3 Size 2-Rollers 5740301 1 Unit

4521576574031

B01N25YOLB

212-5017

Fellowes Laminator Calibre 2-Roll Laminator 5740301
New Feature: PTS Plus alerts you to potential film jams. A premium dual-roller laminator packed with versatile features.\
\


■What is PTS Plus (Pouch Tracking System Plus)?\
Sensors at the feed and exit points trigger an audible warning and automatically reverse the rollers to push back the film if it doesn't pass through within a set time.\


■High-Speed Warm-Up & Processing\
Warm-up in as little as 60 seconds, processing speed up to 40 seconds*. Work efficiently without waiting.*75 micron film, A4 short-edge binding\


■Simple Settings\
Easy operation—just select the film thickness you're using.\


■Reverse Button\
If film jams, reverse the rollers to clear it.\


■Support Arm\
Includes a support tray that holds the film until lamination is complete, preventing warping.\


■Heat Guard\
Features a double-insulated structure with an air layer to reduce heat when touching the unit.\


■Carry Handle\
A convenient handle lets you laminate anytime, anywhere.\


■Hot Swap\
Automatically adjusts to the optimal laminating speed based on the selected film thickness. Quickly switch between different film thicknesses for seamless, continuous operation.\


■Auto Shut-off\
Energy-saving & safety design automatically enters sleep mode after 30 minutes of inactivity.\
・Number of Rollers: 2 Rollers\
・Laminating Method: Hot Laminating\
・Temperature Settings: 2 Levels\
・Heating Method: External heating method\
・Feed width: 325mm (A3 size compatible)\
・Maximum laminate thickness: 0.55mm\
・Applicable film thickness: 75~150 microns\
・Warm-up time: Approx. 60 seconds\
・Laminating speed: 480mm/min\
・Film jam prevention: Manual reverse button\
・Auto power-off function: Enters power-saving mode (sleep mode) after 30 minutes of inactivity\
・Warranty period: 1 year\
・External dimensions: W570 x D155 x H11 mm\
・Weight: 2.5 kg\
・Power consumption: 720 W\
Tips for using your laminator effectively\

▪️Tips for Beautiful Lamination\
1. First, test with paper of similar quality. If unsure about the temperature setting, laminate at a lower temperature. Only increase the temperature slightly if white haze appears or adhesion is incomplete.\
2. Position your document so it presses against the seal area (where the two film sheets are joined).\
3. Insert the document into the laminator starting from the seal side.\
4. Insert it straight and level until you feel it being drawn in by the rollers.

180x165x665 mm

3380 g
