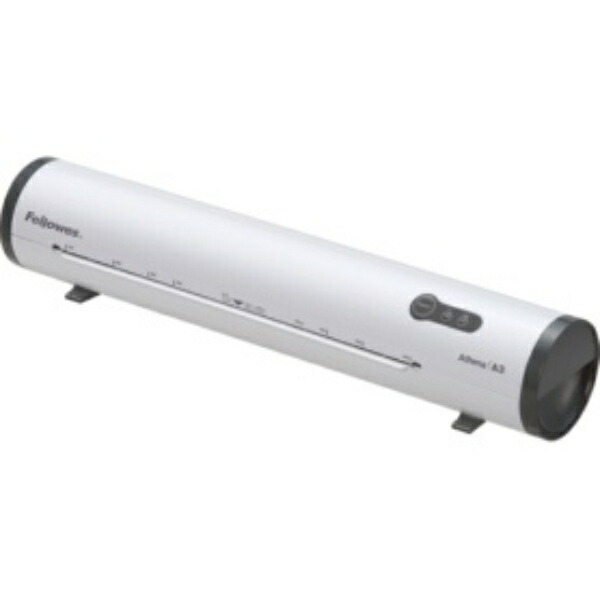

Fellowes Athena Laminator A3 Size 2-Rollers 5744201 1 Unit

4521576574420

B07BFN2ZBQ

218-6957

Fellowes Laminator Athena A3 5744201
A unique cylinder-shaped design with two rollers. Save space with vertical storage when not in use.\
Stands upright for compact storage. Fits neatly in cabinets or small spaces without taking up room, so it won't get in the way when not in use.\


■Fast Warm-Up & Processing\
Warm-up time: approx. 1 minute. Processing time: approx. 1 minute. A quick laminator that significantly reduces wait time.\


■Release Lever\
Easily removes film in case of jams.\


■2-Stage Temperature Settings\
For 75-micron and 100-micron film thicknesses.\


■Carry Handle\
Lightweight and compact. Features a convenient handle for easy portability.\


■Auto Heater Off\
Energy-saving & safety design: Automatically turns off after 30 minutes of inactivity while powered on. \
\
・Number of Rollers: 2 rollers\
・Laminating Method: Hot laminating\
・Temperature Settings: 2 stages\
・Heating Method: External heating method\
・Feed Width: 330mm (A3 size compatible)\
・Maximum Laminate Thickness: 0.55mm\
・Applicable Film Thickness: 75~100 microns\\ • Warm-up time: Approx. 60 seconds\
• Laminating speed: 300mm/min\
• Film jam prevention: Release lever\
• Rated operating time: 30 minutes\
• Warranty period: 6 months\
• External dimensions: W470 × D95 × H95mm\
• Weight: 2.0kg\
• Power consumption: 600W\
Tips for Using Your Laminator Effectively\
▪️ Secrets to Beautiful Laminating\
1. First, test with paper of similar quality. If unsure about the temperature setting, laminate at a lower temperature. Only increase the temperature slightly if white haze appears or adhesion is incomplete.\
2. Position your document so it presses against the seal area (where the two film sheets are joined).\
3. Insert the document into the laminator starting from the seal side.\
4. Insert it straight and level until you feel it being drawn in by the rollers.
▪️Daily Maintenance Method\
Each time you laminate a sheet, a small amount of adhesive from the film sticks to the internal rollers, causing them to become dirty. Dirty rollers can cause jams by catching the film.\
Additionally, dirt may adhere to the surface of the finished laminated film. To keep the rollers clean and ensure smooth operation, run the included cleaning sheet or an equivalent thickness of uncoated paper through the machine several times after each lamination session.\

▪️ Items that should not be laminated\
・Non-paper items such as metal, vinyl products, fabric, or wood chips.\
・Laminating film alone without any material sandwiched between it.\
・Items exceeding the “Maximum Laminating Thickness*” specified in the instruction manual. *Includes the thickness of the film.\
・Items that discolor or degrade with heat (e.g., Japanese paper, thermal paper, crayon drawings), items prone to softening (e.g., PVC, polyethylene products), and flammable materials (e.g., cellophane) cannot be hot laminated. Brand Name: Fellowes Warm-up Time: Approx. 60 seconds Maximum Processing Size: A3 Number of Rollers: 2 Compatible Film Thickness: 75~100 microns 4521576574420\ nB07BFN2ZBQ
Fellowes Athena Laminator A3 Size 2 Rollers 5744201 1 Unit
(c

125x125x495 mm

1960 g
