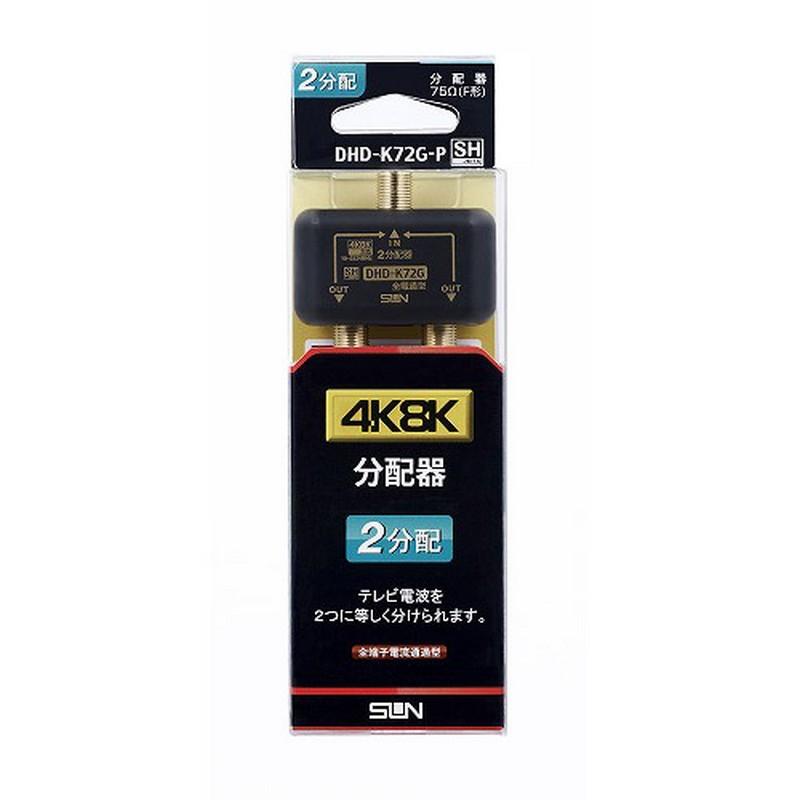

Sun Electronics 2-Way Splitter (All-Terminal Power-Through Type) DHD-K72G-P
JAN
4534022728025
ASIN
B075MX8JGN
Maker
Model No.
DHD-K72G-P
Color
Size
Description
Sandenshi DHD-K72G-P 4K/8K Compatible High-Shielding Type 2-Way Splitter
: This device is used to distribute TV signals to two locations. It supports 110° CS/BS, UHF, VHF, and FM (CATV) broadcasts, including the new 4K8K satellite broadcasts. Its shielded structure prevents interference from external signals (noise), and it features gold-plated F-type connectors for input/output ports. *All terminals allow current flow. (DC15V, 0.5A or less)
Brand Name: SUN
CE : Distribution Loss (dB or less): 10MHz to 76MHz 4.5, 76MHz to 300MHz 4.0, 300MHz to 770MHz 4.3, 770MHz to 1489MHz 5.0, 1489MHz to 2150MHz: 6.5, 2150MHz to 2681MHz: 7.5, 2681MHz to 3224MHz: 8.0
CE: Inter-terminal coupling loss (dB or more): 10MHz–76MHz 13, 76MHz–300MHz 20, 300MHz–770MHz 18, 770MHz–1489MHz 15, 1489MHz–2150MHz 15, 2150MHz to 2681MHz 15, 2681MHz to 3224MHz 15
CE: VSWR (below): 10MHz to 76MHz 2.5, 76MHz to 300MHz 1.8, 300MHz to 770MHz 1.8, 770MHz to 1489MHz 2, 1489MHz–2150MHz 2.0, 2150MHz–2681MHz 2.5, 2681MHz–3224MHz 2.5
4534022728025
Sun Electronics 2-Way Splitter (All-Terminal Conductive Type) DHD-K72G-P
(text created at , 2025-06-30)
: This device is used to distribute TV signals to two locations. It supports 110° CS/BS, UHF, VHF, and FM (CATV) broadcasts, including the new 4K8K satellite broadcasts. Its shielded structure prevents interference from external signals (noise), and it features gold-plated F-type connectors for input/output ports. *All terminals allow current flow. (DC15V, 0.5A or less)
Brand Name: SUN
CE : Distribution Loss (dB or less): 10MHz to 76MHz 4.5, 76MHz to 300MHz 4.0, 300MHz to 770MHz 4.3, 770MHz to 1489MHz 5.0, 1489MHz to 2150MHz: 6.5, 2150MHz to 2681MHz: 7.5, 2681MHz to 3224MHz: 8.0
CE: Inter-terminal coupling loss (dB or more): 10MHz–76MHz 13, 76MHz–300MHz 20, 300MHz–770MHz 18, 770MHz–1489MHz 15, 1489MHz–2150MHz 15, 2150MHz to 2681MHz 15, 2681MHz to 3224MHz 15
CE: VSWR (below): 10MHz to 76MHz 2.5, 76MHz to 300MHz 1.8, 300MHz to 770MHz 1.8, 770MHz to 1489MHz 2, 1489MHz–2150MHz 2.0, 2150MHz–2681MHz 2.5, 2681MHz–3224MHz 2.5
4534022728025
Sun Electronics 2-Way Splitter (All-Terminal Conductive Type) DHD-K72G-P
(text created at , 2025-06-30)
Package
Size (Approx.):
Size (Approx.):
55x27x167 mm
Package
Weight (Approx.):
Weight (Approx.):
60 g
4,187 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-16
Quantity :
Reference Price from Other Stores
