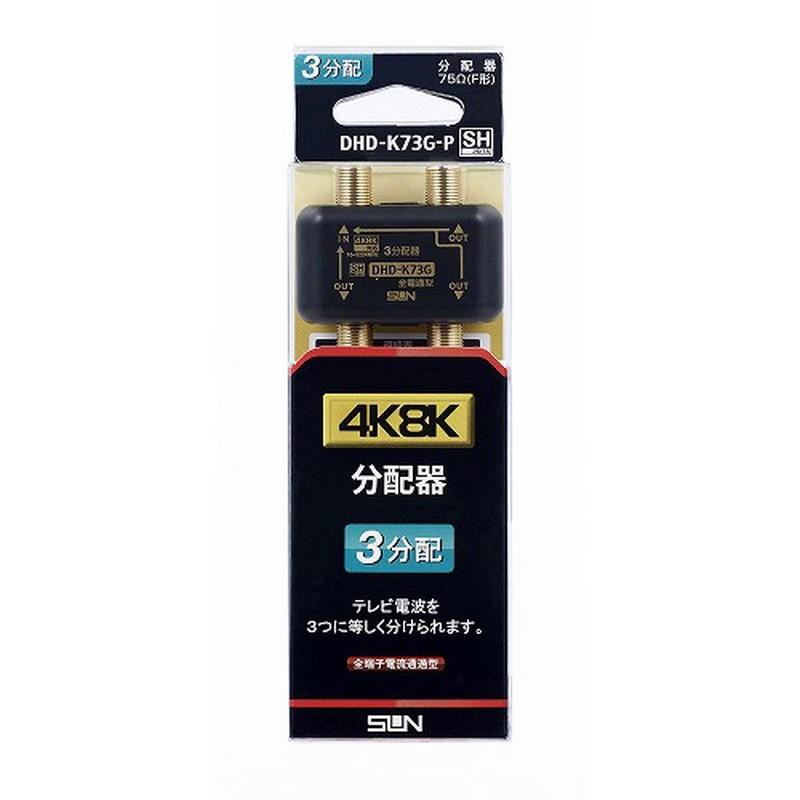

Sun Electronics 3-Way Splitter (All-Terminal Power-Through Type) DHD-K73G-P
JAN
4534022728148
ASIN
B075MX6XCW
Maker
Model No.
DHD-K73G-P
Color
Size
Description
Sandenshi DHD-K73G-P 4K8K Compatible High-Shielding Type 3-Way Splitter
: This device is used to distribute TV signals to three locations.
It supports 110° CS/BS, UHF, VHF, and FM (CATV) broadcasts, including the new 4K8K satellite broadcasts.
Features a shielded structure to prevent interference from external signals (noise), with gold-plated F-type connectors for input/output ports.
※All terminals support current flow. (DC15V, 0.5A or less)
Brand Name: SUN
CE: Distribution Loss (dB or less): 10MHz–76MHz 6.5, 76MHz–300MHz 6.0, 300MHz–770MHz 6.5, 770MHz–1489MHz 8.0, 1489MHz–2150MHz 9.5, 2150MHz–2681MHz 11.0, 2681MHz to 3224MHz 12.5
CE: Inter-Terminal Coupling Loss (dB or more): 10MHz to 76MHz 13, 76MHz to 300MHz 20, 300MHz to 770MHz 18, 770MHz to 1489MHz 15, 1489MHz to 2150MHz 15, 2150MHz to 2681MHz 15, 2681MHz to 3224MHz 15
CE: VSWR (below): 10MHz to 76MHz 2.5, 76MHz to 300MHz 1.8, 300MHz to 770MHz 1.8, 770MHz to 1489MHz 2, 1489MHz–2150MHz 2.0, 2150MHz–2681MHz 2.5, 2681MHz–3224MHz 2.5
4534022728148
Sun Electronics 3-Way Splitter (All-Terminal Conductive Type) DHD-K73G-P
(text created at , 2025-07-01)
: This device is used to distribute TV signals to three locations.
It supports 110° CS/BS, UHF, VHF, and FM (CATV) broadcasts, including the new 4K8K satellite broadcasts.
Features a shielded structure to prevent interference from external signals (noise), with gold-plated F-type connectors for input/output ports.
※All terminals support current flow. (DC15V, 0.5A or less)
Brand Name: SUN
CE: Distribution Loss (dB or less): 10MHz–76MHz 6.5, 76MHz–300MHz 6.0, 300MHz–770MHz 6.5, 770MHz–1489MHz 8.0, 1489MHz–2150MHz 9.5, 2150MHz–2681MHz 11.0, 2681MHz to 3224MHz 12.5
CE: Inter-Terminal Coupling Loss (dB or more): 10MHz to 76MHz 13, 76MHz to 300MHz 20, 300MHz to 770MHz 18, 770MHz to 1489MHz 15, 1489MHz to 2150MHz 15, 2150MHz to 2681MHz 15, 2681MHz to 3224MHz 15
CE: VSWR (below): 10MHz to 76MHz 2.5, 76MHz to 300MHz 1.8, 300MHz to 770MHz 1.8, 770MHz to 1489MHz 2, 1489MHz–2150MHz 2.0, 2150MHz–2681MHz 2.5, 2681MHz–3224MHz 2.5
4534022728148
Sun Electronics 3-Way Splitter (All-Terminal Conductive Type) DHD-K73G-P
(text created at , 2025-07-01)
Package
Size (Approx.):
Size (Approx.):
55x27x170 mm
Package
Weight (Approx.):
Weight (Approx.):
80 g
5,515 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-16
