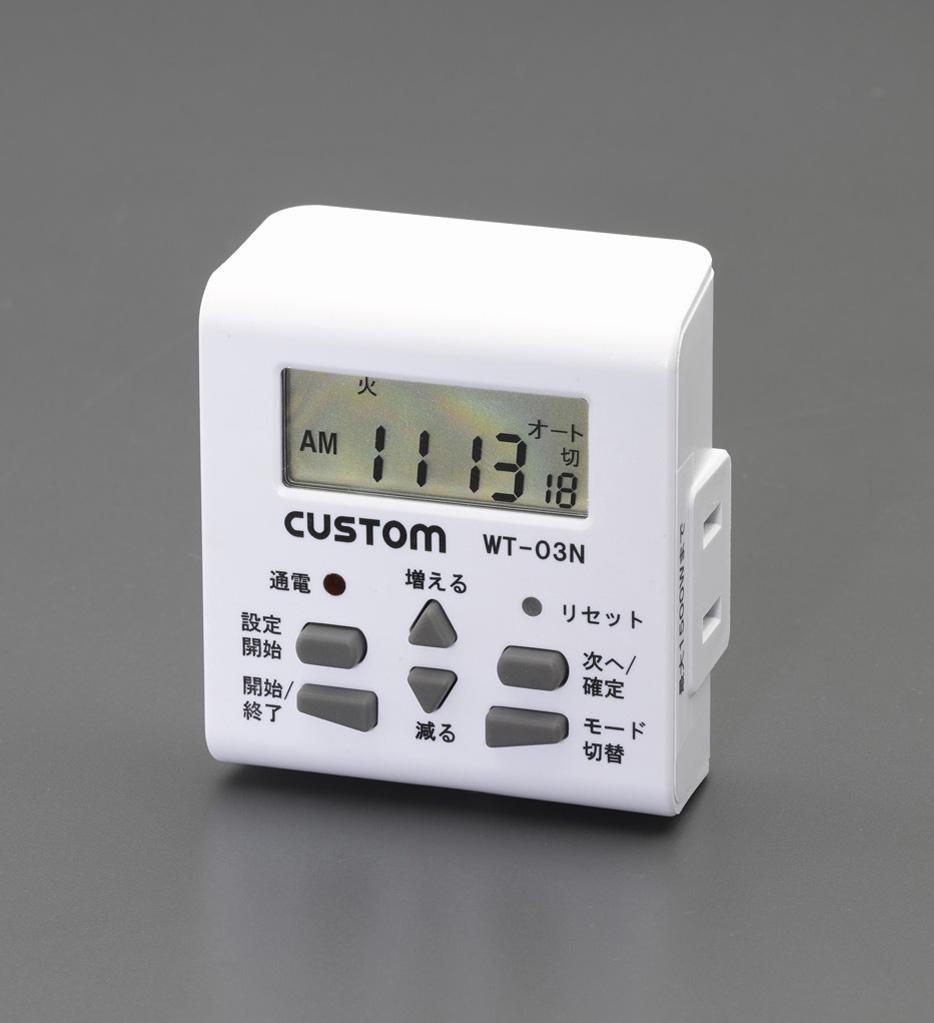

ESCO AC100V/15A Timer (Repeating) EA763A-16A
JAN
4548745108941
ASIN
B01BBDMXHW
Maker
Model No.
EA763A-16A
Color
Size
62 (W) × 28 (D) × 70 (H) mm
Description
ESCO-AC100V-15A-Timer-Repeat-EA763A-16A
▪️ Dimensions: 62(W) × 28(D) × 70(H) mm
▪️ Weight: Approx. 95g
▪️ Rated Voltage: AC100V, 50/60Hz
▪️ Capacity: 15A or less (1, 500W or less)
▪️Power Consumption…1W or less▪️Clock Accuracy…±5 seconds/day▪️Timer Settings…20 possible ON/OFF combinations▪️Operating Temp/Humidity…0~+50°C, 70%RH or less (no condensation)▪️Storage Temp/Humidity…0~+60°C, 80%RH or less (no condensation)▪️Clock Backup Battery…Built-in NiMH battery (No replacement required)
▪️Material…PC/ABS resin (blend)
▪️Direct wall outlet connection
▪️Up to 20 combinations possible per week
▪️Timer enabling ON/OFF control of household appliances by day and time
▪️Cannot be used with products consuming 1,500W or more, or products requiring direct wall outlet connection (e.g., air conditioners, heaters).
▪️Equipped with a “countdown function” that turns off the power after the set time
Brand Name: Esco
Manufacturer: CUSTOM, Capacity: 15A or less (1,500W or less), Material: PC/ABS resin (blend)
Model Number: WT-03N, Power Consumption: 1W or less
Size: 62(W)×28(D)×70(H)mm, Clock Accuracy: ±5 seconds/day
Weight: Approx. 95g, Operating Temp/Humidity: 0~+50°C, ≤70%RH (No condensation)
Rated Voltage: AC100V, 50/60Hz, Storage Temp/Humidity: 0~+60°C, ≤80%RH (No condensation)
4548745108941
ESCO AC100V/15A Timer (Repeating) EA763A-16A
(text created at , 2025-05-09)
▪️ Dimensions: 62(W) × 28(D) × 70(H) mm
▪️ Weight: Approx. 95g
▪️ Rated Voltage: AC100V, 50/60Hz
▪️ Capacity: 15A or less (1, 500W or less)
▪️Power Consumption…1W or less▪️Clock Accuracy…±5 seconds/day▪️Timer Settings…20 possible ON/OFF combinations▪️Operating Temp/Humidity…0~+50°C, 70%RH or less (no condensation)▪️Storage Temp/Humidity…0~+60°C, 80%RH or less (no condensation)▪️Clock Backup Battery…Built-in NiMH battery (No replacement required)
▪️Material…PC/ABS resin (blend)
▪️Direct wall outlet connection
▪️Up to 20 combinations possible per week
▪️Timer enabling ON/OFF control of household appliances by day and time
▪️Cannot be used with products consuming 1,500W or more, or products requiring direct wall outlet connection (e.g., air conditioners, heaters).
▪️Equipped with a “countdown function” that turns off the power after the set time
Brand Name: Esco
Manufacturer: CUSTOM, Capacity: 15A or less (1,500W or less), Material: PC/ABS resin (blend)
Model Number: WT-03N, Power Consumption: 1W or less
Size: 62(W)×28(D)×70(H)mm, Clock Accuracy: ±5 seconds/day
Weight: Approx. 95g, Operating Temp/Humidity: 0~+50°C, ≤70%RH (No condensation)
Rated Voltage: AC100V, 50/60Hz, Storage Temp/Humidity: 0~+60°C, ≤80%RH (No condensation)
4548745108941
ESCO AC100V/15A Timer (Repeating) EA763A-16A
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
104x66x220 mm
Package
Weight (Approx.):
Weight (Approx.):
160 g
