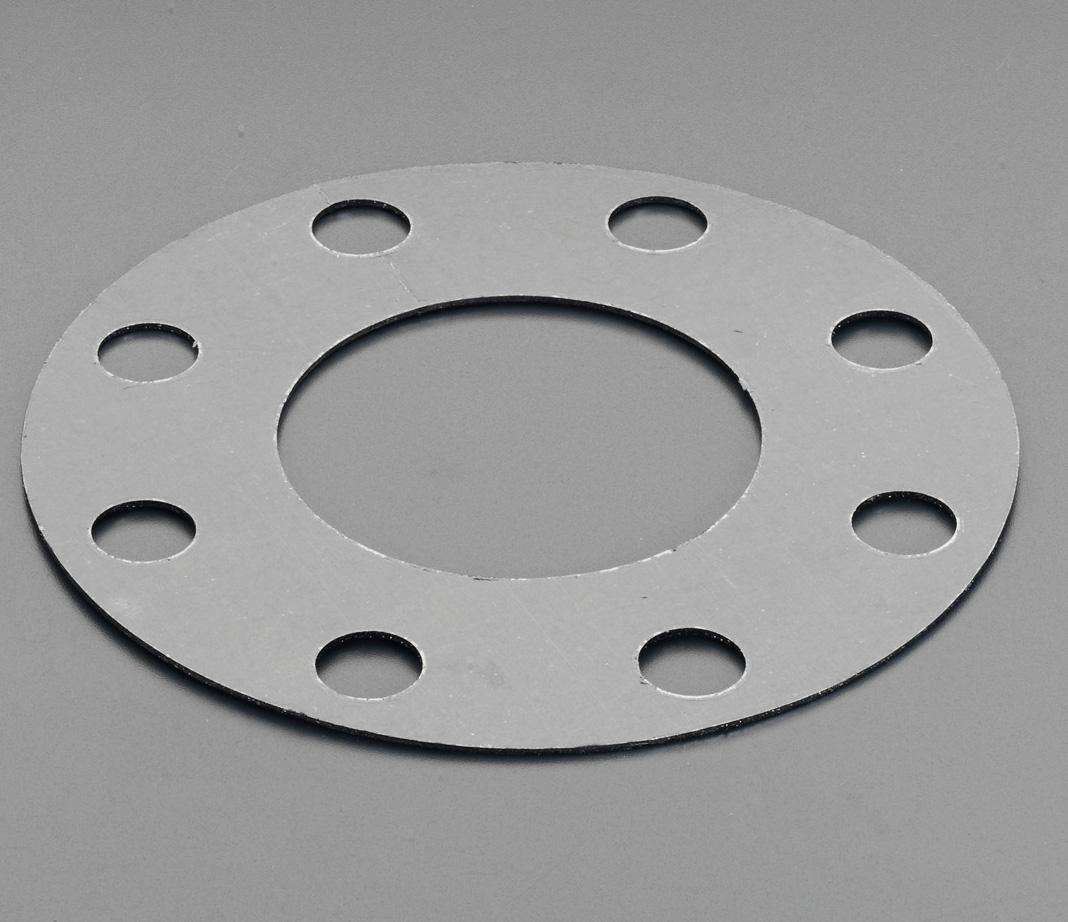

[JIS10K] 125A/3.0mm Full-Face Flange Gasket
JAN
4548745186895
ASIN
B004ORG9L4
Maker
Model No.
EA351DK-125
Color
Size
Description
ESCO-JIS10K-125A-3-0mm Full-Face Flange Gasket-EA351DK-125
General industrial flange gasket, applicable for heat exchangers, etc.
Applicable fluids: Water-based, steam, oil-based, hot air, exhaust gas, etc.
Full-face packing
JIS10K
Pressure limit: 5MPa
Material: SUS316 (flat plate) + expanded graphite + anti-seizing treatment
Operating temperature: -20° oil-based fluids, hot air, exhaust gases, etc.
Full-face packing
JIS 10K
Pressure limit: 5MPa
Material: SUS316 (flat plate) + expanded graphite + anti-seize treatment
Operating temperature range: -240/650°C (up to 420°C in oxidizing atmosphere gases)
This packing resists pressure rupture and significantly reduces sticking to flanges.
Nominal Diameter: 125A
Brand Name: Esco
Material: SUS316 (flat plate) + expanded graphite + anti-seize treatment
For general industrial flange gaskets, heat exchangers, etc.
Applicable Fluids: Water systems, steam, oil systems, hot air, exhaust gas, etc.
Full-Face Packing
JIS 10K
Pressure Limit: 5MPa
4548745186895
[JIS10K]125A/3.0mm Full-Face Flange Gasket
(text created at , 2025-05-12)
General industrial flange gasket, applicable for heat exchangers, etc.
Applicable fluids: Water-based, steam, oil-based, hot air, exhaust gas, etc.
Full-face packing
JIS10K
Pressure limit: 5MPa
Material: SUS316 (flat plate) + expanded graphite + anti-seizing treatment
Operating temperature: -20° oil-based fluids, hot air, exhaust gases, etc.
Full-face packing
JIS 10K
Pressure limit: 5MPa
Material: SUS316 (flat plate) + expanded graphite + anti-seize treatment
Operating temperature range: -240/650°C (up to 420°C in oxidizing atmosphere gases)
This packing resists pressure rupture and significantly reduces sticking to flanges.
Nominal Diameter: 125A
Brand Name: Esco
Material: SUS316 (flat plate) + expanded graphite + anti-seize treatment
For general industrial flange gaskets, heat exchangers, etc.
Applicable Fluids: Water systems, steam, oil systems, hot air, exhaust gas, etc.
Full-Face Packing
JIS 10K
Pressure Limit: 5MPa
4548745186895
[JIS10K]125A/3.0mm Full-Face Flange Gasket
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
5,345 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
