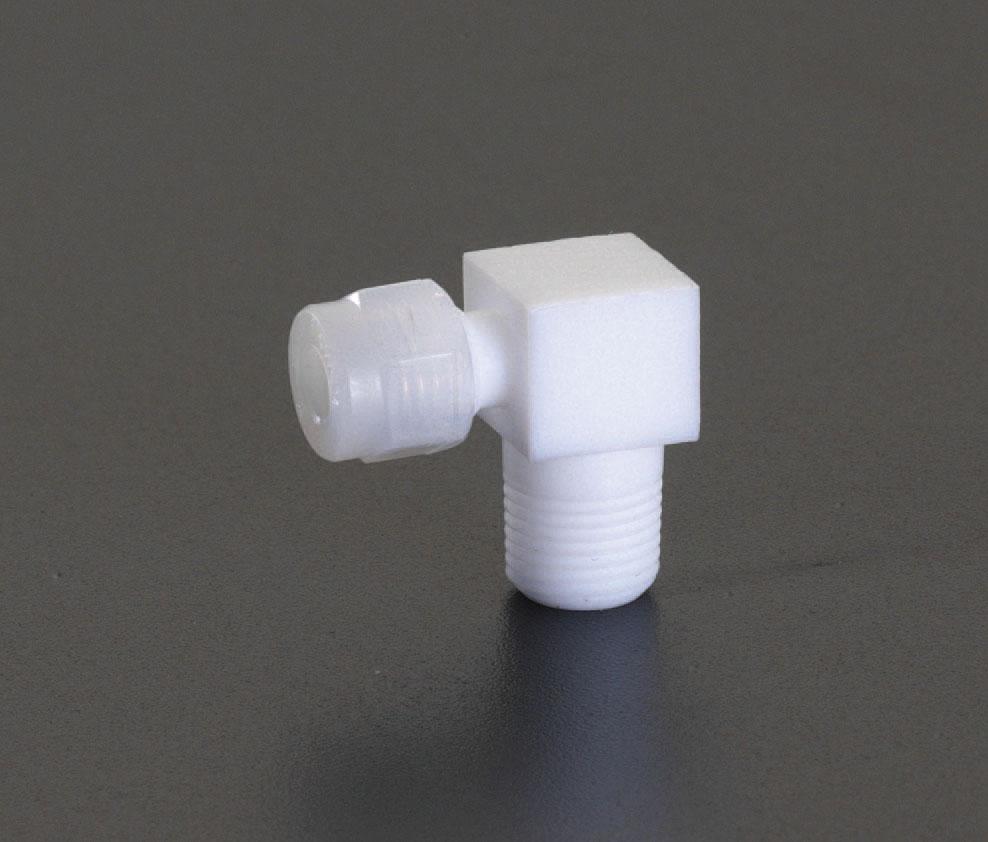

6mm x R1/4" Elbow (Male Thread / Fluoropolymer)
JAN
4548745321432
ASIN
B004OCJU0G
Maker
Model No.
EA425HB-62
Color
Size
R(PT) 1/4"
Description
Brand Name: Esco
Material: Body: Fluoropolymer (PTFE)
Tube Size: 6mm
Thread Size: R(PT) 1/4"
Maximum Pressure (at 23°C): 0.8MPa
Material: Body: Fluoropolymer (PTFE), Nut: Fluoropolymer (ECTFE)
Maximum Operating Temperature: 100℃
Compatible Tubing: PFA/PTFE Teflon Resin Tubing
Chemical Resistance
Easy to install. (Installation possible without special tools, tapered shrink seal method)
4548745321432
“6mm x R1/4” “Elbow (Male Thread / Fluororesin)”
(text created at , 2025-05-10)
Material: Body: Fluoropolymer (PTFE)
Tube Size: 6mm
Thread Size: R(PT) 1/4"
Maximum Pressure (at 23°C): 0.8MPa
Material: Body: Fluoropolymer (PTFE), Nut: Fluoropolymer (ECTFE)
Maximum Operating Temperature: 100℃
Compatible Tubing: PFA/PTFE Teflon Resin Tubing
Chemical Resistance
Easy to install. (Installation possible without special tools, tapered shrink seal method)
4548745321432
“6mm x R1/4” “Elbow (Male Thread / Fluororesin)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,636 JPY (Including Tax)
