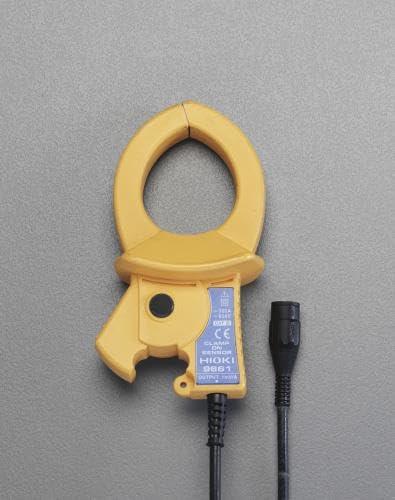

ESCO [EA742GH, EA708BW-1A, -2 compatible] Clamp Sensor EA742HF-2
JAN
4548745367843
ASIN
B004OSMGZQ
Maker
Model No.
EA742HF-2
Color
Size
77 (W) × 42 (D) × 151 (H) mm
Description
Specifications\
\
Rated primary current: AC 500A\
Maximum input current (45/66Hz): 550A continuous\
Output voltage: AC 1mV/A\
Amplitude accuracy (45/66Hz): ±0.3% of reading, ±0.01% full scale\
Measurable Conductor Diameter: 46mm diameter or less\
Dimensions: 77(W) × 42(D) × 151(H) mm\
Weight: 380g\
Cord Length: 3m\
For EA742GH, For EA708BW-1A, -2
Brand Name: Esco
Rated Primary Current: AC 500A
Maximum Input Current (45/66Hz): 550A continuous
Output Voltage: AC 1mV/A
Amplitude Accuracy (45/66Hz): ±0.3% of reading, ±0.01% f.s
Measurable Conductor Diameter: Up to 46mm diameter
Size: 77(W) × 42(D) × 151(H) mm
Weight: 380g
Cord Length: 3m
For EA742GH, EA708BW-1A, -2
4548745367843\ nB004OSMGZQ
ESCO [For EA742GH, EA708BW-1A, -2] Clamp Sensor EA742HF-2
(text created at , 2025-11-12)
\
Rated primary current: AC 500A\
Maximum input current (45/66Hz): 550A continuous\
Output voltage: AC 1mV/A\
Amplitude accuracy (45/66Hz): ±0.3% of reading, ±0.01% full scale\
Measurable Conductor Diameter: 46mm diameter or less\
Dimensions: 77(W) × 42(D) × 151(H) mm\
Weight: 380g\
Cord Length: 3m\
For EA742GH, For EA708BW-1A, -2
Brand Name: Esco
Rated Primary Current: AC 500A
Maximum Input Current (45/66Hz): 550A continuous
Output Voltage: AC 1mV/A
Amplitude Accuracy (45/66Hz): ±0.3% of reading, ±0.01% f.s
Measurable Conductor Diameter: Up to 46mm diameter
Size: 77(W) × 42(D) × 151(H) mm
Weight: 380g
Cord Length: 3m
For EA742GH, EA708BW-1A, -2
4548745367843\ nB004OSMGZQ
ESCO [For EA742GH, EA708BW-1A, -2] Clamp Sensor EA742HF-2
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
39,325 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
