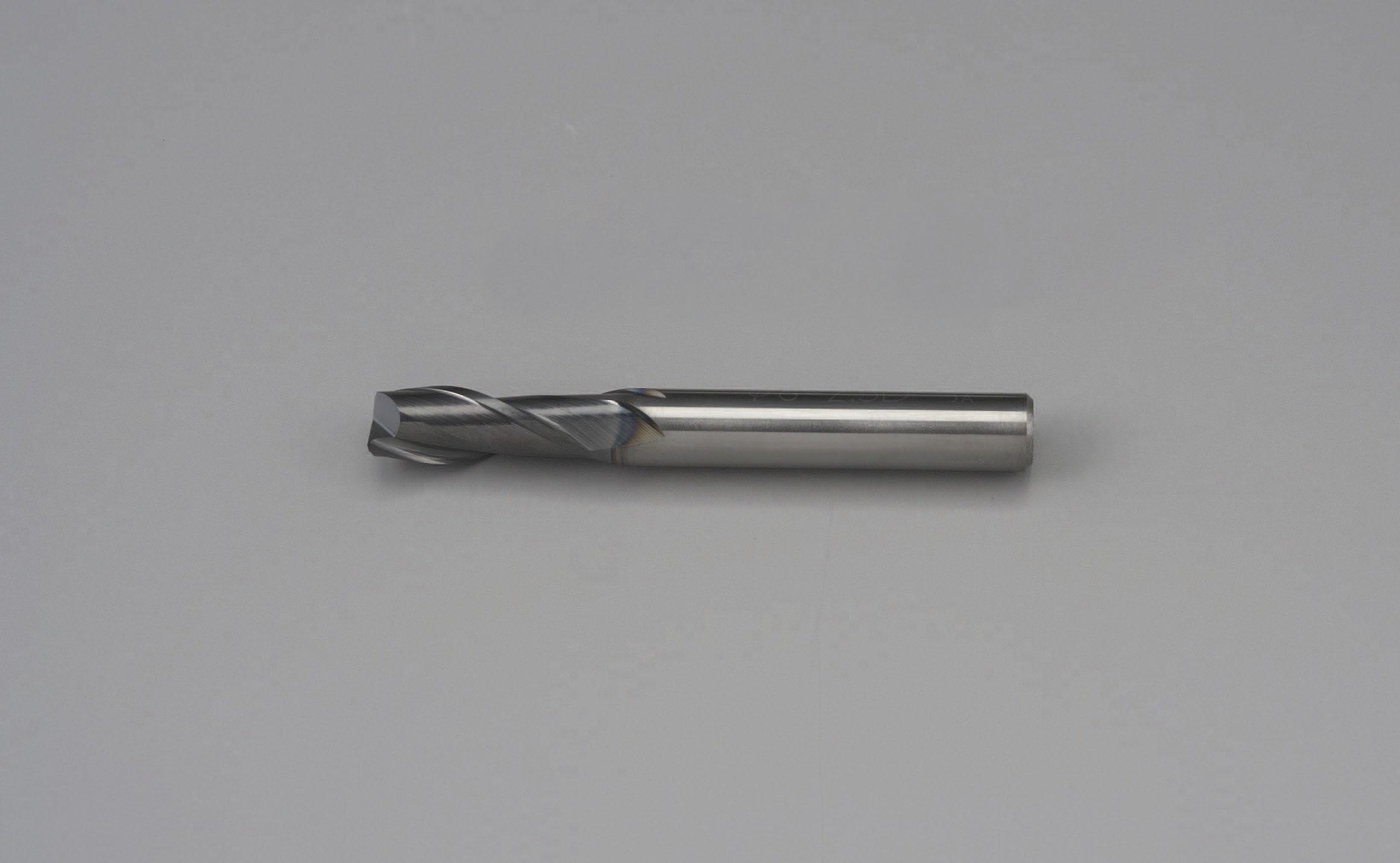

10.0x 70mm End Mill (AlCr coating/Carbide, 2 flutes)

4548745400052

B004OSDO1G

EA824RF-10.0

ESCO - End Mill - AlCrCoat - TiAINCoat - TiNCoat・Co-HSS

Material: Carbide, GS Coating
Cutting Diameter: 10.0mm
Overall Length: 70mm
Cutting Length: 25.0mm
Shank Diameter: 10mm
Workpiece Materials: Low Carbon Steel, Mild Steel, Carbon Steel, Alloy Steel, Pre-hardened Steel, Quenched and Tempered Steel (HRC 30/40), Hardened Steel (HRC40/55), Stainless Steel (SUS304), Heat-Resistant Alloys, Cast Iron
Handles wet machining of raw materials to high-speed dry machining of high-hardness materials.
The cutting edge is a gashland type.
Gashland Type:・Large tool angle provides high cutting edge strength.・Excellent chipping resistance.・A tapered section remains at the machined corner, making it unsuitable for precision finishing.
Brand Name: Esco
Material: Cemented Carbide
Material Composition: Cemented Carbide, GS Coating
Cutting Edge Diameter: 10.0mm
Overall Length: 70mm
Cutting Length: 25.0mm
Shank Diameter: 10mm
4548745400052
10.0x 70mm End Mill (AlCr coat/Cemented Carbide･2-flute)
(text created at , 2025-05-10)

250x100x250 mm

1000 g
