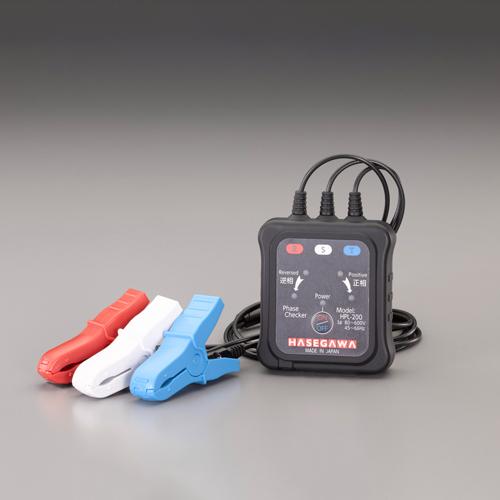

ESCO Phase Tester AC80-600V Three-Phase EA711MH-1

4548745512250

B01B8VR9D0

EA711MH-1

Main unit: 72 (W) × 25.5 (D) × 78 (H) mm, Cable length: 0.8 m

Manufacturer: Hasegawa Electric Industry Model: HPL-200 Applicable Circuit: Three-phase 3-wire and three-phase 4-wire Applicable Voltage Range: AC 80~600V (Sine wave, continuous) Operating Frequency: 50/60Hz Phase Indication: (In-phase): Green LED x2 (Reverse Phase): Red LED x2 + Buzzer Sound: Intermittent Tone (In-Phase): Yellow LED x3 (Flashing) (Out-of-Phase): Yellow LED x3 (Lit) Volume: 50dB or higher (at 50cm distance) Target Wires: IV・DV・OW: 2~100mm² (Finished Diameter: φ2.8~22mm) Power source: 2 AAA alkaline batteries (included)
Continuous operating time: Approx. 15 hours Size: Main unit: 72(W) × 25.5(D) × 78(H) mm, Cable length: Approx. 800 mm Weight: Approx. 190 g (including batteries)
Storage case included
Brand name: Esco
Storage case, 2 AAA alkaline batteries\ Manufacturer: Hasegawa Electric Industry Model: HPL-200 Applicable circuits: Three-phase 3-wire and three-phase 4-wire
Applicable voltage range: AC 80~600V (sine wave, continuous) Operating frequency: 50/60Hz Phase detection display: (In-phase): 2 green LEDs (Reverse Phase): 2 red LEDs + Buzzer Sound: Intermittent tone (In-Phase): 3 yellow LEDs (Flashing) (Out-of-Phase): 3 yellow LEDs (Solid)
Volume: 50dB or higher (at 50cm distance) Applicable Wires: IV･DV･OW: 2~100mm² (Finished Diameter: φ2.8~22mm) Power Supply: 2 AAA Alkaline Batteries (Included)
Continuous Usage Time: Approx. 15 hours Size: Main Unit: 72(W)×25.5(D)×78(H)mm, Cable Length: Approx. 800mm Weight: Approx. 190g (Including Batteries)
Storage Case Included
4548745512250\ nB01B8VR9D0
ESCO Phase Detector AC80-600V Three-Phase EA711MH-1
(text created at , 2025-11-12)

100x60x180 mm

300 g
