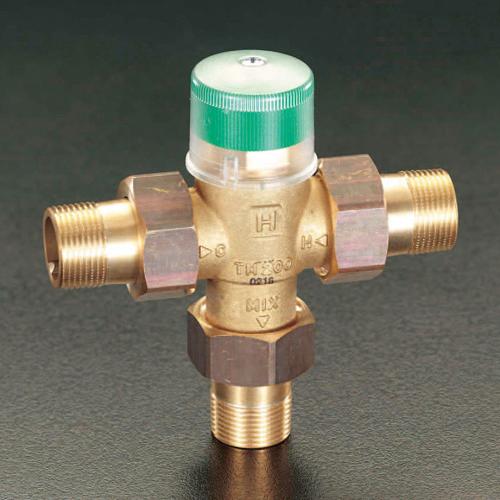

ESCO 3/4 Mixing Valve EA468AF-6
JAN
4548745553246
ASIN
B006Y4BQZY
Maker
Model No.
EA468AF-6
Color
Size
L: 134mm W: 67mm H: 128mm
Description
ESCO-3-4 Mixing Valve-EA468A
For cold and hot water\
Maximum operating temperature/pressure: 90°C/1MPa\
Differential pressure: 0.25MPa\
Set temperature: 30/60°C\
Material: Body: Brass, Temperature Adjustment Knob: High Heat-Resistant Resin\
Body Thread Size: R(PT) 1“\
Thread Size with Nipple Installed: R(PT) 3/4”\\ Dimensions: L: 134mm W: 67mm H: 128mm\
Weight: 880g\
Includes temperature adjustment knob (with scale)\
The body thread size is 1“, but becomes 3/4” when the included nipple is attached. \
The built-in thermoelement automatically determines the mixing ratio of cold and hot water, releasing mixed water at the set temperature.\
Brand Name: Esco\
Nipple\
Material: Body: Brass
For Cold/Hot Water
Maximum Operating Temperature/Pressure: 90°C/1MPa
Differential Pressure: 0.25MPa
Set Temperature: 30/60°C
Material: Body: Brass, Temperature Control Knob: High Heat-Resistant Resin
4548745553246\ nB006Y4BQZY
Esco 3/4 Mixing Valve EA468AF-6
(text created at , 2025-11-12)
For cold and hot water\
Maximum operating temperature/pressure: 90°C/1MPa\
Differential pressure: 0.25MPa\
Set temperature: 30/60°C\
Material: Body: Brass, Temperature Adjustment Knob: High Heat-Resistant Resin\
Body Thread Size: R(PT) 1“\
Thread Size with Nipple Installed: R(PT) 3/4”\\ Dimensions: L: 134mm W: 67mm H: 128mm\
Weight: 880g\
Includes temperature adjustment knob (with scale)\
The body thread size is 1“, but becomes 3/4” when the included nipple is attached. \
The built-in thermoelement automatically determines the mixing ratio of cold and hot water, releasing mixed water at the set temperature.\
Brand Name: Esco\
Nipple\
Material: Body: Brass
For Cold/Hot Water
Maximum Operating Temperature/Pressure: 90°C/1MPa
Differential Pressure: 0.25MPa
Set Temperature: 30/60°C
Material: Body: Brass, Temperature Control Knob: High Heat-Resistant Resin
4548745553246\ nB006Y4BQZY
Esco 3/4 Mixing Valve EA468AF-6
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
117x50x124 mm
Package
Weight (Approx.):
Weight (Approx.):
860 g
64,366 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
