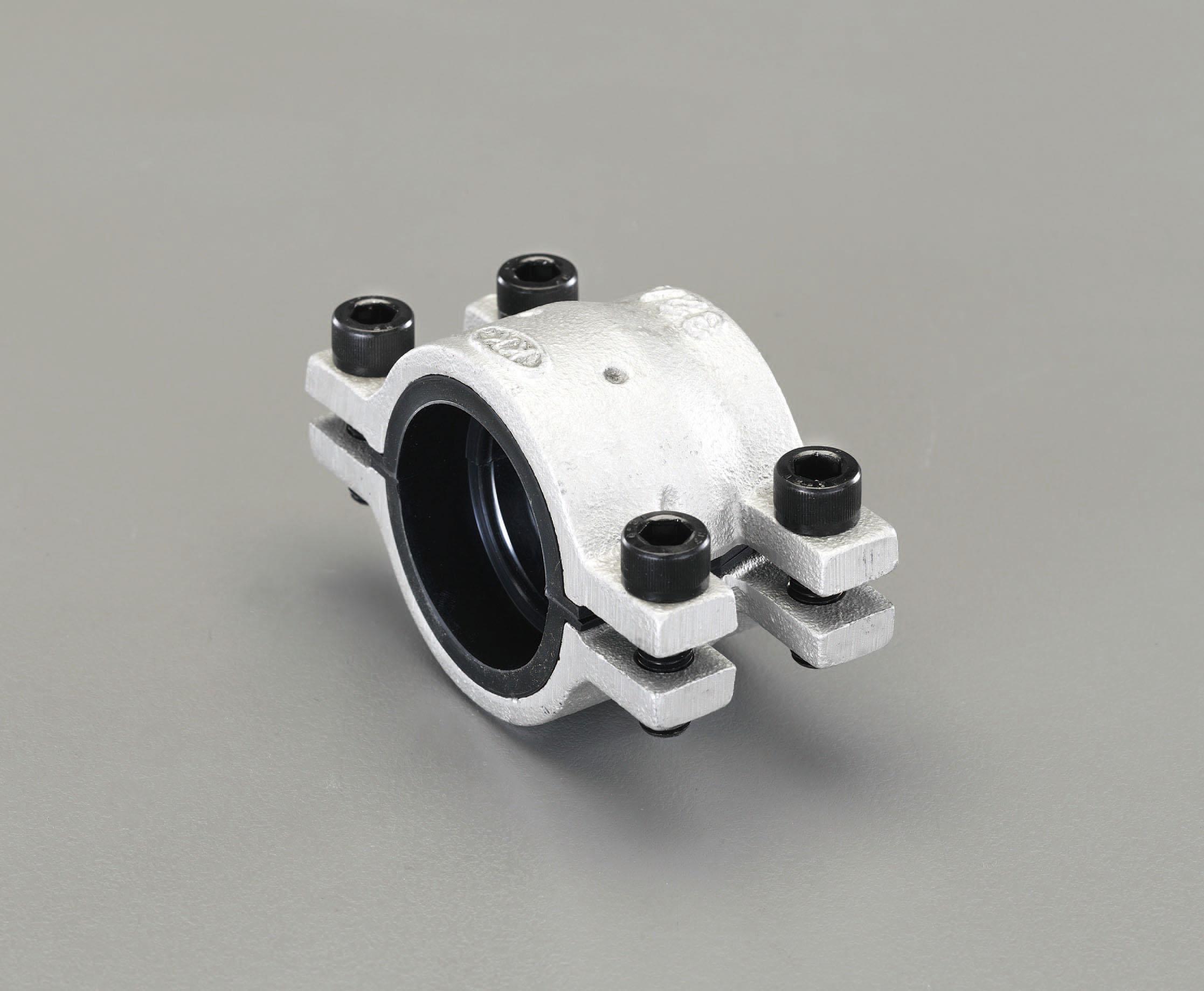

1-1/4" Crimp Socket (for leak prevention)
JAN
4548745574944
ASIN
B006Y49J8A
Maker
Model No.
EA469WA-12
Color
Size
D1: 50mm D2: 71mm_x005f_x000D__x005f_x000D__x005f_x000D_ D3: 43mm D4: 63mm_x005f_x000D__x005f_x0
Description
ESCO - Crimp Socket - Leak-Stop Type
For Fittings and Straight Pipes
Material: Body: Ductile Cast Iron (FCD450), Gasket: Nitrile rubber (with special heat-resistant compound)
Pressure Rating: 2MPa (20kgf/cm2)
Temperature Range: -30℃/130℃
Compatible Fluids: Water, Hot Water, Oil, Steam
Repairs leaks from threaded connections on fittings like tees, elbows, sockets, and pinhole leaks in straight pipe sections.
Ideal for stopping leaks in pipes carrying water, hot water, oil, or steam.
Nominal Diameter: 32 (1-1/4")
Hex Wrench Size: 8mm
Brand Name: Esco
Material: Body: Ductile Cast Iron (FCD450)
For Fittings and Straight Pipes
Material: Body: Ductile Cast Iron (FCD450), Packing: Nitrile rubber (with special heat-resistant compound)
Pressure rating: 2MPa (20kgf/cm2)
Temperature range: -30℃/130℃
Compatible fluids: Water, hot water, oil, steam
4548745574944\ B006Y49J8A
1-1/4 Crimp Socket (Leak-proofing Use)
(text created at , 2025-11-11)
For Fittings and Straight Pipes
Material: Body: Ductile Cast Iron (FCD450), Gasket: Nitrile rubber (with special heat-resistant compound)
Pressure Rating: 2MPa (20kgf/cm2)
Temperature Range: -30℃/130℃
Compatible Fluids: Water, Hot Water, Oil, Steam
Repairs leaks from threaded connections on fittings like tees, elbows, sockets, and pinhole leaks in straight pipe sections.
Ideal for stopping leaks in pipes carrying water, hot water, oil, or steam.
Nominal Diameter: 32 (1-1/4")
Hex Wrench Size: 8mm
Brand Name: Esco
Material: Body: Ductile Cast Iron (FCD450)
For Fittings and Straight Pipes
Material: Body: Ductile Cast Iron (FCD450), Packing: Nitrile rubber (with special heat-resistant compound)
Pressure rating: 2MPa (20kgf/cm2)
Temperature range: -30℃/130℃
Compatible fluids: Water, hot water, oil, steam
4548745574944\ B006Y49J8A
1-1/4 Crimp Socket (Leak-proofing Use)
(text created at , 2025-11-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
11,890 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
